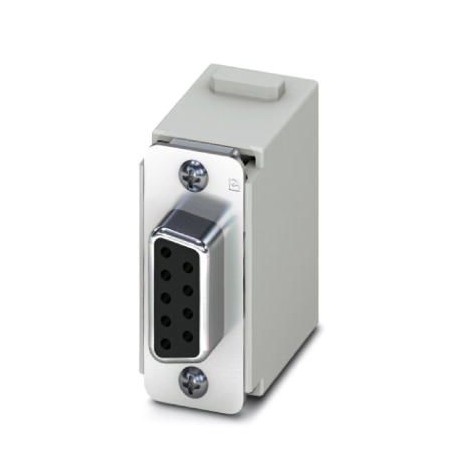

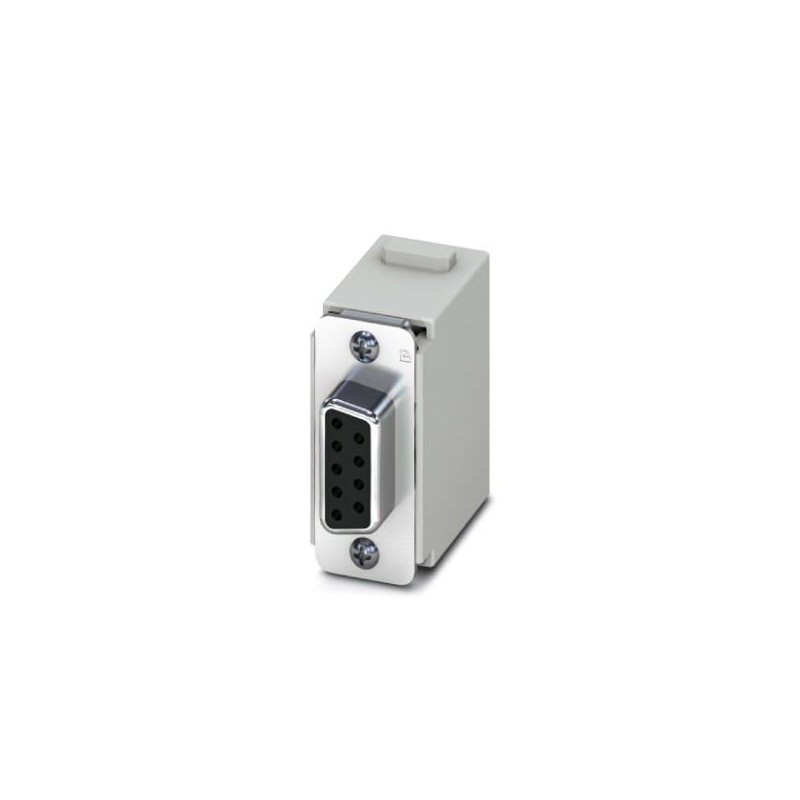

HC-M-DSUB 09-CT-F 1417308 PHOENIX CONTACT Contact insert module
HC-M-DSUB 09-CT-F
1417308
PHOENIX_CONTACT
Contact insert module
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1417308 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 575 (C-2-2017) |
| GTIN | 4055626112503 |
| Weight per Piece (excluding packing) | 35.900 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Electrical characteristics
| Rated voltage (III/3) | 50 V |
|---|---|
| Rated current | 1 A |
| Rated surge voltage | 0.8 kV |
| Connection profile | 9 |
Mechanical characteristics
| Conductor cross section | 0.08 mm² ... 0.5 mm² |
|---|---|
| Connection cross section AWG | 28 ... 20 |
| Stripping length of the individual wire | 4.2 mm |
| Contact diameter | 1 mm |
| Insertion/withdrawal cycles | ≥ 500 |
| Minimum housing height | 52 mm |
General
| Note | For HEAVYCON housing types B6 to B48, HC-M-B... snap-in frames and CUC-DSC-J1BAU-S/DSC.. crimp contacts in accordance with DIN 41652 are required. Crimp contacts are not supplied as standard. |
|---|---|
| Type | D-SUB 9 |
| Series | HC-M-DSUB-C |
| Color | light gray |
| Number of module slots | 1 |
| Connection method | Crimp connection |
| Contact type | turned |
| Flammability rating according to UL 94 | V0 |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Use of HC-CST-MOD (1636127) coding pins and HC-CBU-MOD (1636130) coding sockets has been prescribed. |
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Au |
| Contact carrier material | PC |
| Phase conductor material | Zinc alloy |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
