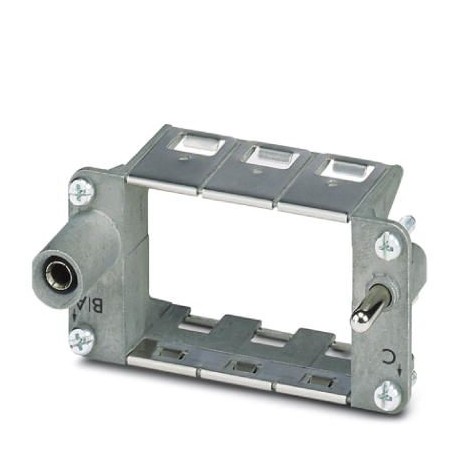

HC-M-B10-MF-H 1417404 PHOENIX CONTACT Module carrier frame
HC-M-B10-MF-H
1417404
PHOENIX_CONTACT
Module carrier frame
Connectors > Module carrier frame for industrial connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1417404 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 584 (C-2-2017) |
| GTIN | 4055626112794 |
| Weight per Piece (excluding packing) | 57.900 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Mechanical characteristics
| Conductor cross section | 4 mm² ... 6 mm² (for PE conductor - power side) |
|---|---|
| 1 mm² ... 2.5 mm² (for PE conductor – control side) | |
| Connection cross section AWG | 12 ... 10 (for PE conductor - power side) |
| 18 ... 14 (for PE conductor – control side) | |
| Insertion/withdrawal cycles | ≥ 500 |
General
| Type | for the sleeve side (A, B, C, ...) |
|---|---|
| Size | B10 |
| Series | HC-M-B |
| Color | silver |
| Number of module slots | 3 |
| Assembly instructions | HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm². |
| Connection | Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
