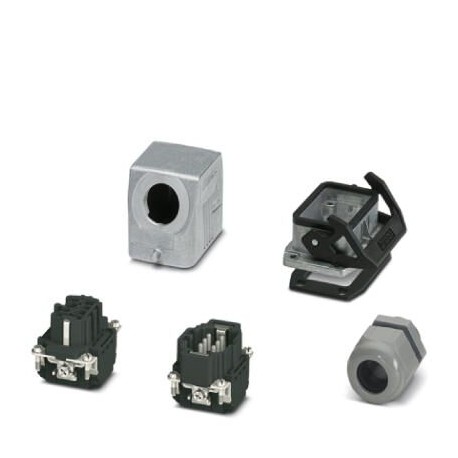

HC-KIT-A-B06-SM0010-EE 1012431 PHOENIX CONTACT Game plug connectors HC-KIT-A-B06-SM0010-EE 1012431
HC-KIT-A-B06-SM0010-EE
1012431
PHOENIX_CONTACT
Game plug connectors - HC-KIT-A-B06-SM0010-EE - 1012431
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info

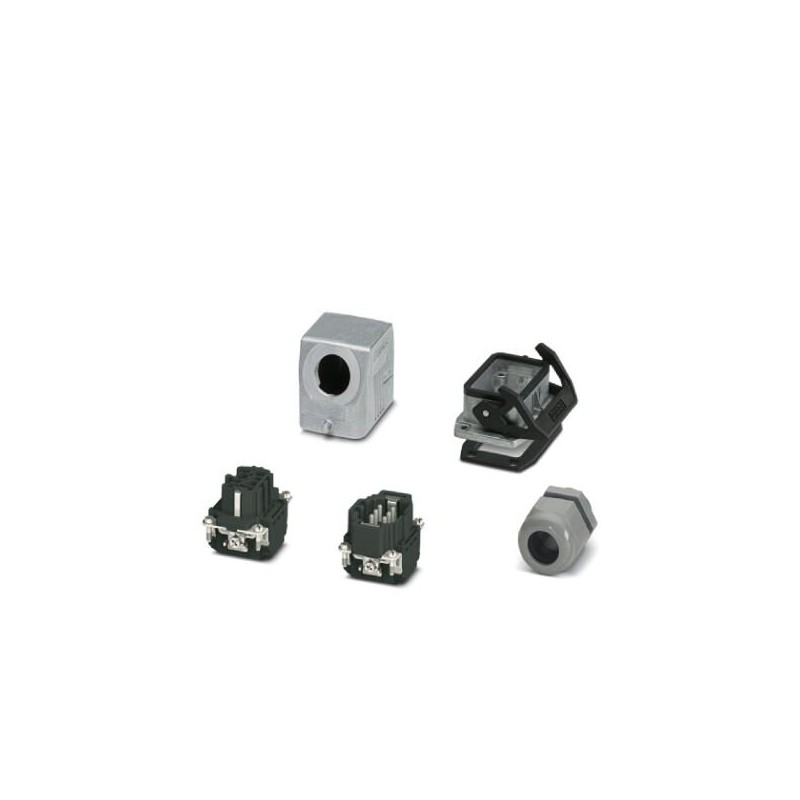

▲Set of plug-in connection comprising: sleeves B6 and housing built-in, connector, 6-pole and insert female, cable gland M20 plastic
Data commercial
| Key order | One million twelve thousand four hundred thirty one |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF7AFX - |
| EAN | Four trillion fifty five billion six hundred twenty six million four hundred ninety thousand one hundred six |
| Unit weight (excluding packaging) | 334,000 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
Overview
| N. º poles | 6+PE |
|---|---|
| Construction | B6 |
| Tension sizing | 500 V |
| Rated | 16 To |
| Type of connection | Connection by screw |
| Output cables | side |
| Degree of casing protection | IP65 |
| IP65 | |
| Connection technique | Connection by screw |
| Tension and sizing (III/3) | 500 V |
| Transient voltage design | 6 kV |
| Rated | 16 To |
| Connection section | 0.5 mm2 ... 2.5 mm2 (valid for flexible conductors with toe cap) |
| Connection section AWG | 20 ... 14 |
| Room temperature (service) | -40 °C ... 125 °C |
| Material housing | Die-castings of aluminum, resistant to sea water |
| Material support of contacts | PC |
| Material-locking flange | PA |
| Protective cover integrated | not |
Standards and specifications
| Class of flammability according to UL 94 | V0 |
|---|
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand one hundred one |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand one hundred one |
ETIM
| ETIM 6.0 | EC002636 |
|---|---|
| ETIM 7.0 | EC002636 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
