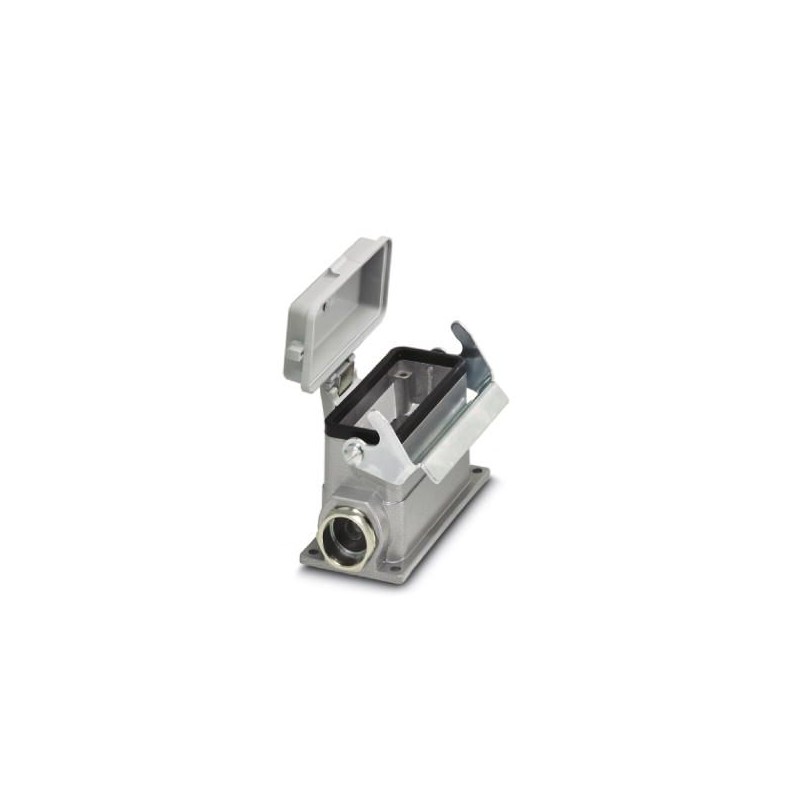

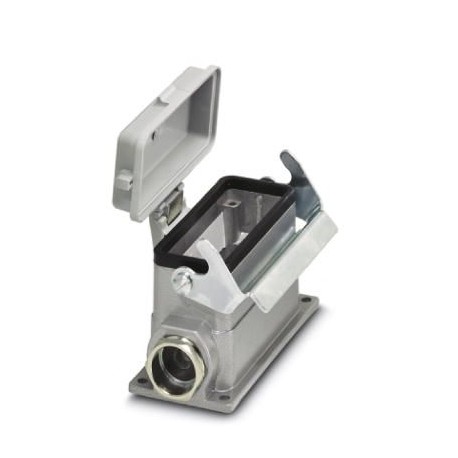

HC-HV 6-SMLD-67/M1PG21 1773828 PHOENIX CONTACT Housing, socket, flanged longitudinal, height 67 mm, with cab..
HC-HV 6-SMLD-67/M1PG21
1773828
PHOENIX_CONTACT
Housing, socket, flanged longitudinal, height 67 mm, with cable gland, 1x Pg21, with protective cover
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | One million seven hundred seventy three thousand eight hundred twenty eight |
|---|---|
| Packing unit | 5 pcs |
| Key selling | BF7AAB - |
| Catalog page | Page 247 (PC_2005) |
| EAN | Four trillion seventeen billion nine hundred eighteen million one hundred fifteen thousand six hundred nine |
| Unit weight (excluding packaging) | 449,540 g |
| Tariff number tariff | Eighty five million three hundred eighty nine thousand ninety nine |
| Country of origin | (Germany) |
Measures
| Height | 67 mm |
|---|---|
| Width | 57 mm |
| Length | 117 mm |
| Width between sides-union Nut | 28 mm |
| Outer diameter of cable | 10 mm ... 19 mm |
Environmental conditions
| Protection type housing (IP) | IP65 (In plugged in) |
|---|---|
| IP54 (with protective cap closed) | |
| Room temperature (service) | -40 °C ... 125 °C |
Overview
| Observation | for inserts of contacts HV-HV6 |
|---|---|
| Size | HV6 |
| Type of housing | Housing socket |
| Lock system | with flange longitudinal |
| Number of outputs cable | One |
| Output cables | left (view in the flange longitudinal open) |
| Connection by screw | with |
| Kind of screwed | 1x Pg21 |
| Protective cap | yes |
| Material housing | Die-castings of aluminum |
| Material surface of the housing | Powder-coated, gray |
| Material board | NBR |
| Material fastening | Brass, nickel-plated |
| Material Gasket for cables | NBR |
| Material Lock | Stainless steel |
| Material body grip lock | PA-GF |
| Material protective cap | PA |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss 4.0Twenty seven million one hundred forty thousand eight hundred sixteeneCl@ss 4.1Twenty seven million one hundred forty thousand eight hundred sixteeneCl@ss 5.0Twenty seven million one hundred forty three thousand four hundred twenty foureCl@ss 5.1Twenty seven million two hundred sixty one thousand two hundredeCl@ss 6.0Twenty seven million two hundred sixty one thousand two hundredeCl@ss 7.0Twenty seven million four hundred forty thousand two hundred twoeCl@ss 8.0Twenty seven million four hundred forty thousand two hundred twoeCl@ss 9.0Twenty seven million four hundred forty thousand two hundred two
UNSPSC 6.01Thirty one million two hundred sixty one thousand five hundred twoUNSPSC 7.0901Thirty one million two hundred sixty one thousand five hundred twoUNSPSC 11Thirty one million two hundred sixty one thousand five hundred twoUNSPSC 12.01Thirty one million two hundred sixty one thousand five hundred twoUNSPSC 13.2Thirty one million two hundred sixty one thousand five hundred one
