HC-HV 3-SMLD-52/M2PG16
1773637
PHOENIX_CONTACT
1

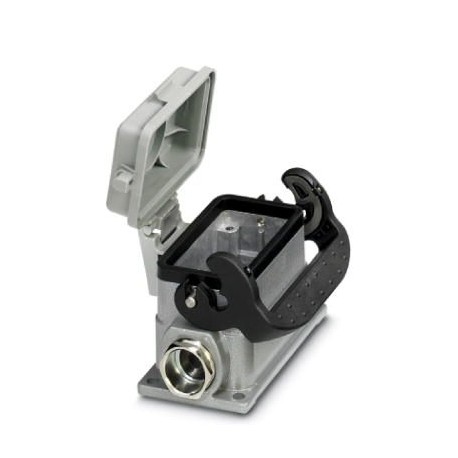

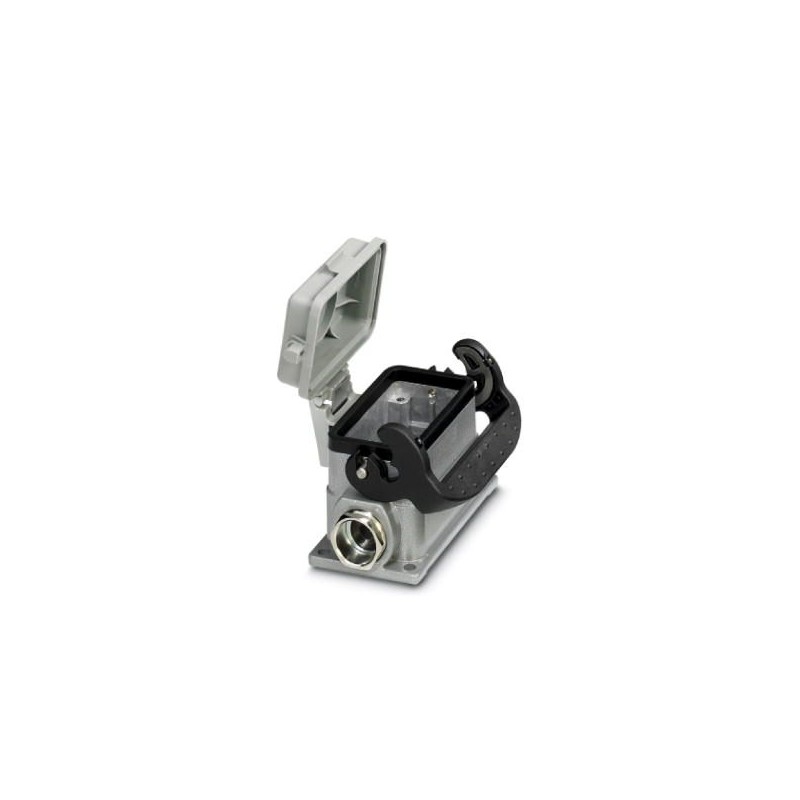

Housing, socket, flanged longitudinal, height 52 mm with cable gland, 2x Pg29, with protective cap
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Key order | One million seven hundred seventy three thousand six hundred thirty seven |
---|---|
Packing unit | 10 pcs |
Key selling | BF7AAB - |
Catalog page | Page 245 (PC_2005) |
EAN | Four trillion seventeen billion nine hundred eighteen million one hundred fifteen thousand seven hundred ninety one |
Unit weight (excluding packaging) | 288,310 g |
Tariff number tariff | Eighty five million three hundred eighty nine thousand ninety nine |
Country of origin | (Germany) |
Height | 52 mm |
---|---|
Width | 52 mm |
Length | 93 mm |
Width between sides-union Nut | 22 mm |
Outer diameter of cable | 7.5 mm ... 15 mm |
Protection type housing (IP) | IP65 (In plugged in) |
---|---|
IP54 (with protective cap closed) | |
Room temperature (service) | -40 °C ... 125 °C |
Observation | for inserts of contacts HV-HV3 |
---|---|
Size | HV3 |
Type of housing | Housing socket |
Lock system | with flange longitudinal |
Number of outputs cable | Two |
Output cables | side |
Connection by screw | with |
Kind of screwed | 2x Pg16 |
Protective cap | yes |
Material housing | Die-castings of aluminum |
Material surface of the housing | Powder-coated, gray |
Material board | NBR |
Material fastening | Brass, nickel-plated |
Material Gasket for cables | NBR |
Material Lock | Stainless steel |
Material body grip lock | PA-GF |
Material protective cap | PA |
China RoHS | Space of time for the intended use: unlimited = FEUP-e |
---|---|
No dangerous substances above the thresholds |
