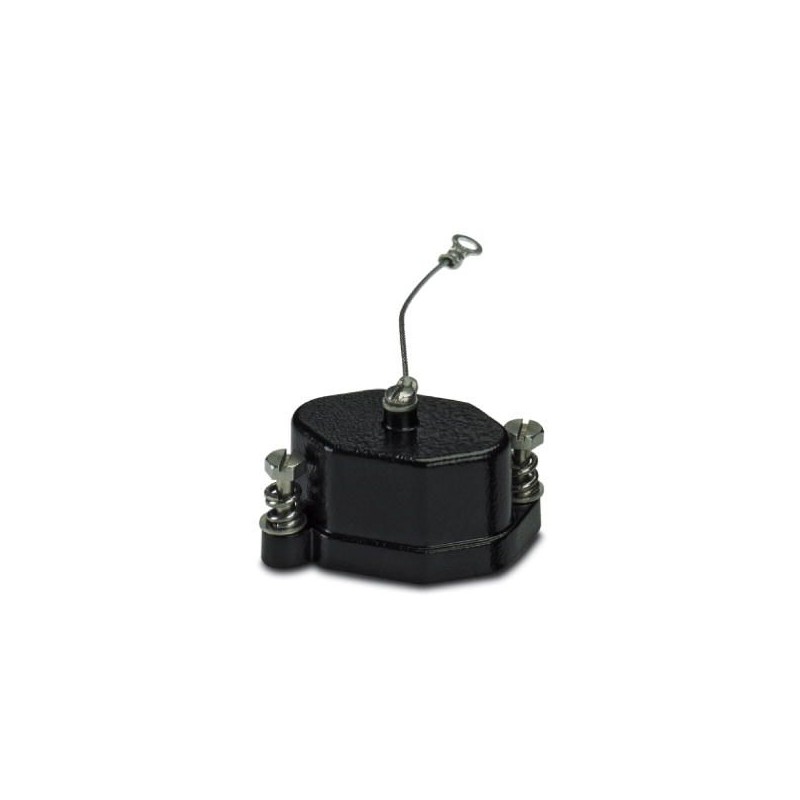

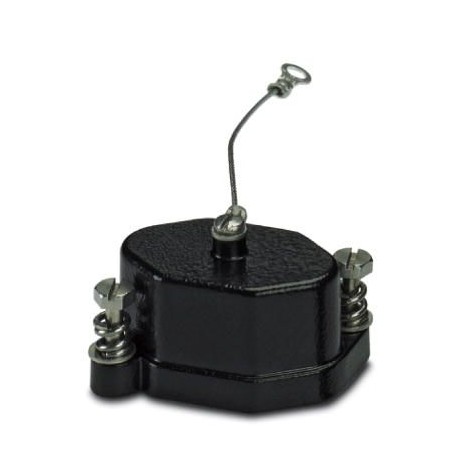

HC-HPR-D07-BCSWH-EM-BK 1424636 PHOENIX CONTACT Protective covers
HC-HPR-D07-BCSWH-EM-BK
1424636
PHOENIX_CONTACT
Protective covers
D7 Protective Cap, with Screw Lock, Material: Zinc Die-Cast, Protective Cap Material: Zinc, Height: 28.5 mm, Cable Gland: Without, Railway Applications, High EMC and Environmental Requirements, HPR Series
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424636 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626375656 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 (with sealing screw) |
|---|---|
| IP68 (0.4 bar / 30 min. with sealing screw) | |
| IP69K (ISO 20653:2013-02) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | for contact insertsHC-D7, D8, A3, A4, HS2-D7,Q5, Q7, Q12 |
|---|---|
| Size | D7 |
| Housing type | Protective cover |
| Color | black |
| Locking type | with screw locking |
| Torque | 1 Nm (Locking screw) |
| Screw connection | none |
| Material | Zinc die-cast |
| Housing material | Zinc die-cast |
| Housing surface material | Powder-coated, black |
| Material lock | Stainless steel |
| Material of locking screw | Stainless steel |
| Material, protective cover | Zinc |
| Assembly instructions | M4 locking screw, slotted hexagon head screw (wrench size 7), tightening torque: 1 Nm. The seal of the pin contact insert should be removed. Max. thread length of the screw connection: 6 mm |
| Connection | Mount contact insert with sealing screw in the housing |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of locking (EF000208) | Other |
| With sealing (EF005610) | No |
| With captivity element (EF012222) | No |
| Colour (EF000007) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
| Ambient temperature (EF002386) | 125 °C |
| Degree of protection (IP), mounted (EF007466) | IP66 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
