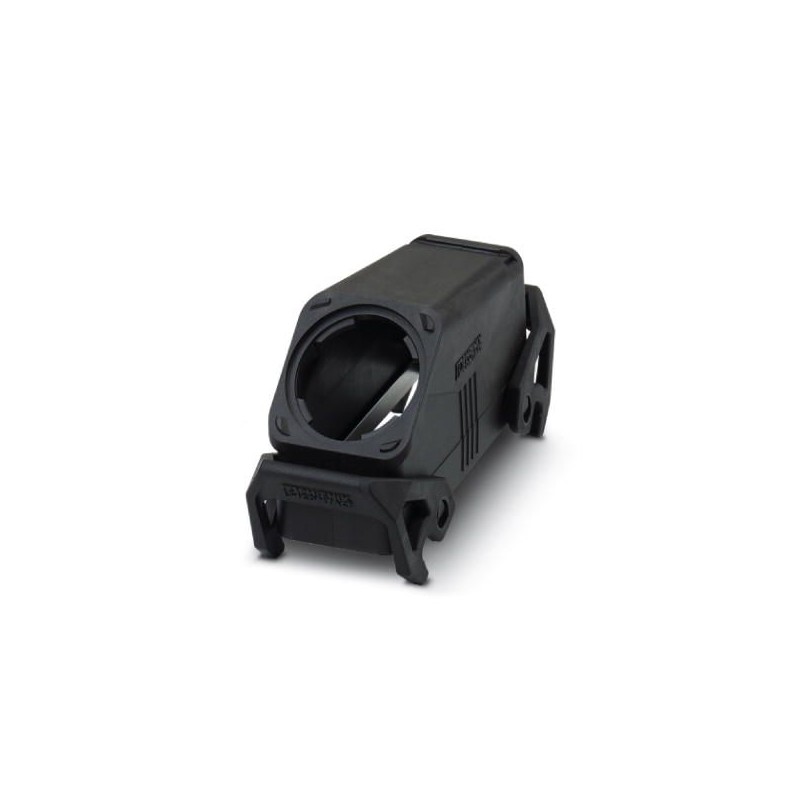

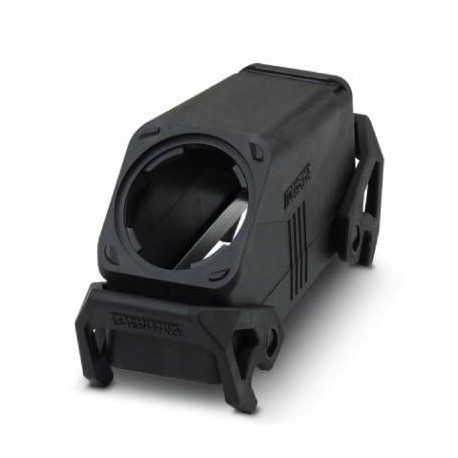

HC-EVO-B24-HLWD-PLBK 1420936 PHOENIX CONTACT Housing
HC-EVO-B24-HLWD-PLBK
1420936
PHOENIX_CONTACT
Housing
B24 aerial housing, with cross flange, material: PA, cable outlets: 1, straight/side, height: 63 mm, cable gland: without, Standard
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1420936 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 630 (C-2-2017) |
| GTIN | 4055626249353 |
| Weight per Piece (excluding packing) | 138.000 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Degree of protection (NEMA) | 12 (UL 50e) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | for contact inserts HC-B24, BB46, D64, DD108, M, K, HV10 |
|---|---|
| Size | B24 |
| Housing type | Sleeve housing |
| Color | black |
| Locking type | with double locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| lateral | |
| Screw connection | none |
| Housing material | PA |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 |
| Connection | The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in four sizes. It facilitates the creation of a straight or a side cable outlet. The EVO screw connection is mounted with the aid of, for example, a pipe wrench |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 43.8 mm |
| Height (EF000040) | 63 mm |
| Depth (EF000049) | 120 mm |
| Type of housing (EF006980) | Plug case |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Bayonet |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | No |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Double locking levers |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK09 |
