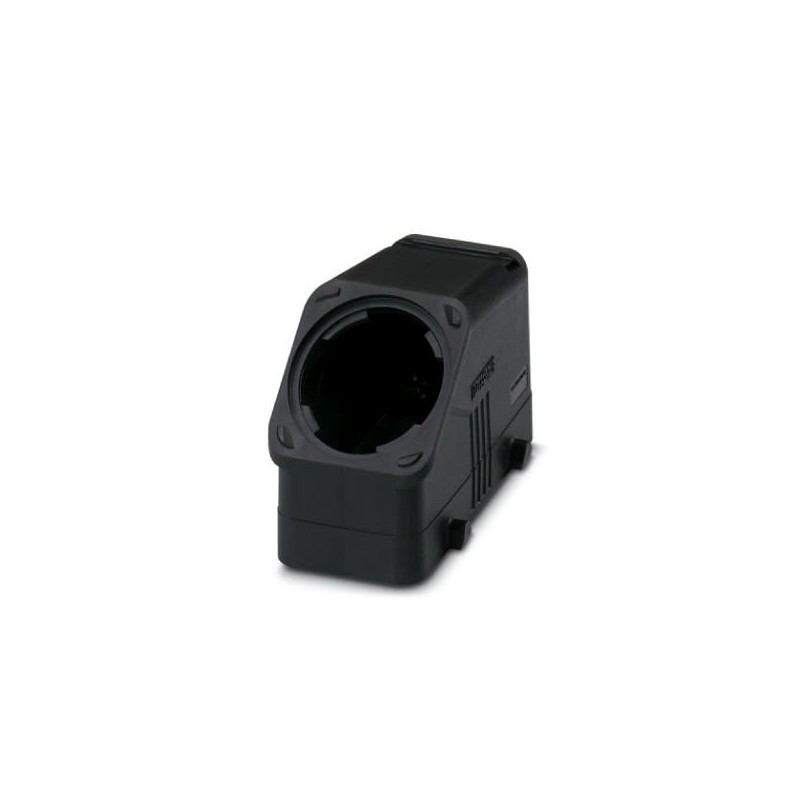

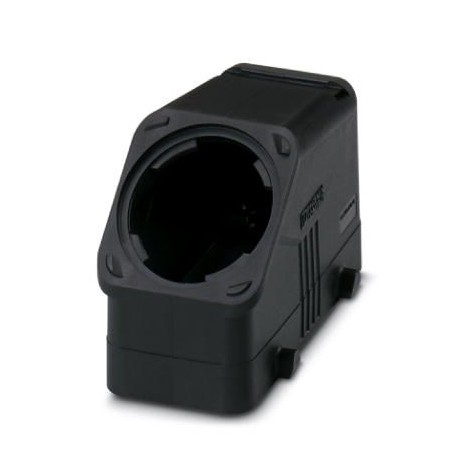

HC-EVO-B16-HLFD-PLBK 1420932 PHOENIX CONTACT Housing
HC-EVO-B16-HLFD-PLBK
1420932
PHOENIX_CONTACT
Housing
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1420932 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 612 (C-2-2017) |
| GTIN | 4055626249315 |
| Weight per Piece (excluding packing) | 86.710 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Degree of protection (NEMA) | 12 (UL 50e) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K |
|---|---|
| Size | B16 |
| Housing type | Sleeve housing |
| Color | black |
| Locking type | for double locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| lateral | |
| Screw connection | none |
| Housing material | PA |
| Flammability rating according to UL 94 | V0 |
| Connection | The sleeve base housing must be supplemented with the EVO screw connection. The EVO screw connection is available in 4 sizes. It enables the creation of a straight or a lateral cable outlet. The EVO screw connection is assembled by hand or using a pipe wrench. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
