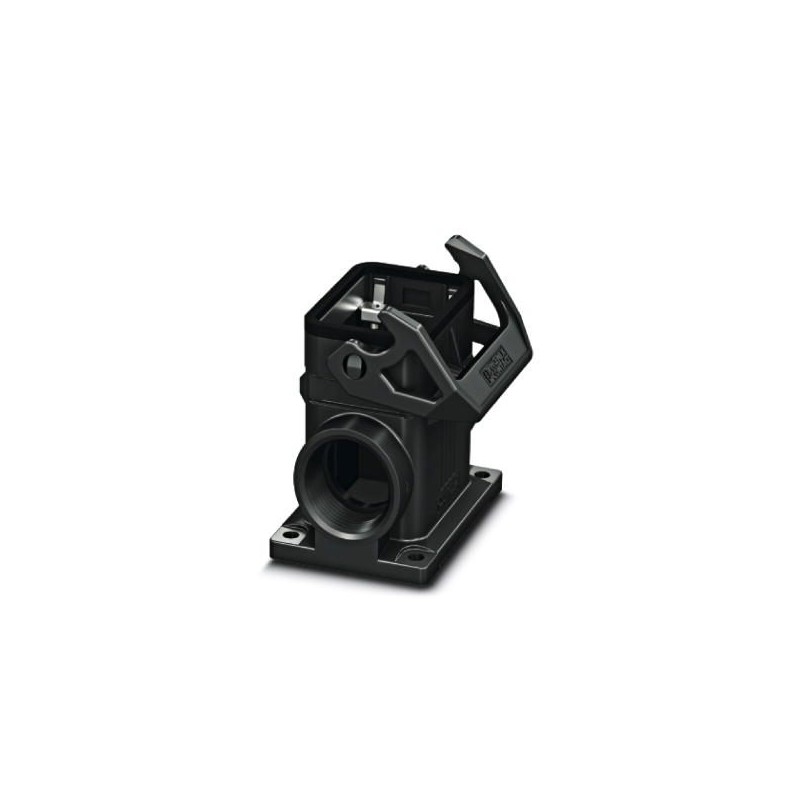

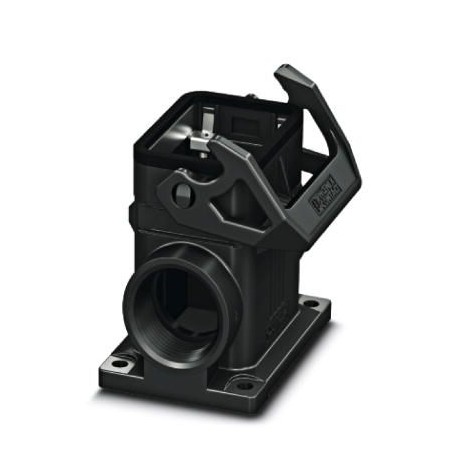

HC-EVO-B06-SHWS-2SSM20-PLRBK 1421322 PHOENIX CONTACT Housing
HC-EVO-B06-SHWS-2SSM20-PLRBK
1421322
PHOENIX_CONTACT
Housing
B6 socket housing, with longitudinal flange, material: PA, cable outlets: 2, side, 2x M20, height: 74 mm, cable gland: without, Standard, including 2x reduction adapters
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1421322 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 588 (C-2-2017) |
| GTIN | 4055626264844 |
| Weight per Piece (excluding packing) | 152.400 g |
| Custom tariff number | 85389099 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection of housing (IP) | IP66 |
|---|---|
| Degree of protection of housing (NEMA) | 12 (UL 50e) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B6, BB10, DD24, M |
|---|---|
| Size | B6 |
| Housing type | Box mounting bases |
| Color | black |
| Locking type | with single locking latch |
| No. of cable outlets | 2 |
| Cable outlet | lateral |
| Screw connection | none |
| Type of the screw connection | 2x M20 |
| Housing material | PA |
| Seal material | NBR |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 |
| Assembly instructions | Two plastic reductions M32 to M20 are provided |
| Connection | One of the two openings for the screw connections is sealed but can be broken open using a screwdriver. |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 57 mm |
| Height (EF000040) | 74 mm |
| Depth (EF000049) | 84 mm |
| Type of housing (EF006980) | Socket case |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Black |
| Position cable feed (EF008218) | Sideways |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Metric |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 2 |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | No |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK08 |
