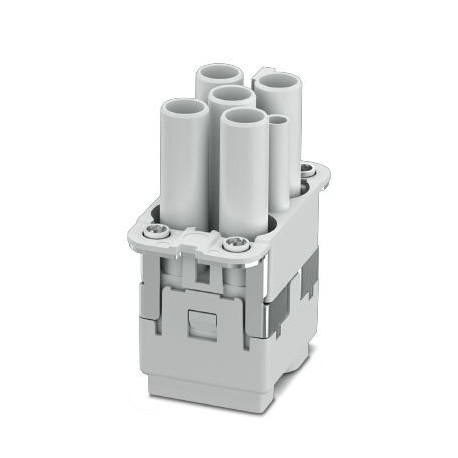

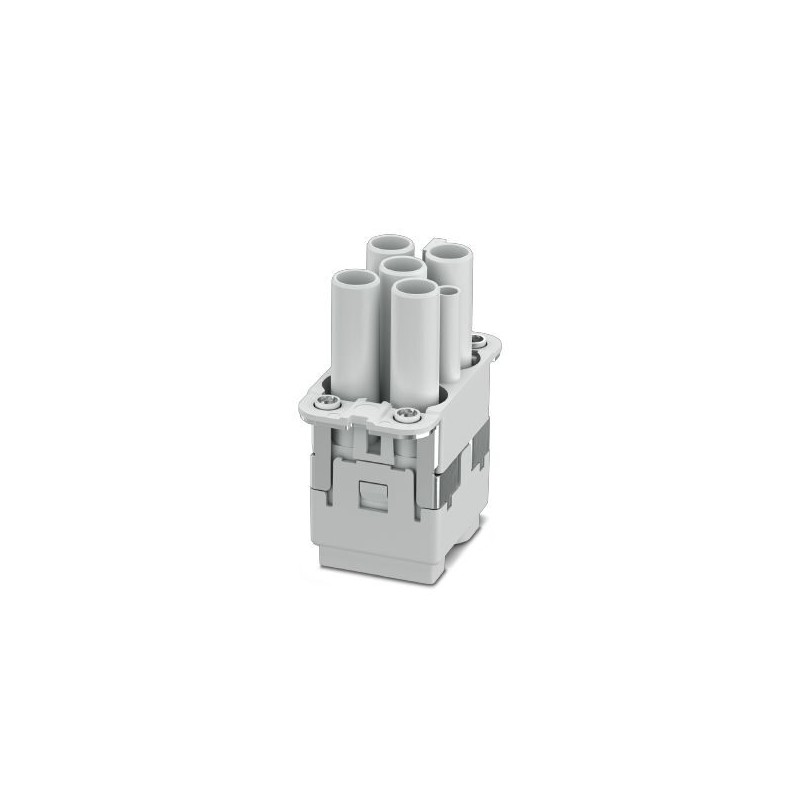

HC-COM-Q4/2-I-CT-F 1079556 PHOENIX CONTACT HEAVYCON crimp contact insert for compact plastic housing, socket..
HC-COM-Q4/2-I-CT-F
1079556
PHOENIX_CONTACT
HEAVYCON crimp contact insert for compact plastic housing, socket version; 4-pos. + PE supply circuit, 2-pos. control circuit
Contact insert, number of poles: 4+2+PE, size: COM, power contacts: 4, control contacts: 2, number of connections per pole: 1, Female, Crimped connection, 400 V, 40 A, 1.5 mm² ... 6 mm², application: Power/signal
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1079556 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 651 (C-2-2019) |
| GTIN | 4055626800349 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
General
| Note | Connectors may be operated only when there is no load/voltage. |
|---|---|
| Connection method | Crimp connection (power contacts) |
| Crimp connection (control contacts) | |
| Crimp connection (PE contact) | |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Number of positions | 4+2+PE |
| No. of power contacts | 4 |
| No. of control contacts | 2 |
| Insertion/withdrawal cycles | ≥ 500 |
| Size | COM |
| Contact numbering | 1 - 4 |
| Conductor cross section | 1.5 mm² ... 6 mm² (power contacts) |
| 0.14 mm² ... 2.5 mm² (control contacts) | |
| Connection cross section AWG | 16 ... 10 (power contacts) |
| 26 ... 14 (control contacts) | |
| Stripping length of the individual wire | 9 mm (for 1.5 ... 2.5 mm²) |
| 9.6 mm (4 mm² - 6 mm² control circuit) | |
| 8 mm (Control circuit) | |
| 6 mm (2.5 mm² control circuit) | |
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
|---|
Material data
| Contact material | Copper alloy |
|---|---|
| Contact surface material | Ag (alternatively Au) |
| Material of contact surface, power contact | Ag |
| Material of contact surface, control contact | Ag (alternatively Au) |
| Contact carrier material | PC |
Electrical characteristics
| Rated voltage for power contacts | 400/690 V |
|---|---|
| Rated voltage (III/3) | 400 V (Phase-ground power contacts) |
| 250 V (control contacts) | |
| 690 V (Phase-phase power contacts) | |
| Rated surge voltage | 6 kV (Phase-phase power contacts) |
| 4 kV (control contacts) | |
| Rated current | 40 A (power contacts) |
| 10 A (control contacts) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 4 |
| Number of control contacts (EF012217) | 2 |
| Contact insert without contacts (EF007324) | Yes |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 6 |
| Diameter plug-in contact (EF007320) | 4 mm |
| Material connector insert (EF007545) | Thermoplastic |
| Rated current In (EF008250) | 40 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Crimp connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 1.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Material of contact surface (EF004020) | Other |
| Material of contact insert (EF008521) | Thermoplastic |
| Material contact (EF007544) | Other copper alloys |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 22.4 mm |
| Height (EF000040) | 44.1 mm |
| Depth (EF000049) | 41.6 mm |
