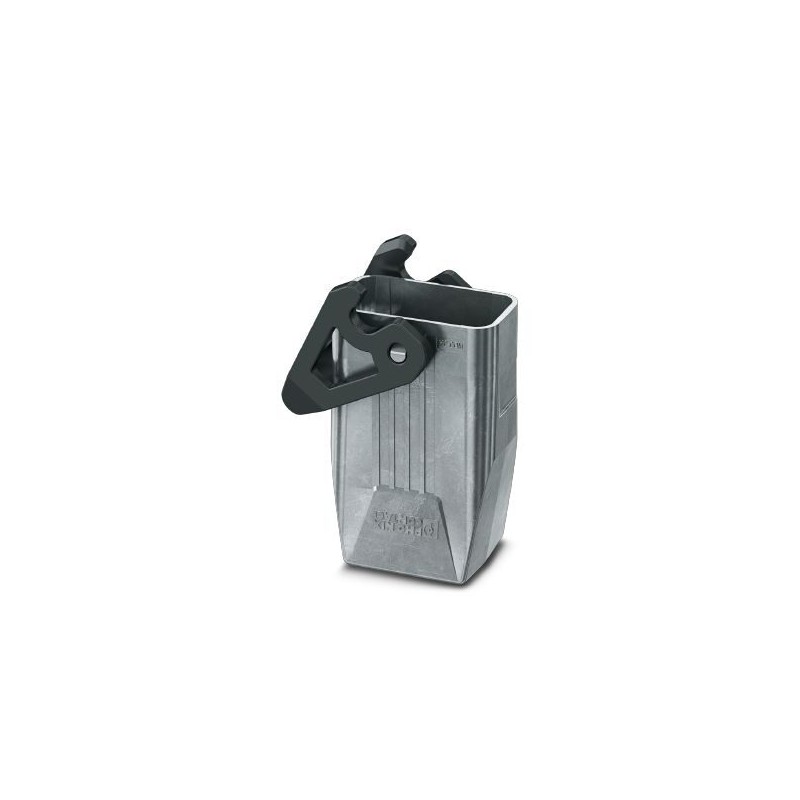

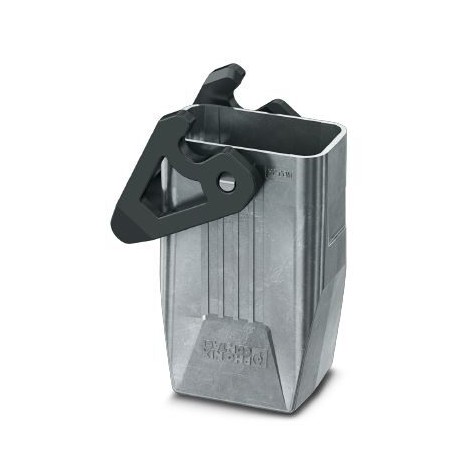

HC-COM-CHWS-1TTM25-EL-AL 1078595 PHOENIX CONTACT Coupling housings COM, with single locking latch, material:..
HC-COM-CHWS-1TTM25-EL-AL
1078595
PHOENIX_CONTACT
Coupling housings COM, with single locking latch, material: Die-cast aluminum, salt water resistant, cable outlets: 1, straight, height: 68 mm, cable gland: none, support sleeve: no, 1x M25, Standard
COM coupling housing, with longitudinal flange, material: Die-cast aluminum, seawater resistant, cable outlets: 1, straight, 1x M25, height: 68 mm, cable gland: without, Standard
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1078595 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 653 (C-2-2019) |
| GTIN | 4055626794136 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85389099 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Size | COM |
|---|---|
| Housing type | Coupling housings |
| Color | gray aluminum |
| Locking type | with single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | straight |
| Screw connection | none |
| Type of the screw connection | 1x M25 |
| Housing material | Die-cast aluminum, salt water resistant |
| Material lock | PA |
| Flammability rating according to UL 94 | V0 |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440202 |
|---|---|
| eCl@ss 4.0 | 27140816 |
| eCl@ss 4.1 | 27140816 |
| eCl@ss 5.0 | 27143424 |
| eCl@ss 5.1 | 27261200 |
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440202 |
| eCl@ss 8.0 | 27440202 |
| eCl@ss 9.0 | 27440202 |
UNSPSC
| UNSPSC 6.01 | 31261502 |
|---|---|
| UNSPSC 7.0901 | 31261502 |
| UNSPSC 11 | 31261502 |
| UNSPSC 12.01 | 31261502 |
| UNSPSC 13.2 | 31261501 |
| UNSPSC 18.0 | 31261501 |
| UNSPSC 19.0 | 31261501 |
| UNSPSC 20.0 | 31261501 |
| UNSPSC 21.0 | 31261501 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 39 mm |
| Height (EF000040) | 68 mm |
| Depth (EF000049) | 48.8 mm |
| Type of housing (EF006980) | Coupling housing |
| Housing material (EF001596) | Aluminium |
| Coating housing (EF001601) | Other |
| Housing colour (EF000136) | Other |
| Position cable feed (EF008218) | Other |
| Position of the shackle (EF008459) | Cover |
| With cable screw gland (EF000735) | No |
| Mounting method of the cable gland (EF012210) | Metric |
| With hinged lid (EF000117) | No |
| With distance piece (EF005072) | No |
| With sealing (EF005610) | Yes |
| Number of conduit inlets (EF000437) | 1 |
| Type of locking (EF000208) | Single locking lever |
| Operating temperature (EF002393) | -40 °C |
| EMC-version (EF001062) | Yes |
| Degree of protection (IP), mounted (EF007466) | IP66 |
| Impact strength (EF004293) | IK06 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
