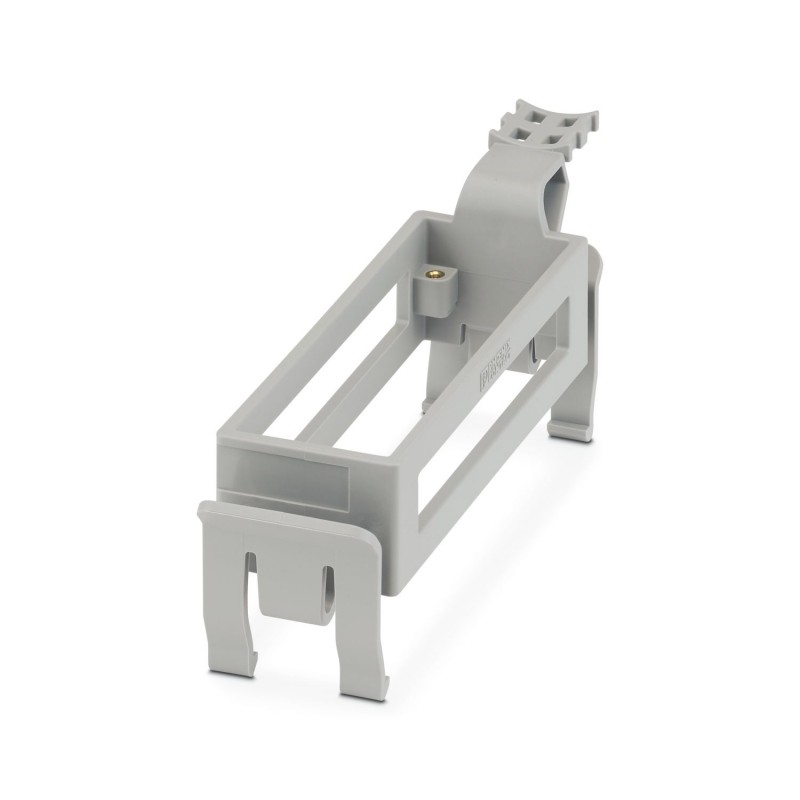

HC-CIF-B24-HFWL-PL 1424337 PHOENIX CONTACT DIN rail mounting frame
HC-CIF-B24-HFWL-PL
1424337
PHOENIX_CONTACT
DIN rail mounting frame
Mounting frame for connectors, construction: B24, For contact inserts, Top frame
DIN rail mounting frame, design: B24, for contact inserts, Top frame
Connectors > Fixing element for industrial connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | for B24, BB48, DD108, HV10 contact inserts and B24 module frame |
| Notes on safety | Protection against electric shock must be ensured by the user. The continuity of the PE connection must be verified and satisfied by the user. The PE connection must be implemented equilaterally. |
| Product type | DIN rail mounting frame |
| Housing type | DIN rail mounting frame |
| Series | HC-CIF-PL |
| Type | B24 |
| Protective cover | no |
| Pg screw connection | none |
| Data management status | |
| Article revision | 03 |
| Dimensional drawing |  |
| Width | 42 mm |
| Height | 61 mm |
| Length | 170 mm |
| Material | PC |
| Flammability rating according to UL 94 | V0 |
| Mechanical data | |
| Locking type | Clip |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | To ensure correct use, installation in an IP-protected space is required |
| Feature Name | Feature Value |
|---|---|
| Type of fixing element (EF012206) | Rail bracket |
| Material assembly frame (EF007542) | Other |
| With PE-connection (EF005600) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Fixing direction (EF012208) | Swivelling |
| Width (EF000008) | 42 mm |
| Height (EF000040) | 61 mm |
| Depth (EF000049) | 170 mm |
| Type of mounting rail (EF012209) | DIN rail (top hat rail) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
