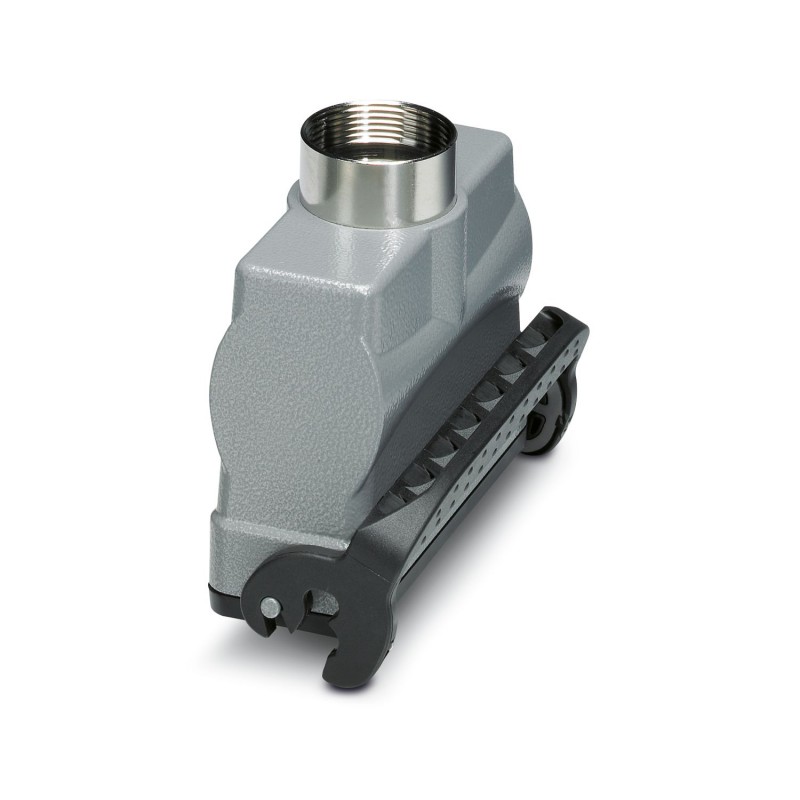

HC-B 24-KML-H-O1M32 1460323 PHOENIX CONTACT Casing coupling HEAVYCON B24, with center differential lock, hei..
HC-B 24-KML-H-O1M32
1460323
PHOENIX_CONTACT
10
Casing coupling HEAVYCON B24, with center differential lock, height 80,5 mm, with terminal 1x M32, output cables straight
HEAVYCON B24 coupling housing, with longitudinal lock, height 80.5 mm, with 1x M32 tubing, straight cable outlet
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | for HC-B24, BB46, BBB64, D64, DD108, M contact inserts |
| Product Type | Flange-locking housing |
| Type of housing | Docking housing |
| Number of Cable Outlets | 1 |
| Screwdriving Type | 1x M32 |
| Cable outlet | straight |
| Pg Cable Glands | without |
| Dimension Scheme |  |
| Width | 43 mm |
| Height | 82 mm |
| Longitude | 120 mm |
| Gasket material | NBR |
| Shell material | Die-casting aluminium |
| Housing Surface Material | Powder Coating, Gray |
| Material: Locking flange | Stainless steel, grip: PA |
| Mechanical data | |
| Screwdriving Type | 1x M32 |
| Installation instructions | for whole and medium cable glands |
| Environmental conditions | |
| Protection Index | IP65 |
| Ambient Temperature (Service) | -40 °C ... 125 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
