HC-B 24-KML-H-O1M25 1460322 PHOENIX CONTACT Casing coupling HEAVYCON B24, with center differential lock, hei..
HC-B 24-KML-H-O1M25
1460322
PHOENIX_CONTACT

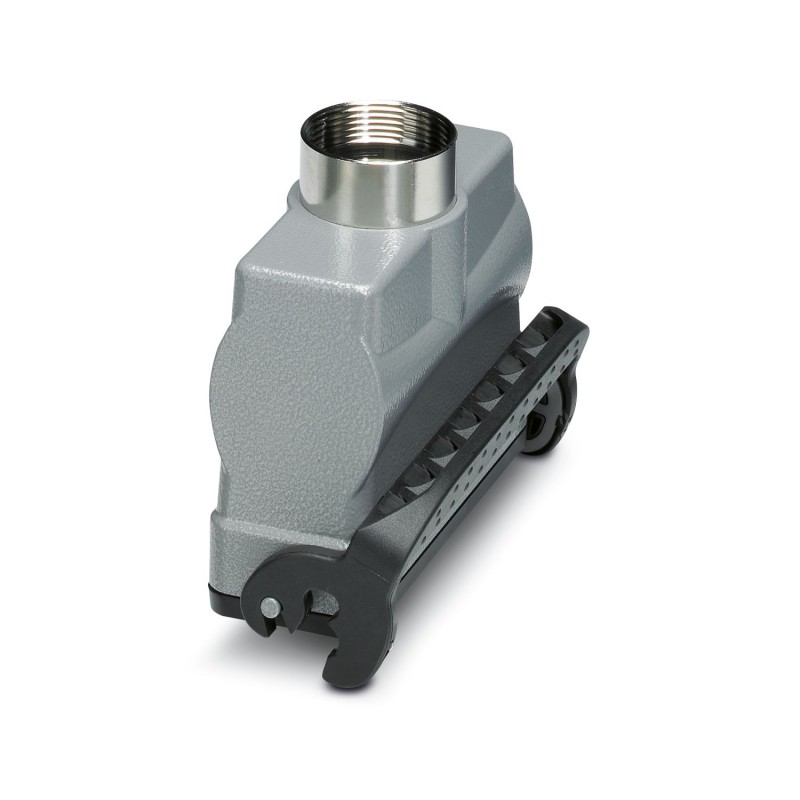

Casing coupling HEAVYCON B24, with center differential lock, height 80,5 mm, with socket 1x M25, output cables straight
HEAVYCON B24 coupling housing, with single locking latch, height: 80.5 mm, with 1 x M25 gland, straight cable outlet
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
| Product type | Housing with locking latch |
| Housing type | Coupling housings |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Cable outlet | straight |
| Pg screw connection | none |
| Dimensional drawing |  |
| Width | 43 mm |
| Height | 82 mm |
| Length | 120 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Assembly note | For half and full screw connections |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
