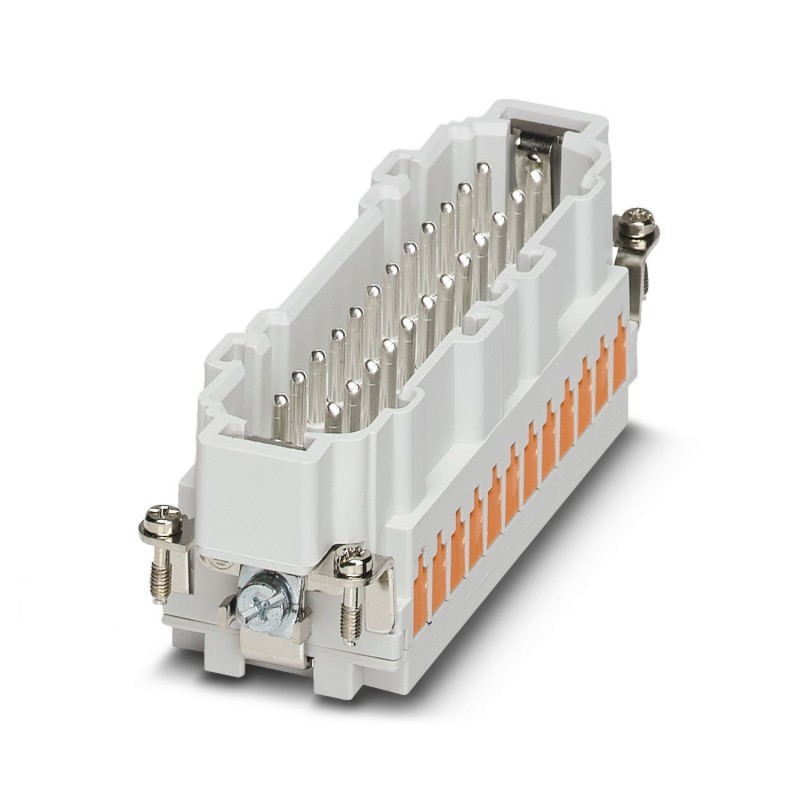

HC-B 24-ESTQ-2,5-48-OLOGO 1605671 PHOENIX CONTACT Contact insert
HC-B 24-ESTQ-2,5-48-OLOGO
1605671
PHOENIX_CONTACT
10
Contact insert
Contact insert, size: B24, QUICKON connection, 500 V, 16 A, 0.34 mm² ... 2.5 mm²
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | Connectors may be operated only when there is no load/voltage. |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Product type | Contact insert with a fixed no. of positions |
| Type | B24 |
| B48 | |
| Number of positions | 24 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Mechanical characteristics | |
| Contact diameter | 2.5 mm |
| Connection technology | |
| Connection technology | QUICKON connection |
| QUICKON connection | |
| Conductor connection | |
| Conductor cross section | 0.34 mm² ... 2.5 mm² (Litz wire structure VDE 0295, Class 1 - 5/litz wire diameter >= 0.2 mm) |
| Connection cross section AWG | 22 ... 14 |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) | |
| Rated voltage (III/3) | 500 V |
| 500 V | |
| Rated surge voltage | 6 kV |
| 6 kV | |
| Rated current | 16 A |
| 16 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 24 |
| Number of control contacts (EF012217) | 0 |
| Contact insert without contacts (EF007324) | No |
| Number of poles (EF001391) | 24 |
| Diameter plug-in contact (EF007320) | 2.5 mm |
| Rated current In (EF008250) | 16 A |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Rated voltage (EF000228) | 500 V |
| Rated surge voltage (EF002993) | 6 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Type of electric connection (EF003961) | Insulation displacement connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.34 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.34 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Min. number of insertion cycles (EF012212) | 500 |
