HC-B 06-SMLD-74/O1M32 1460087 PHOENIX CONTACT HEAVYCON B6 box mounting base, with single locking latch and c..
HC-B 06-SMLD-74/O1M32
1460087
PHOENIX_CONTACT
10

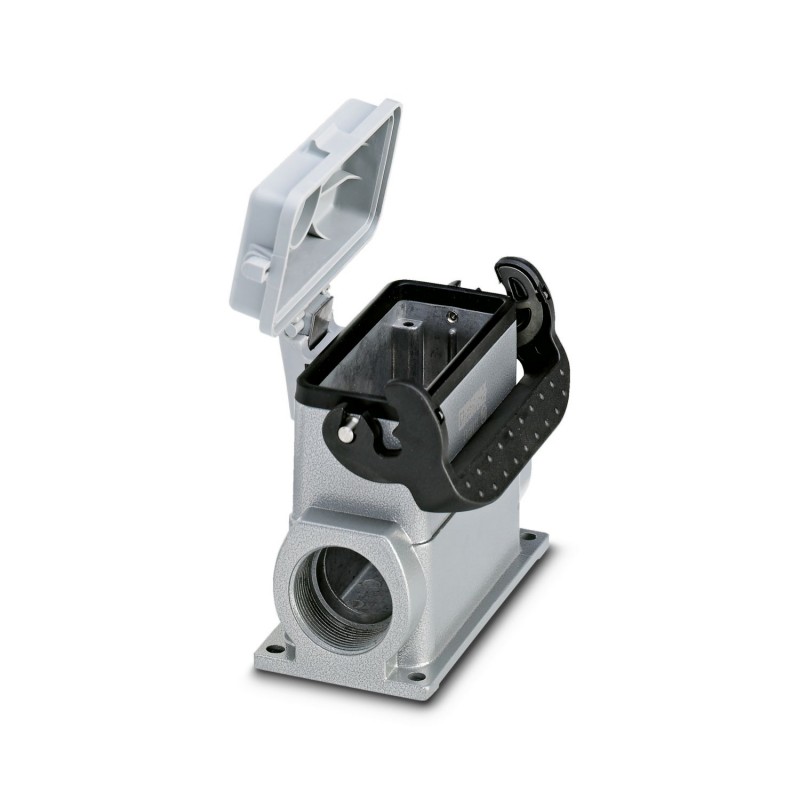

HEAVYCON B6 box mounting base, with single locking latch and cover, height: 74 mm, with 1 x M32 gland
HEAVYCON B6 plinth housing, with longitudinal lock and lid, height 74 mm, with tubing 1 x M32
Connectors > Housing for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Ambient conditions
| Degree of protection of housing (IP) | IP65 (When plugged in) |
|---|---|
| IP54 (with closed protective cover) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
General
| Note | For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K |
|---|---|
| Size | B6 |
| Housing type | Box mounting bases |
| Locking type | with single locking latch |
| No. of cable outlets | 1 |
| Cable outlet | left (view of the opened single locking latch) |
| Screw connection | none |
| Type of the screw connection | 1x M32 |
| Protective cover | yes |
| Housing material | Aluminum die-cast |
| Housing surface material | Powder-coated, gray |
| Seal material | NBR |
| Material lock | Stainless steel, handle: PA |
| Material grip body interlock | PA |
| Material, protective cover | PA |
| Assembly instructions | For half and full screw connections |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27440202 |
|---|---|
| eCl@ss 4.0 | 27140800 |
| eCl@ss 4.1 | 27140800 |
| eCl@ss 5.0 | 27143400 |
| eCl@ss 5.1 | 27261200 |
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440202 |
| eCl@ss 8.0 | 27440202 |
| eCl@ss 9.0 | 27440202 |
UNSPSC
| UNSPSC 6.01 | 31261502 |
|---|---|
| UNSPSC 7.0901 | 31261502 |
| UNSPSC 11 | 31261502 |
| UNSPSC 12.01 | 31261502 |
| UNSPSC 13.2 | 31261501 |
| UNSPSC 18.0 | 31261501 |
| UNSPSC 19.0 | 31261501 |
| UNSPSC 20.0 | 31261501 |
| UNSPSC 21.0 | 31261501 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
