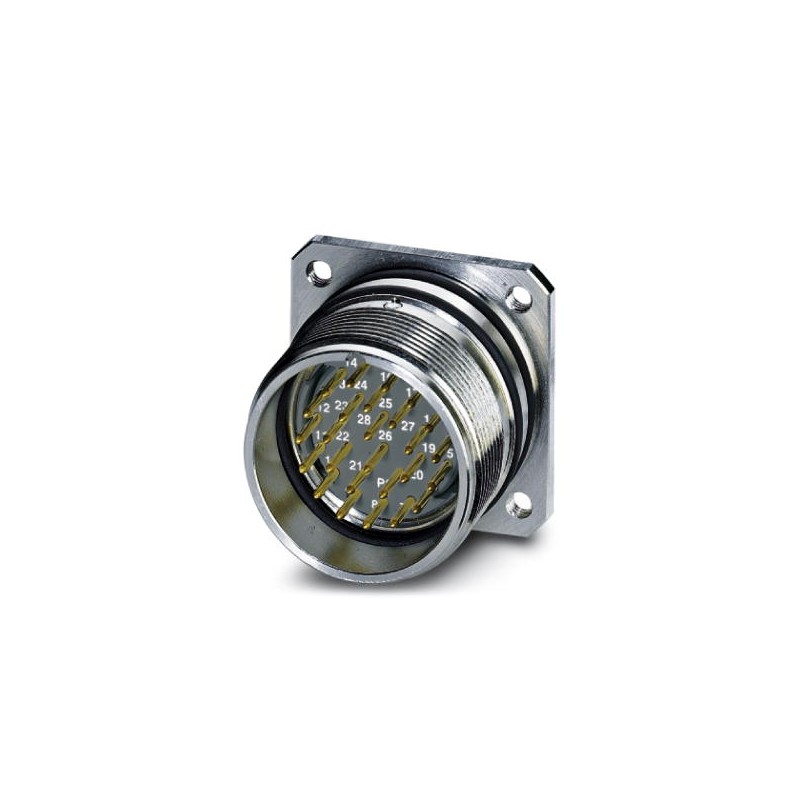

HC-28P1NT24300 1590423 PHOENIX CONTACT Device connector, rear mounting
HC-28P1NT24300
1590423
PHOENIX_CONTACT
Device connector, rear mounting
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1590423 |
|---|---|
| Packing unit | 12 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356187497 |
| Weight per Piece (excluding packing) | 7.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Type of locking | Screw locking |
|---|---|
| Insertion/withdrawal cycles mechanical | 50 |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Solder-in connection |
| Type of contacts | Pin |
| Number of positions | 28 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 8 A |
| Pg housing screw connection | none |
| Mounting type | 4x M3 |
Material
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Insulator material | PA66 |
| Contact material | CuZn |
| Contact surface | Nickel-plated, gold coating |
| Gasket and O-ring material | NBR |
Specifications according to DIN EN 61984:2001
| Installation height max. | 2000 m |
|---|---|
| Nominal / operating voltage of power contacts | 150 V |
| Rated surge voltage of power contacts | 1.5 kV |
| Overvoltage category of power contacts | II |
| Degree of pollution of power contacts | 3 |
| Overvoltage category of signal contacts | II |
| Degree of pollution of signal contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.1272607xxeCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
