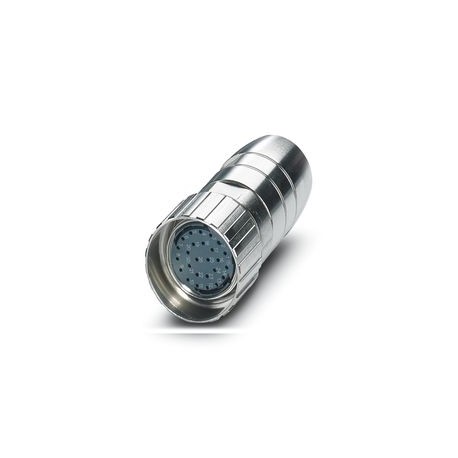

HC-26S1N1280DUX 1240146 PHOENIX CONTACT Cable connector, straight, Screw lock, M27, number of poles: 26, con..
HC-26S1N1280DUX
1240146
PHOENIX_CONTACT
12
Cable connector, straight, Screw lock, M27, number of poles: 26, contact connection type: Female, shielded: yes, protection index: IP67, cable diameter range: 2 mm ... 14.5 mm, number of poles: 26, connection type: Solder connection, series: HC, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1%)
Plug-in connector. for cables
Cable connector, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Socket, shielded: yes, degree of protection: IP67, cable diameter range: 2 mm ... 14.5 mm, number of positions: 26, connection method: Solder connection, series: HC, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Connection method | Solder connection |
| Product type | Circular connector (cable-side) |
| Number of positions | 26 |
| Connection profile | 26 |
| Application | Signal |
| Series | HC |
| Shielded | yes |
| Coding | N |
| Thread type | M27 |
| Seal material | FPM or NBR or EPDM |
| Housing material | Metal |
| Conductor connection | |
| Connection method | Solder connection |
| Contact | |
| Contact diameter | 1 mm |
| Min. cross section | 0.08 mm² |
| Max. cross section | 1 mm² |
| Max. current | 8 A |
| Nominal voltage UN | 48 V AC 74 V DC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Mechanical data | |
| Insertion/withdrawal cycles | 50 |
| Type | straight |
| Direction of rotation | Standard |
| External cable diameter | 2 mm ... 14.5 mm |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C |
| Altitude | 2000 m |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 26 |
| Ambient temperature (EF002386) | -20 °C |
| Rated voltage (EF000228) | 48 V |
| Type of electric connection (EF003961) | Soldering connection |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Min. number of insertion cycles (EF012212) | 50 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
