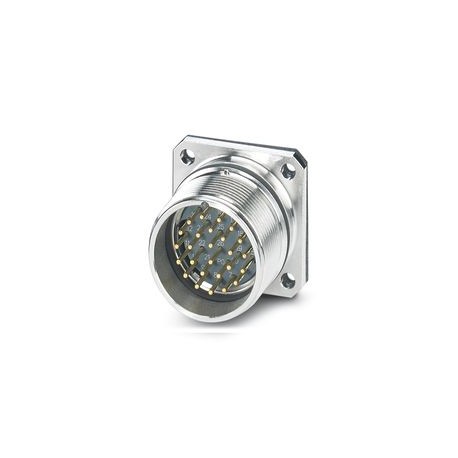

HC-26P1N8A2300X 1244833 PHOENIX CONTACT Conect. plug. to be apar. front wall, straight, Screw lock, M27, num..
HC-26P1N8A2300X
1244833
PHOENIX_CONTACT
24
Conect. plug. to be apar. front wall, straight, Screw lock, M27, number of poles: 26, contact connection type: Male, Flat joint, 4x Ø 3.2, shielded: yes, protection index: IP67, number of poles: 26, connection type: Crimp connection, series: HC, The item does not contain lead according to the RoHS II directive without exception 6c (Pb<.; 0.1 %)
Device connector front mounting, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Pin, Flat gasket, 4x Ø 3.2, shielded: yes, degree of protection: IP67, number of positions: 26, connection method: Crimp connection, series: HC, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Order crimp contacts Ø 1 mm separately |
| Mounting | 4x Ø 3.2 |
| Connection method | Crimp connection |
| Product type | Circular connectors (device side) |
| Number of positions | 26 |
| Connection profile | 26 |
| Application | Signal |
| Series | HC |
| Shielded | yes |
| Coding | N |
| Thread type | M27 |
| Flammability rating according to UL 94 | V0 |
| Seal material | FPM or NBR or EPDM |
| Housing material | Metal |
| Contact | |
| Contact diameter | 1 mm |
| Max. current | 8 A |
| Nominal voltage UN | 48 V AC 74 V DC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Conductor connection | |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Type | straight |
| Direction of rotation | Standard |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -20 °C ... 125 °C |
| Altitude | 2000 m |
| Feature Name | Feature Value |
|---|---|
| With shield connection (EF002535) | Yes |
| Number of poles (EF001391) | 26 |
| Number of control contacts (EF012217) | 26 |
| With PE-connection (EF005600) | No |
| Housing material (EF001596) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Degree of protection (IP), mounted (EF007466) | IP67 |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -20 °C |
| With thread (EF003723) | Yes |
