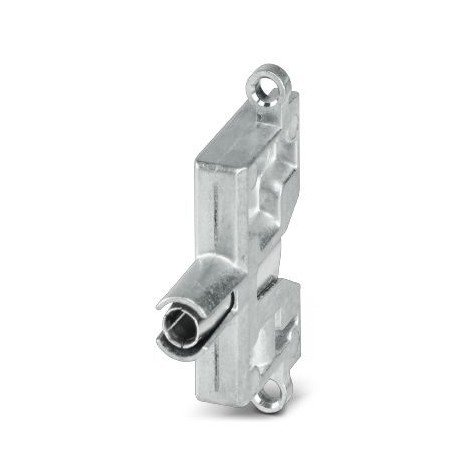

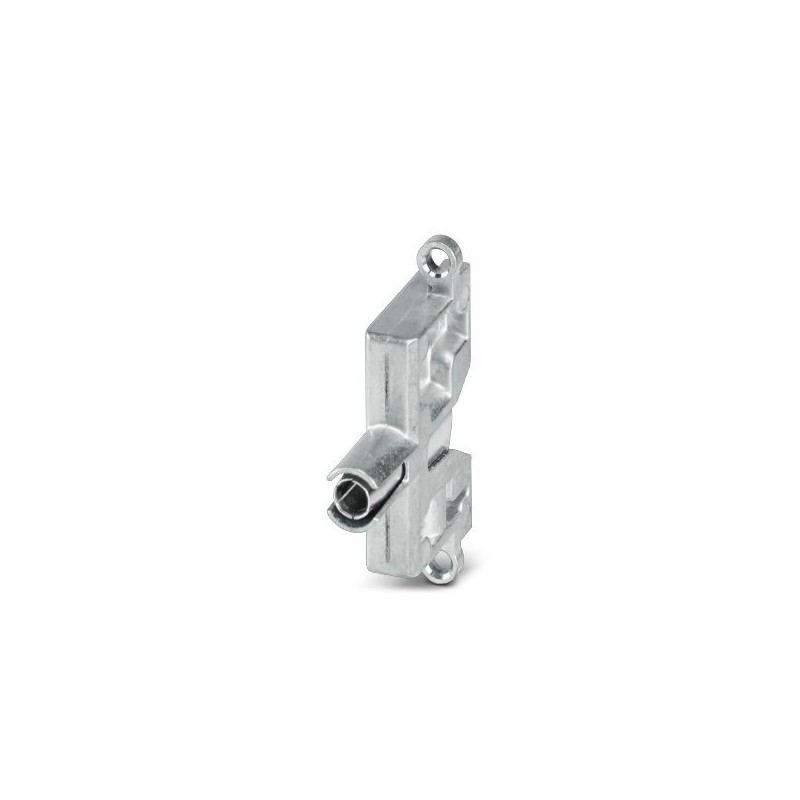

HC-1/2M-UT-F-6-PE 1424438 PHOENIX CONTACT Contact insert module, Socket, Screw connection, 0.5 mm² ... 6 mm²..
HC-1/2M-UT-F-6-PE
1424438
PHOENIX_CONTACT
Contact insert module, Socket, Screw connection, 0.5 mm² ... 6 mm², application: PE transmission, for housing size HC-EVO-M1
Contact Insert Module, Female, Screw Connection, 0.5 mm² ... 6 mm², application: PE transfer, for housings size HC-EVO-M1
Connectors > Contact insert for rectangular connectors
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424438 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 595 (C-2-2019) |
| GTIN | 4055626372570 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85366990 |
| Country of origin | CN (China) |
Mechanical characteristics
| Conductor cross section | 0.5 mm² ... 6 mm² |
|---|---|
| Connection cross section AWG | 20 ... 10 |
| Tightening torque | 0.8 Nm ... 1.2 Nm |
| Contact diameter | 4 mm |
| Insertion/withdrawal cycles | ≥ 500 |
General
| Note | For HEAVYCON housing type HC-EVO-M1 |
|---|---|
| Connectors may be operated only when there is no load/voltage. | |
| Series | HC-EVO-M1 |
| Color | silver |
| Connection method | Screw connection |
| Contact type | turned |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of power contacts (EF012216) | 0 |
| Contact insert without contacts (EF007324) | No |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 1 |
| Diameter plug-in contact (EF007320) | 4 mm |
| Ambient temperature (EF002386) | 125 °C |
| Operating temperature (EF002393) | -40 °C |
| Type of electric connection (EF003961) | Screw connection |
| With wire protection (EF000550) | No |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.5 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | Yes |
| Min. number of insertion cycles (EF012212) | 500 |
| Width (EF000008) | 7.7 mm |
| Height (EF000040) | 43.7 mm |
| Depth (EF000049) | 30.6 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN .pdf | 58 Mbytes |
|
