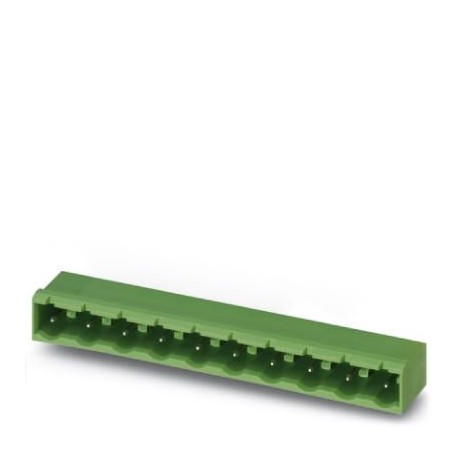

GMSTBAS 2,5/ 4-G-7,62 1862987 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2): 630..
GMSTBAS 2,5/ 4-G-7,62
1862987
PHOENIX_CONTACT
250
Product on demand only, returns will not be accepted.
PCB headers, nominal current: 12 A, rated voltage (III/2): 630 V, number of positions: 4, pitch: 7.62 mm, color: green, contact surface: Tin, mounting: Wave soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: GMSTBA 2.5/.. -G, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲PCB headers, nominal current: 12 A, rated voltage (III/2): 630 V, number of positions: 4, pitch: 7.62 mm, color: green, contact surface: Tin, mounting: Wave soldering
Key Commercial Data
| Orderkey | 1862987 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626190020 |
| Custom tariff number | 85366930 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
UNSPSC
| UNSPSC 13.2 | 39121409 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
