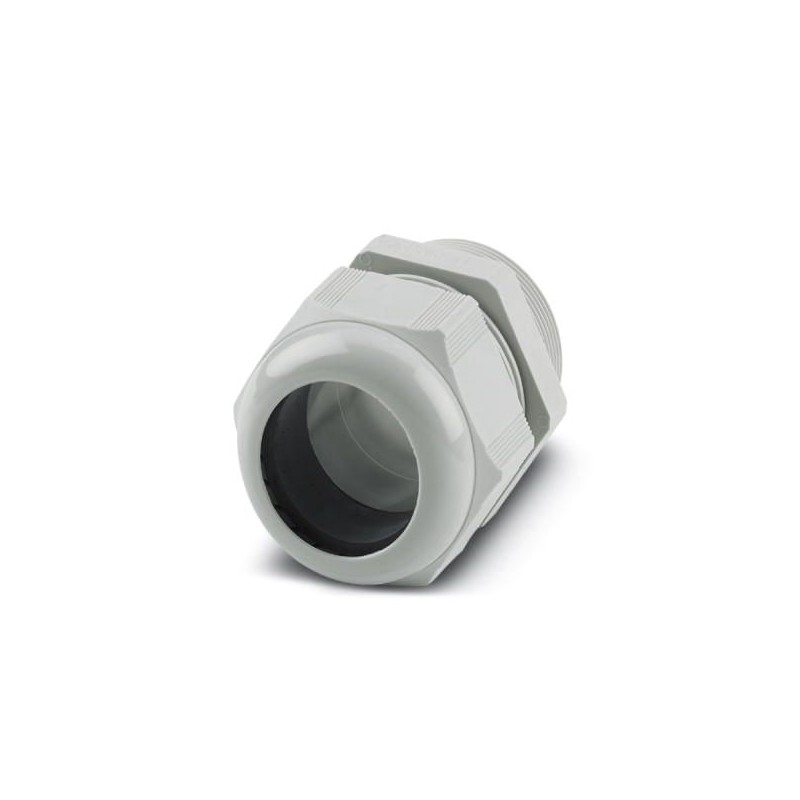

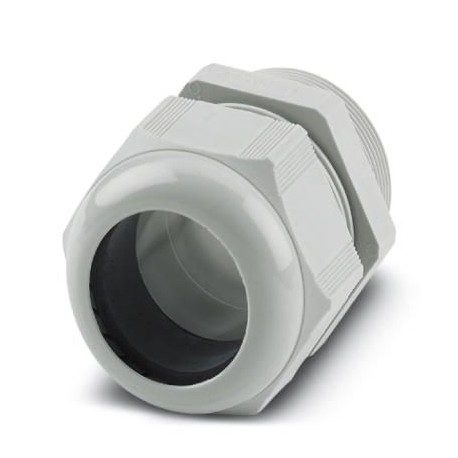

G-INS-M63-L68L-PNES-LG 1417658 PHOENIX CONTACT Cable gland
G-INS-M63-L68L-PNES-LG
1417658
PHOENIX_CONTACT
Cable gland
Cable gland, screw connection material: PA, cable outer diameter 34 mm ... 44 mm, shielding: no, connection thread: M63 x 1.5, colour: light grey RAL 7035
Cable and wire entry systems > Cable gland
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1417658 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 694 (C-2-2017) |
| GTIN | 4055626121611 |
| Weight per Piece (excluding packing) | 106.600 g |
| Custom tariff number | 39269097 |
| Country of origin | TR (Turkey) |
Dimensions
| Length | 75 mm |
|---|---|
| Wrench size, union nut | 65 mm |
| Wrench size, support | 65 mm |
| Hexagon angular dimension | 72.2 mm |
| Length of the connecting thread | 18 mm |
| Feed-through hole diameter | 63.1 mm ... 63.3 mm |
| External cable diameter | 34 mm ... 44 mm |
| 34 mm ... 44 mm (for UL 514 B) |
Ambient conditions
| Degree of protection (IP) | IP68 (5 bar / 0.5 h) |
|---|---|
| IP66 | |
| Ambient temperature (operation) | -20 °C ... 100 °C (static) |
General
| No. of conductors | 1 |
|---|---|
| Cable gland material | PA |
| Cable seal material | Neoprene |
| Flammability rating according to UL 94 | V2 |
| V2 (Housing) | |
| Shielded | no |
| Thread type connection side | M63 x 1.5 |
| Thread type on connection side | M63 |
| Torque | 12 Nm (Union nut: EN 62444) |
| 12 Nm (Support: EN 62444) | |
| 20 Nm (for UL514 B: union nut) | |
| Color | lightgrey RAL 7035 |
| Impact category | 4 |
| Execution of the strain relief | A |
| Assembly instructions | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Manufacturer | BIMED |
| Manufacturer Designation | BM-20 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 18 mm |
| Wrench width (EF000177) | 65 mm |
| Hexagon angular dimension (EF005268) | 72.2 mm |
| Suitable for cable diameter (EF005466) | 34 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Grey |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| With strain relief (EF000878) | Yes |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
