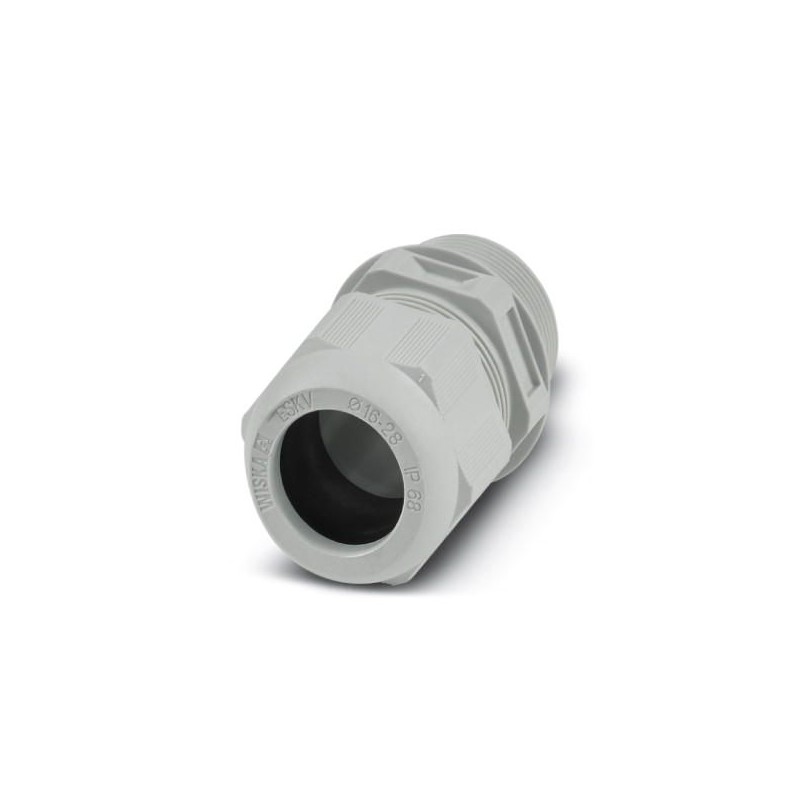

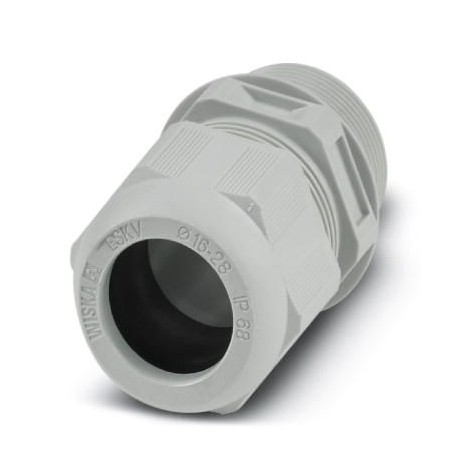

G-INS-M40-M68L-PEPDS-LG 1424518 PHOENIX CONTACT Cable gland
G-INS-M40-M68L-PEPDS-LG
1424518
PHOENIX_CONTACT
5
Cable gland
Cable gland, screw connection material: PA, outer diameter of the cable 16 mm ... 28 mm, shielding: no, connection thread: M40 x 1.5, colour: light grey RAL 7035
Cable and wire entry systems > Cable gland
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424518 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| GTIN | 4055626374239 |
| Weight per Piece (excluding packing) | 73.330 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 58 mm |
|---|---|
| Wrench size, union nut | 46 mm |
| Wrench size, support | 46 mm |
| Hexagon angular dimension | 46 mm |
| Length of the connecting thread | 18 mm |
| Feed-through hole diameter | 40.1 mm ... 40.3 mm |
| External cable diameter | 16 mm ... 28 mm |
| 17.4 mm ... 26.4 mm (UL) |
Ambient conditions
| Degree of protection | IP68 (5 bar / 0.5 h) |
|---|---|
| IP69 | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
General
| No. of conductors | 1 |
|---|---|
| Cable gland material | PA |
| Cable seal material | EPDM |
| Sealing material | EPDM (Flat gasket) |
| Shielded | no |
| Thread type connection side | M40 x 1.5 |
| Thread type on connection side | M40 |
| Torque | 20 Nm (Union nut) |
| 20 Nm (Support sleeve) | |
| Color | lightgrey RAL 7035 |
| Impact category | 4 |
| Execution of the strain relief | A |
| Assembly instructions | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Manufacturer | WISKA |
| Manufacturer Designation | ESKV-L 40 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 18 mm |
| Wrench width (EF000177) | 46 mm |
| Hexagon angular dimension (EF005268) | 46 mm |
| Suitable for cable diameter (EF005466) | 16 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP68 |
| Colour (EF000007) | Grey |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| With strain relief (EF000878) | Yes |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
