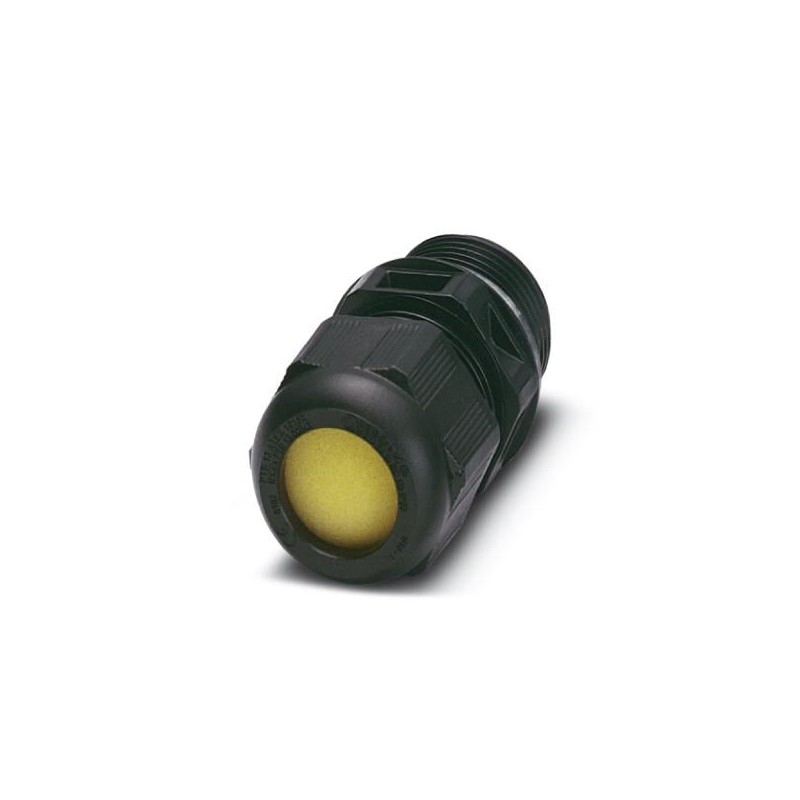

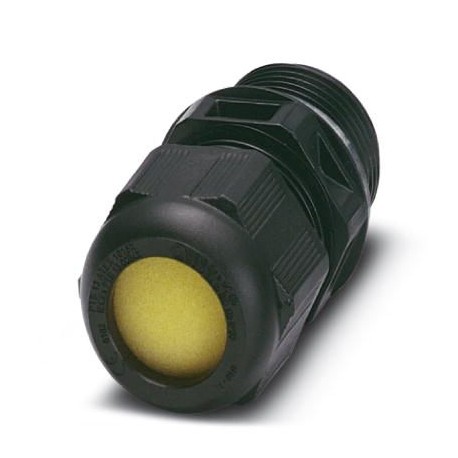

G-ESIS-M32-S68N-PEPDS-BK 1424469 PHOENIX CONTACT Cable gland
G-ESIS-M32-S68N-PEPDS-BK
1424469
PHOENIX_CONTACT
10
Cable gland
Cable gland, screwed connection material: PA, application: Ex, outer diameter of the cable 13 mm ... 21 mm, shielding: no, connection thread: M32 x 1.5, colour: deep black RAL 9005, with flat seal
Cable and wire entry systems > Cable gland
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1424469 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4055626375595 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Dimensions
| Length | 48 mm |
|---|---|
| Thread pitch | 1.5 mm |
| Wrench size, union nut | 36 mm |
| Wrench size, support | 36 mm |
| Hexagon angular dimension | 41 mm |
| Length of the connecting thread | 12 mm |
| External cable diameter | 13 mm ... 21 mm |
| Cable types that can be used | for unarmored cables |
| Hole diameter | 32.1 mm ... 32.3 mm |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP68 (5 bar / 0.5 h) | |
| Ambient temperature (operation) | -40 °C ... 75 °C (static) |
General
| Material | PA (Screw connection, halogen-free) |
|---|---|
| Cable gland material | PA |
| Material grommet GRP | EPDM (Flat gasket, halogen-free) |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 750.00 |
| Thread type connection side | M32 x 1.5 |
| Torque | 4.5 Nm (Support sleeve) |
| Tightening torque, union nut | 3.00 Nm |
| Color | black |
| Impact energy | 7.00 J (at -40 °C ... +75 °C) |
| Manufacturer | WISKA |
| Manufacturer Designation | ESKE/1-e 32 |
| Suited for EX-applications | yes |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 12 mm |
| Wrench width (EF000177) | 36 mm |
| Suitable for cable diameter (EF005466) | 13 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | Yes |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Black |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Flat cable coupling (EF004685) | No |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | Yes |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
