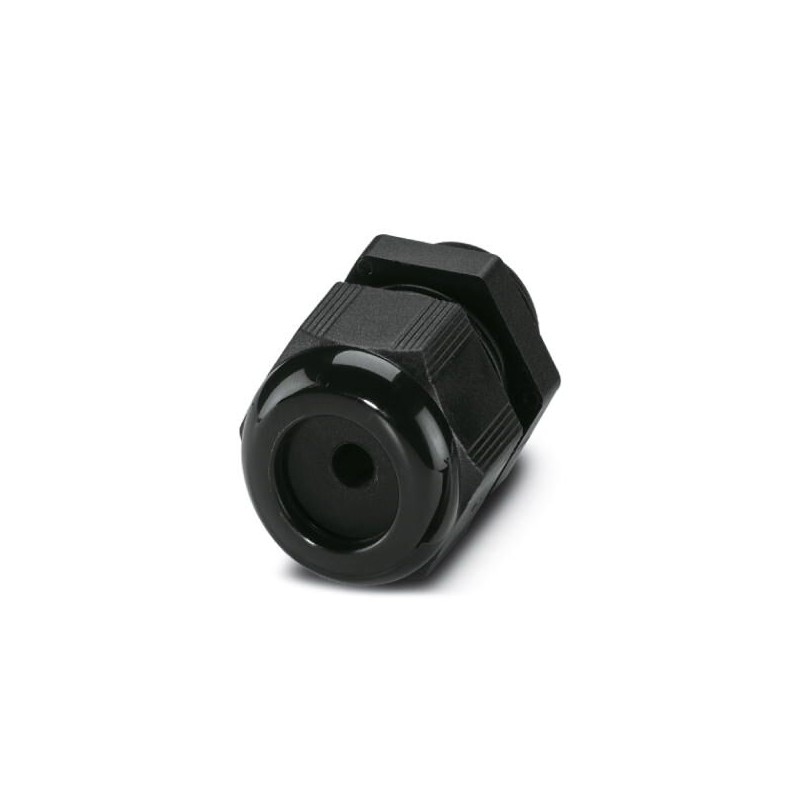

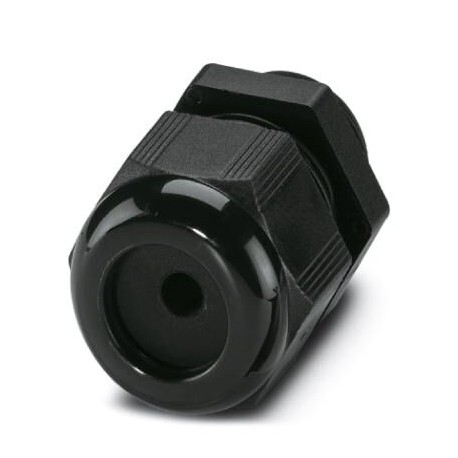

G-CCS-M25-M66N-PNES-BK 1076600 PHOENIX CONTACT Plastic cable connection with slotted seal, for connector wit..
G-CCS-M25-M66N-PNES-BK
1076600
PHOENIX_CONTACT
10
Plastic cable connection with slotted seal, for connector with pre-wired cable, IP66, M25 connection thread, clear width: 18.2 mm
Plastic cable gland with grooved joint, for connector with ready-made conductor, IP66, connection thread M25, inner diameter: 18.2 mm
Cable and wire entry systems > Cable gland
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1076600 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 706 (C-2-2019) |
| GTIN | 4055626785004 |
| Weight per Piece (excluding packing) | 30.000 g |
| Custom tariff number | 39269097 |
| Country of origin | TR (Turkey) |
Dimensions
| Length | 47 mm |
|---|---|
| Wrench size, union nut | 33 mm |
| Wrench size, support | 33 mm |
| Hexagon angular dimension | 37.4 mm |
| Length of the connecting thread | 10 mm |
| Feed-through hole diameter | 25.1 mm ... 25.2 mm |
| External cable diameter | 3 mm ... 7 mm |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Ambient temperature (operation) | -20 °C ... 100 °C (static) |
General
| No. of conductors | 1 |
|---|---|
| Cable gland material | PA |
| Cable seal material | CR |
| Flammability rating according to UL 94 | V2 |
| Shielded | no |
| Thread type on connection side | M25 x 1.5 |
| Torque | 5 Nm ... 7.5 Nm (Union nut: EN 62444) |
| 3.5 Nm (Support: EN 62444) | |
| Color | black |
| Assembly instructions | 1) Mount screw connection support in the housing using the correct torque 2) Insert cable 3) Tighten union nut using the correct torque |
| Connection | Clear width 18.2 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Thread length (EF000368) | 10 mm |
| Wrench width (EF000177) | 33 mm |
| Hexagon angular dimension (EF005268) | 37.4 mm |
| Suitable for cable diameter (EF005466) | 3 mm |
| Material (EF002169) | Other |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Other |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Black |
| Snapping in opening (EF012547) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -20 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
