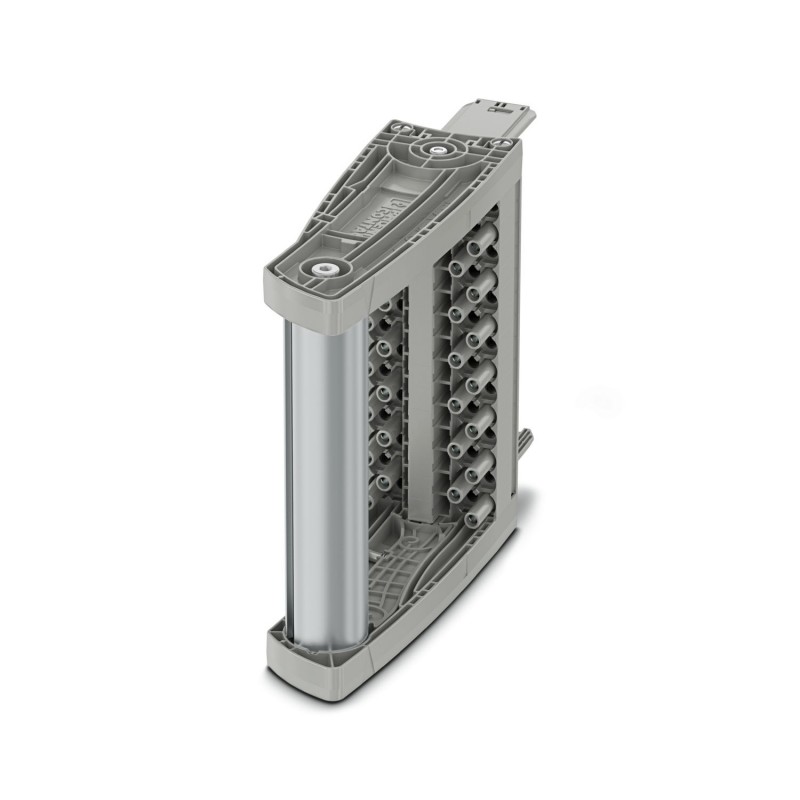

FTP-3F/14 1029269 PHOENIX CONTACT Test plug, nom. voltage: 400 V, nominal current: 20 A, color: gray
FTP-3F/14
1029269
PHOENIX_CONTACT
Test plug, nom. voltage: 400 V, nominal current: 20 A, color: gray
Test plug, rated voltage: 400 V, rated current: 20 A, number of poles: 14, connection type: Terminal connection, Sizing cross-section: 2.5 mm², color: gray
Terminal blocks > Test plug for terminal blocks
Enclosures connectivity
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1029269 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 651 (C-1-2019) |
| GTIN | 4055626531250 |
| Custom tariff number | 85366990 |
General
| Nominal cross section | 4 mm² |
|---|---|
| Color | gray |
| Insulating material | PC |
| Flammability rating according to UL 94 | V0 |
| Maximum load current | 20 A |
| Nominal current IN | 20 A |
| Nominal voltage UN | 400 V |
Connection data
| Conductor cross section flexible min. | 0.5 mm² |
|---|---|
| Conductor cross section flexible max. | 2.5 mm² |
| Min. AWG conductor cross section, flexible | 24 |
| Max. AWG conductor cross section, flexible | 10 |
Mounting
| Min. tightening torque of the test socket screw: | 0.5 Nm |
|---|---|
| Max. tightening torque of the test socket screw: | 0.6 Nm |
Classifications
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 400 V |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Type of electric connection (EF003961) | Other |
| Connectable (EF006169) | No |
| Number of poles (EF001391) | 14 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 78 Mbytes |
|
