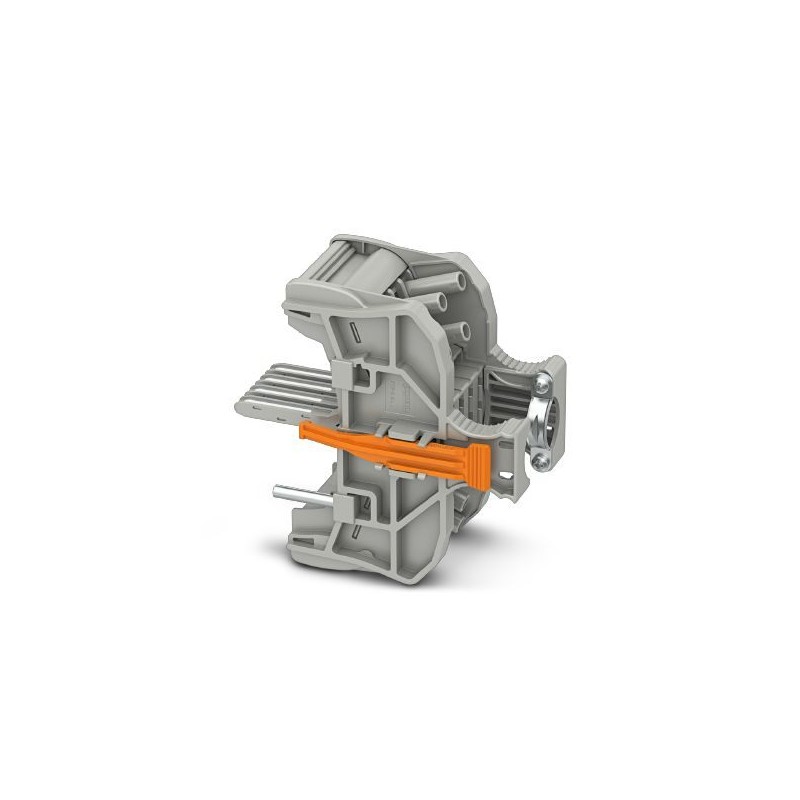

FTP-3/4SL 1030004 PHOENIX CONTACT Test plug, nom. voltage: 400 V, number of positions: 4, width: 56.8 mm, he..
FTP-3/4SL
1030004
PHOENIX_CONTACT
Test plug, nom. voltage: 400 V, number of positions: 4, width: 56.8 mm, height: 98.2 mm, color: gray
Test plug, rated voltage: 400 V, rated current: 20 A, number of poles: 4, connection type: Connection by terminal, Sizing cross-section: 2.5 mm², color: gray
Terminal blocks > Test plug for terminal blocks
Enclosures connectivity
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1030004 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 645 (C-1-2019) |
| GTIN | 4055626532523 |
| Custom tariff number | 85366990 |
General
| Number of positions | 4 |
|---|---|
| Potentials | 4 |
| Nominal cross section | 6 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Maximum power dissipation for nominal condition | 1.31 W |
| Maximum load current | 20 A |
| Current Ith | 20 A |
| Nominal voltage UN | 400 V |
Connection data
| Conductor cross section flexible min. | 0.5 mm² |
|---|---|
| Conductor cross section flexible max. | 2.5 mm² |
| Min. AWG conductor cross section, flexible | 20 |
| Max. AWG conductor cross section, flexible | 14 |
Mounting
| Min. tightening torque of the test socket screw: | 0.5 Nm |
|---|---|
| Max. tightening torque of the test socket screw: | 0.6 Nm |
Classifications
eCl@ss
| eCl@ss 5.1 | 27141100 |
|---|---|
| eCl@ss 6.0 | 27141100 |
| eCl@ss 7.0 | 27440313 |
| eCl@ss 8.0 | 27440313 |
| eCl@ss 9.0 | 27440313 |
UNSPSC
| UNSPSC 13.2 | 39121410 |
|---|---|
| UNSPSC 18.0 | 39121410 |
| UNSPSC 19.0 | 39121410 |
| UNSPSC 20.0 | 39121410 |
| UNSPSC 21.0 | 39121410 |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 400 V |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.5 mm² |
| Type of electric connection (EF003961) | Other |
| Connectable (EF006169) | No |
| Number of poles (EF001391) | 4 |
| Modular spacing (EF000394) | 8.2 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 78 Mbytes |
|
