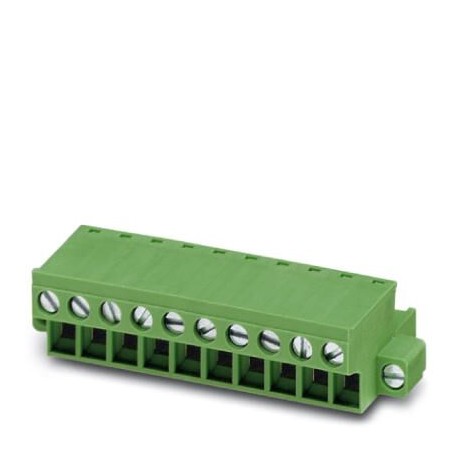

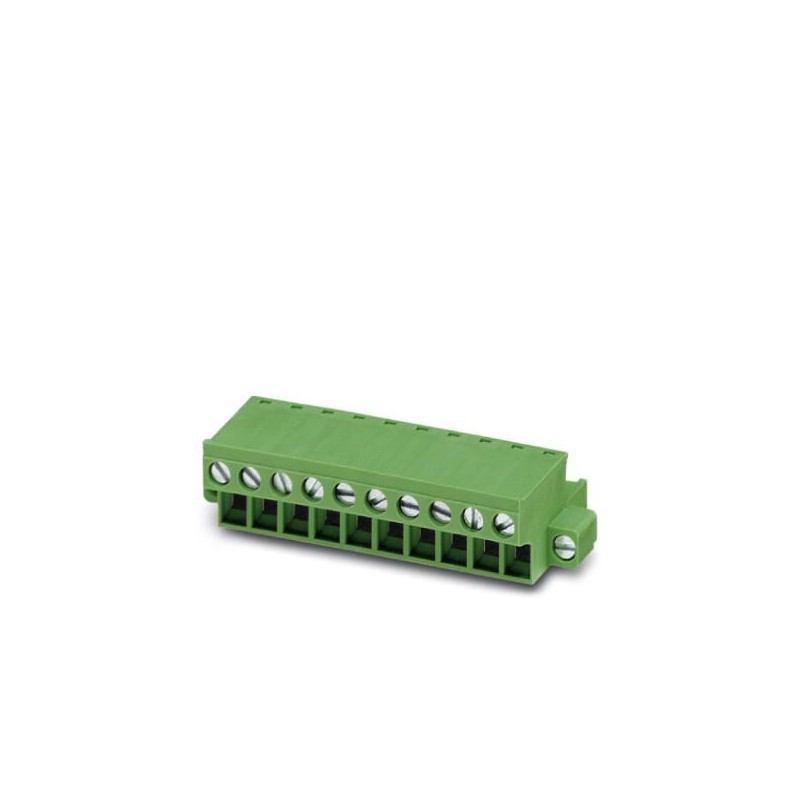

FRONT-MSTB 2,5/ 6-STFS59-5,08A 1862178 PHOENIX CONTACT PCB connector, nominal current: 12 A, rated voltage (..
FRONT-MSTB 2,5/ 6-STFS59-5,08A
1862178
PHOENIX_CONTACT
50
PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 6, pitch: 5.08 mm, connection method: Front screw connection, color: green, contact surface: Tin
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million eight hundred sixty two thousand one hundred seventy eight |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AAAFAA - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million one hundred thirty eight thousand five hundred ten |
| Unit weight (excluding packaging) | 19,100 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | DE (Germany) |
Back to top
Properties of the article
| Abbreviation | Plug-in connector for plate circ. printed |
|---|---|
| Plug-in system | CLASSIC COMBICON |
| Type of contact | Female connection |
| Family of articles | FRONT-MSTB 2,5/..-STF |
| Step | 5,08 mm |
| Number of poles | Six |
| Type of connection | Connection by screw front |
| Number of floors | One |
| Number of connections | Six |
| Number of potential | Six |
Characteristic data electrical
| Rated current | 12 To |
|---|---|
| Rated voltage | 320 V |
| Tension sizing | 250 V |
| Tension and sizing (III/2) | 320 V |
| Tension and sizing (II/2) | 630 V |
| Transient voltage design (III/3) | 4 kV |
| Transient voltage design (III/2) | 4 kV |
| Transient voltage design (II/2) | 4 kV |
Ability conex.
| Type of connection | Connection by screw front |
|---|---|
| plug-in | yes |
| Section of conductor rigid | 0,34 mm2 ... 2.5 mm2 |
| Section of flexible conductor | 0,2 mm2 ... 2.5 mm2 |
| Section of conductor AWG / kcmil | 24 ... 12 |
| Section of flexible conductor with toe cap, without plastic sleeve | 0.25 mm2 ... 2.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve | 0.25 mm2 ... 2.5 mm2 |
| 2 conductors with same cross section, rigid | 0,2 mm2 ... 1.5 mm2 |
| 2 conductors with same cross section, flexible | 0,2 mm2 ... 1.5 mm2 |
| 2 conductors of equal section, flexible, with toe cap, without plastic sleeve | 0.25 mm2 ... 1 mm2 |
| 2 conductors with same cross section, flexible with toe cap TWIN with plastic sleeve | 0.5 mm2 ... 1 mm2 |
| Gauge male a x b / Diameter | 2.8 mm x 2.0 mm/2.4 mm |
| Length of peeling | 10 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
Directions on cutting edge
| Clamp crimp recommended | 1212034 CRIMPFOX 6 |
|---|---|
| Leading without collar is insulated, according to DIN 46228-1 | Section: 0.5 mm2; Length: 8 mm ... 10 mm |
| Section: 0.75 mm2; Length: 8 mm ... 10 mm | |
| Section: 1 mm2; Length: 8 mm ... 10 mm | |
| Section: 1.5 mm2; Length: 8 mm ... 10 mm | |
| Section: 2,5 mm2; Length: 10 mm | |
| Clamp crimp recommended | 1212034 CRIMPFOX 6 |
| Leading with collar insulated, according to DIN 46228-4 | Section: 0.5 mm2; Length: 8 mm ... 10 mm |
| Section: 0.75 mm2; Length: 8 mm ... 10 mm | |
| Section: 1 mm2; Length: 8 mm ... 10 mm | |
| Section: 1.5 mm2; Length: 8 mm ... 10 mm | |
| Section: 2,5 mm2; Length: 10 mm |
Material data - contact
| Observation | According to WEEE/RoHS, without filaments according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Material contact | Cu alloy |
| Characteristics of the surface | tinning of malleable cast iron |
| Metal surface of the point of embornaje (top layer) | Tin (4 - 8 ám Sn) |
| Metal surface area of contact (top layer) | Tin (4 - 8 ám Sn) |
Material data - housing
| Color housing | green (6021) |
|---|---|
| Isolation | PA |
| Group insulating material | I |
| CTI according to IEC 60112 | Six hundred |
| Class of flammability according to UL 94 | V0 |
| Number of flammability of filaments GWFI according to en 60695-2-12 | Eight hundred fifty |
| Ignition temperature of filaments GWIT according to en 60695-2-13 | Seven hundred seventy five |
| Temperature test of the hardness for the balls according to en 60695-10-2 | 125 °C |
Indications of packing
| Type of packaging | packaged in box |
|---|---|
| Packing unit | Fifty |
| Designation packing Units | Units |
General indications of product
| Observation | According to the standard DIN en 61984, connectors, COMBICON are connectors no power switching (COC). In the case of a use in accordance with what is prescribed, these should not be plugged or unplugged under voltage or under load. |
|---|
Environmental conditions
| Ambient temperature (storage / transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Room temperature (service) | -40 °C ... 100 °C (in function of the curve derating) |
Connection and method of connection
| Checking of damage in the conductors and loosening | DIN EN 60999-1 (VDE 0609-1):2000-12 |
|---|---|
| Test approved |
Tensile test
| Tensile test | DIN EN 60999-1 (VDE 0609-1):2000-12 |
|---|---|
| Test approved | |
| Section of the driver / type of driver / traction force | 0,34 mm2 / stiff / > 15 N |
| 0,2 mm2 / flexible / > 10 N | |
| 2.5 mm2 / stiff / > 50 N | |
| 2.5 mm2 / flexible / > 50 N |
Mechanical testing according to the standards
| Visual Control | Test passed DIN en 60512-1-1:2003-01 |
|---|---|
| Check dimensions | Test passed DIN en 60512-1-2:2003-01 |
| Resistance of prints | Test passed DIN en 60068-2-70:1996-07 |
| Result | Test approved |
| Specification of the test | DIN EN 60512-13-2:2006-11 |
| Number of cycles | Twenty five |
| Force to the plug by polo approx. | 12 N |
| Force when unplugging per pole approx. | 9 N |
| Polarization and coding | Test passed DIN en 60512-13-5:2006-11 |
| Result | Test approved |
| Specification of the test | DIN EN 60512-15-1:2009-03 |
| Strength trial-by-polo | 44 N |
Lines of flight and air spaces
| Air spaces and lines of flight | DIN EN 60664-1 (VDE 0110-1):2008-01 |
|---|---|
| Specification of the test | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Minimum value of air gap - field inhomogéneo (III/3) | 3 mm |
| Minimum value of air gap - field inhomogéneo (III/2) | 3 mm |
| Minimum value of air gap - field inhomogéneo (II/2) | 3 mm |
| Minimum value of the line of flight (III/3) | 3.2 mm |
| Minimum value of the line of flight (III/2) | 3 mm |
| Minimum value of the line of flight (II/2) | 3.2 mm |
Mechanical testing (A)
| Force to the plug by polo approx. | 12 N |
|---|---|
| Force when unplugging per pole approx. | 9 N |
| Requirement of impossibility of confusion when connecting >20 N | Test approved |
| Portacontactos used requirement >20 N | Test approved |
Checks resistance (B)
| Specification of the test | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
|---|---|
| Contact resistance ROne | 1,9 mΩ |
| Cycles of plug | Twenty five |
| Contact resistance RTwo | 1,9 mΩ |
| Voltage shock endurable level sea | To 4.8 kV |
| Ac voltage bearable | 2,21 kV |
| Insulation resistance Pole-contiguous | > 0.2 TΩ |
Essays on climate (D)
| Specification of the test | DIN EN ISO 6988:1997-03 |
|---|---|
| Effort cold | -40 °C/2 h |
| Thermal stress | 100 °C/168 h |
| Fatigue corrosion | 0,2 dmThreeSOTwoin 300 dmThree/40 °C/1 cycle |
| Voltage shock endurable level sea | To 4.8 kV |
| Ac voltage bearable | 2,21 kV |
Checks and environmental resistance (E)
| Specification of the test | DIN EN 61984 (VDE 0627):2009-11 |
|---|---|
| Result-Degree of protection IP Code | Protection against contact of fingers with finger proof IP20 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
UNSPSC
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
|---|---|
| UNSPSC 18.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 20.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 21.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
