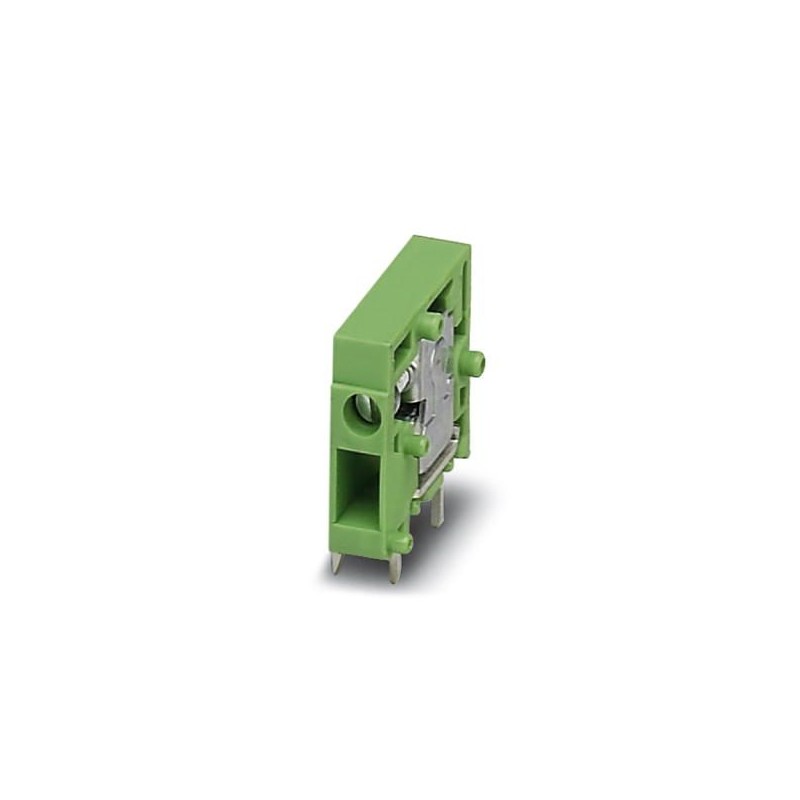

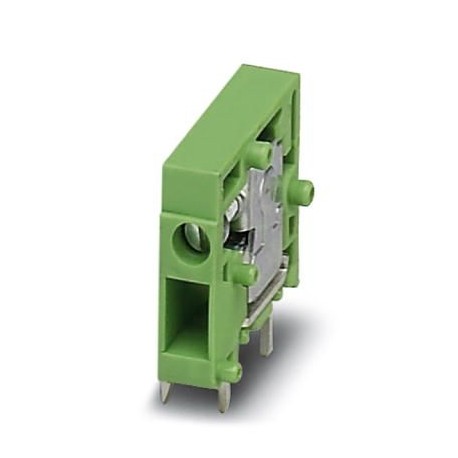

FRONT 2,5-H/SA10-EX BK 1928615 PHOENIX CONTACT PCB terminal block
FRONT 2,5-H/SA10-EX BK
1928615
PHOENIX_CONTACT
50
PCB terminal block
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1928615 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918589493 |
| Weight per Piece (excluding packing) | 3.340 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | FRONT 2,5-H-EX |
| Pitch | 5 mm |
| Number of positions | 1 |
| Connection method | Front screw connection |
| Screw thread | M2,5 |
| Mounting type | Wave soldering |
| Pin layout | Linear double pinning |
| Number of levels | 1 |
Connection capacity
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
|---|---|
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG / kcmil | 24 ... 14 |
| Stripping length | 9 mm |
| Torque | 0.4 Nm ... 0.5 Nm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface soldering area (top layer) | Tin (5 - 7 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Caption | Schematic representation – for additional information, see product range drawing in the Download Center |
| Length [ l ] | 19.5 mm |
| Pitch | 5 mm |
| Height (without solder pin) | 19 mm |
| Solder pin [P] | 5 mm |
| Pin spacing | 5 mm |
| Pin dimensions | 0.8 x 0.8 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Termination and connection method
| Test for conductor damage and slackening | IEC 60999-1:1999-11 |
|---|---|
| Test passed |
Pull-out test
| Pull-out test | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 2.5 mm² / flexible / > 50 N | |
| 2.5 mm² / solid / > 50 N |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141109eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
