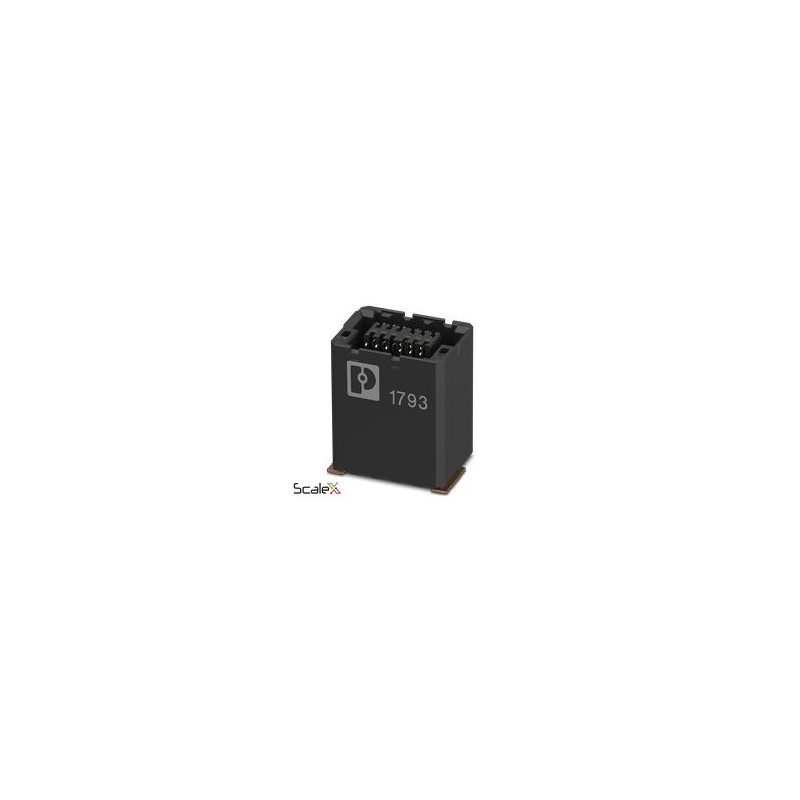

FP 0,8/ 20-FV 10,85 1154075 PHOENIX CONTACT SMD plug pin, rated current: 1.7 A, Test voltage: 500 V AC, numb..
FP 0,8/ 20-FV 10,85
1154075
PHOENIX_CONTACT
250
SMD plug pin, rated current: 1.7 A, Test voltage: 500 V AC, number of poles: 20, pitch: 0.8 mm, color: black, contact surface: Au, contact connection type: Female, mounting: SMD welding
SMD plug plug, rated current: 1.7 A, test voltage: 500 VAC, number of poles: 20, pitch: 0.8 mm, color: black, surface contacts: Gold, contact type: Female, mounting: SMD solder
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | SMD plug plug |
| Product Family | FP 0.8/...-FV 10.85 |
| Number of poles | 20 |
| Step | 0.8 mm |
| Number of rows | 2 |
| Number of potentials | 20 |
| Pin Design | Linear pad geometry |
| Nominal Current IN | 1.7 A IEC 60512-5-2:2002-02 (at 20 °C 80 poles) |
| Degree of pollution | 3 |
| Contact resistance | 20 mΩ |
| Test voltage | 500 V AC IEC 60512-4-1:2003 |
| Type of mounting | SMD Welding |
| Pin Design | Linear pad geometry |
| Processing Instructions | |
| Process | Reflow soldering |
| Moisture Sensitive Level | MSL 1 |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Selective Coating |
| Metal surface contact area (top layer) | Gold (Au) |
| Metal Surface Contact Area (Middle Layer) | Nickel (Ni) |
| Metal surface weld area (top layer) | Tin (Sn) |
| Metal Surface Welding Area (Middle Layer) | Nickel (Ni) |
| Material data - housing | |
| Color (Housing) | Black (9005) |
| Insulating material | LCP |
| Insulating material group | IIIb |
| CTI according to IEC 60112 | 150 |
| Flammability class according to UL 94 | V0 |
| AWG Conductor Section | (Converted according to IEC) |
| Observation regarding the operation | The additional operating stress is obtained depending on the application by taking into account the leakage lines and insulation distances in air within the framework of the insulation requirements according to IEC 60664-1. |
| Data on Welding Processes | The articles are suitable for equipment on both sides and welding at height. |
| Dimension Scheme |  |
| Step | 0.8 mm |
| Width [w] | 12.78 mm |
| Height [h] | 11.45 mm |
| Length [l] | 6.9 mm |
| Overall Height | 10.85 mm |
| application | |
| Contact Coating | 0.8 mm |
| Shifting the Center | ± 0.7 mm on longitudinal and transverse axis |
| Pile Height | 12 mm Tolerance: +1.5 mm (in combination with Item Family:FP 0.8/...-MV 1.15) |
| 13.5 mm Tolerance: +1.5 mm (in combination with Item Family:FP 0.8/...-MV 2.65) | |
| 19.5 mm Tolerance: +1.5 mm (in combination with Item Family:FP 0.8/...-MV 8.65) | |
| Introduction Length | 1.5 mm |
| Angular Tolerance | ± 5° on longitudinal and transverse axis (when plugged in) |
| ± 5° on longitudinal and transverse axis (in plugged-in state) | |
| Axial displacement in the X direction (longitudinal) | ± 0.3 mm (Tolerance compensation in plugged state) |
| Axial displacement in the Y-direction (transverse) | ± 0.3 mm (Tolerance compensation in plugged state) |
| Printed circuit board design | |
| Pad Geometry | 0.5 x 3 mm |
| Thermal Test | Test Group C | |
| Test Specification | IEC 60512-5-2:2002-02 |
| Number of poles tested | 80 |
| Creepage Lines & Air Isolation Distances | | |
| Insulating material group | IIIb |
| Minimum air gap and creepage line value | 0.25 mm |
| Durability Test | |
| Test Specification | IEC 60512-9-1:2010-03 (compliance) |
| Contact Resistance R1 | 20 mΩ |
| Contact Resistance R2 | 20 mΩ |
| Plug Cycles | 500 |
| Insulation Resistance Adjacent Poles | ≥ 5 GΩ |
| Environmental conditions | |
| Ambient Temperature (Service) | -55 °C ... 125 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Dimension Scheme |  |
| Type of packaging | 24 mm wide strap |
| Belt Width [W] | 24 mm |
| External Coil Measurements [W2] | 30.4 mm |
| Coil Diameter [A] | 330 mm |
| Outer packing type | Transparent Bag |
| ESD Level | (D) Electrostatically conductive |
| Test Specification | DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
