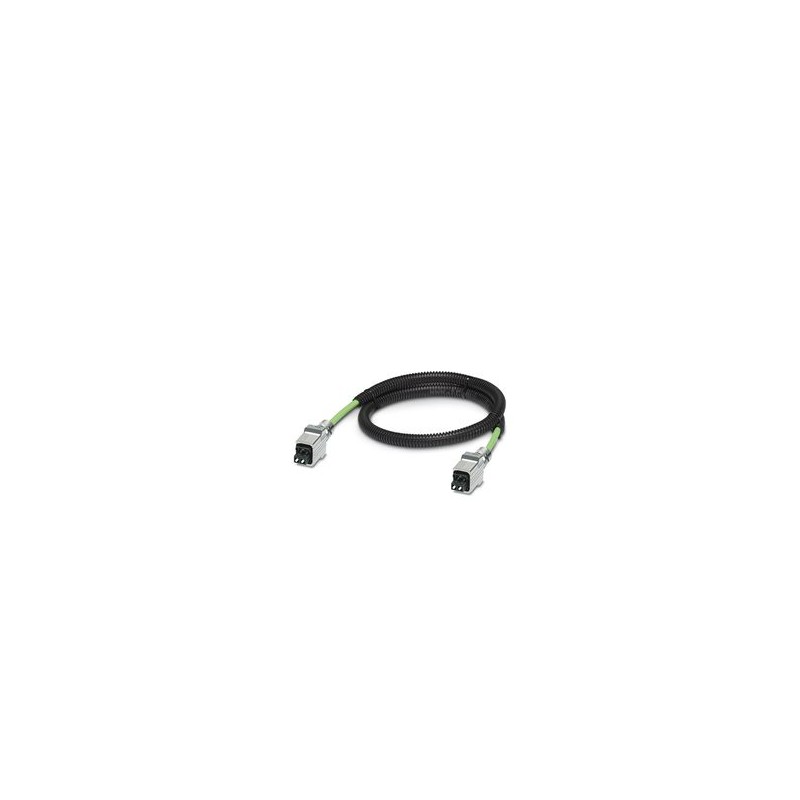

FOC-SJ:14-SJ:14-HB02/18,0PRG01 1500186 PHOENIX CONTACT Pre-assembled fibre optic cable, PROFINET type B cabl..
FOC-SJ:14-SJ:14-HB02/18,0PRG01
1500186
PHOENIX_CONTACT
9
Pre-assembled fibre optic cable, PROFINET type B cable, PCF fibre 200/230 μm, on both sides Push-Pull metal box SC-RJ/IP67, PVC outer sheath, halogen-free, ozone and UV resistant, in protective tube, for fixed indoor disposal, length: 13 m
Patch cable for fiber optics
Pre-assembled fibre optic cable, PROFINET cable type B, PCF fibre 200/230 μm, Push-Pull metal housing SC-RJ/IP67 on both sides, PVC outer sheath, halogen-free, UV and ozone resistant, in protective tube, for fixed indoor installation, length: 13 m
Data and telecommunication > Patch cord fibre optic industry
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Packaged data cable |
| Sensor Type | Ethernet |
| No. of poles | 2 |
| Application | Standard |
| Cable outlet | right |
| Transmission medium | PCF Fiber |
| Connection 2 | |
| type | Male |
| Cable Length | 18.00 m |
| Line Weight | 45 kg/km |
| Acronym | AT-V(ZN)YY 2K200/230 HCS |
| Conductor Outer Diameter | 7.2 mm |
| Outer Sheath, Material | PVC |
| Outer sheath, resistant elements | Non-metallic, aramid fiber |
| Single wire, lead quantity | 2 |
| Single Conductor, Material | PVC |
| Single conductors, diameter | 2.2 mm ±0.1 mm |
| Short/constant tensile strength | 800 N / 100 N |
| Short transverse pressure | 500 N/cm |
| Constant transverse pressure | 300 N/cm |
| Single element bending radius | 30 mm (in a short time) |
| 30 mm (in a short time) | |
| Overall cable bend radius | 70 mm (in a short time) |
| 70 mm (in a short time) | |
| 660 nm | 10 dB/km |
| 850 nm | 8 dB/km |
| Oil Resistance | High resistance to chemicals and oils |
| Fire resistance | Flame retardant according to IEEE and/or IEC 60 332-3 test type C |
| Environmental conditions | |
| Degree of protection | IP67 |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 18 m |
| Degree of protection (IP) (EF005474) | IP67 |
