View larger

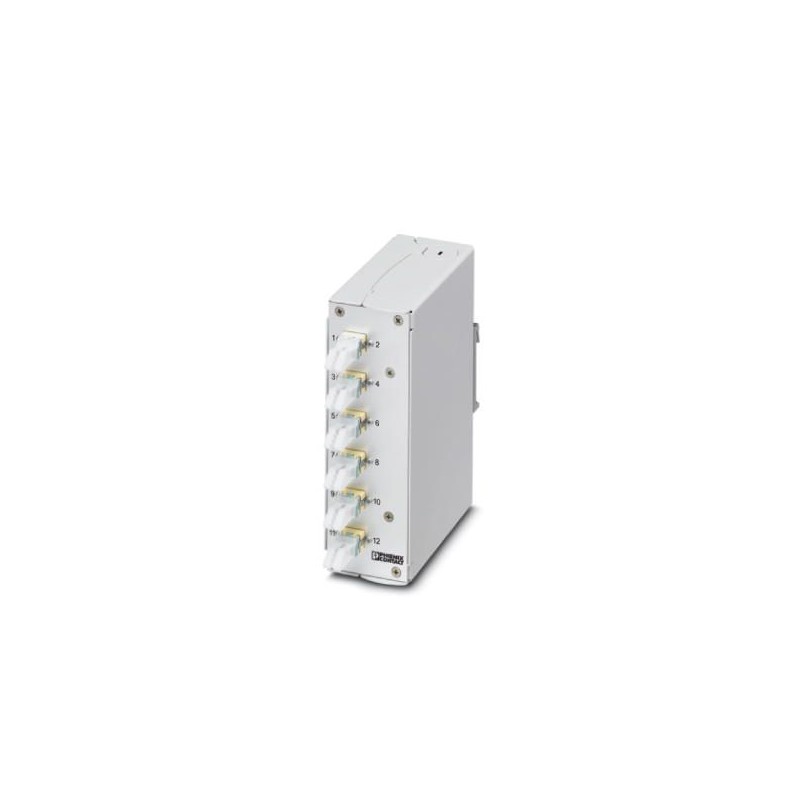

FOC-PP-SB-LC:6-OM2-PT 1420318 PHOENIX CONTACT Splice box
FOC-PP-SB-LC:6-OM2-PT
1420318
PHOENIX_CONTACT
Splice box
Data and telecommunication > Accessories/spare parts for communication technique
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1420318 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 385 (C-2-2017) |
| GTIN | 4055626228242 |
| Weight per Piece (excluding packing) | 836.100 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of slots | 6 |
|---|---|
| Connection profile | LC-Duplex |
| Fiber type | GOF |
| Ferrule diameter | 1.25 mm |
| Connection method | Splicing |
| Cable outlet | top |
| Type of cable | For all common cable types |
| Cable structure | Semi-loose compact wires (STB) |
| Color | light grey RAL 7035 |
| Mounting type | DIN rail mounting |
| Degree of protection | IP20 |
| Type | Rail-mountable module |
| No. of cable outlets | 2 |
| Type of note | Order information: |
| Note | DIN rail splice box without pigtails and splice comb is available under Order No. 1411901 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 70 °C (according to IEC 61300-2) |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C (according to IEC 61300-2) |
| Degree of protection | IP20 |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | Sheet steel |
| Housing surface material | Powder-coated, gray |
| Ferrule material | Zirconia ceramics |
| Housing width | 52 mm |
| Depth | 110 mm |
| Height | 150 mm |
Line characteristics
| Type of cable | For all common cable types |
|---|---|
| Cable type | Multimode fiberglass |
| Cable structure | Semi-loose compact wires (STB) |
| Transmission medium | FO |
| Number of fibers | 12 |
| Fiber type | Multi-mode 50/125 µm fiberglass |
| Fiber | GOF |
| Attenuation | ≤ 0.3 dB (with 850 nm) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.119069290eCl@ss 5.127370419eCl@ss 6.019069200eCl@ss 7.019069290eCl@ss 8.019069290eCl@ss 9.019069290
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
