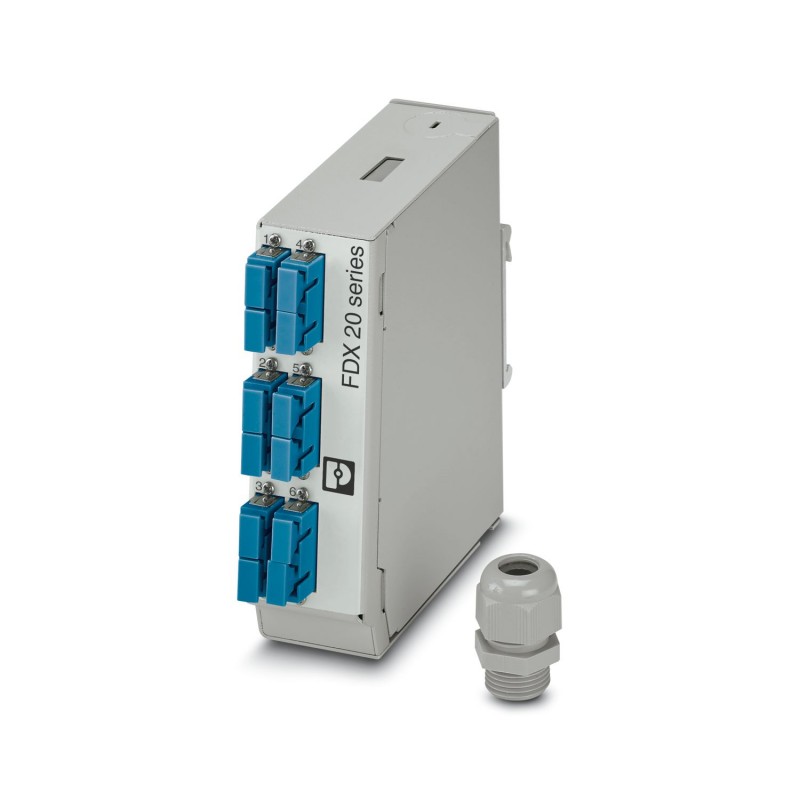

FOC-FDX20-PP-SCD6-SM 1084827 PHOENIX CONTACT DIN rail splice box, without pigtails, for 6x SC duplex
FOC-FDX20-PP-SCD6-SM
1084827
PHOENIX_CONTACT
DIN rail splice box, without pigtails, for 6x SC duplex
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1084827 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4055626823881 |
| Weight per Piece (excluding packing) | 740.000 g |
| Custom tariff number | 85367000 |
| Country of origin | DE (Germany) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Mechanical characteristics
| Connection method | Cable gland M20 |
|---|---|
| Number of slots | 12 |
| Minimum external conductor diameter | 6 mm |
| Maximum external conductor diameter | 12 mm |
| Cable outlet | above and below |
| No. of cable outlets | 2 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (assembly) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 (according to IEC 60529) |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Height | 130 mm |
| Housing material | Sheet steel |
| Housing surface material | Powder-coated, gray |
Line characteristics
| Type of cable | For all common cable types |
|---|---|
| Cable type | Fiberglass |
| Transmission medium | FO |
| Number of fibers | 12 |
| Fiber | GOF |
| Flame resistance | yes |
Standards and Regulations
| Flame resistance | yes |
|---|---|
| Resistance to UV radiation | yes |
| Flammability rating according to UL 94 | V0 |
| Shock | DIN EN 61300-2-9: 2015-09 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
