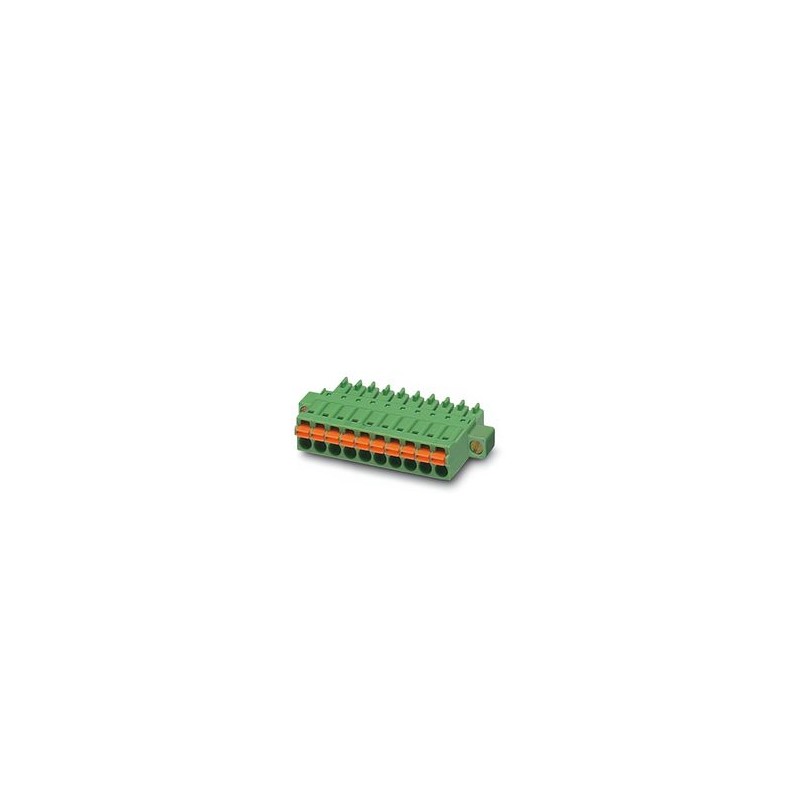

FMC 1,5/ 7-STF-3,81 BK 1571960 PHOENIX CONTACT Connector for printed circuit board, nominal section: 1.5 mm²..
FMC 1,5/ 7-STF-3,81 BK
1571960
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Connector for printed circuit board, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Sn, contact connection type: Female, number of rows: 1, number of poles: 7, family of articles: FMC 1.5/.. -STF, pitch: 3.81 mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 0°, plug-in system: COMBICON FMC 1.5 - MCDN 1.5, locking: Screw lock, fixing type: Air clamping (screw), packaging type: boxed
PCB connector, nominal cross-section: 1.5 mm², colour: black, nominal current: 8 A, nominal voltage (III/2): 160 V, surface contacts: Tin, contact type: Female, number of rows: 1, number of poles: 7, article family: FMC 1.5/.. -STF, pitch: 3.81mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON MC 1.5, locking: Screw locking, fixing type: Overhead clamping (screw), packing type: boxed packaging
PCB connector, nominal cross-section: 1.5 mm2, colour: black, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: tin, contact connection type: Female, number of rows: 1, number of poles: 7, product series: FMC 1.5/.. -STF, pitch: 3.81 mm, connection type: Push-in spring connection, conductor/board connection direction: 0 °, plug system: COMBICON MC 1.5, locking: Screw locking, fixing type: Screw flange, packaging type: packed in carton
Connectors > Cable connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | COMBICON Connectors S |
| Product Type | Printed circuit board connector |
| Product Family | FMC 1.5/.. -STF |
| No. of poles | 7 |
| Step | 3.81 mm |
| Number of rows | 1 |
| Rated Current IN | 8 A |
| Rated voltage UN | 160 V |
| Degree of pollution | 3 |
| Mass Resistivity | 1.8 mΩ |
| Sizing voltage (III/3) | 160 V |
| Sizing impulse voltage (III/3) | 2.5 kV |
| Sizing voltage (III/2) | 160 V |
| Sizing Impulse Voltage (III/2) | 2.5 kV |
| Sizing voltage (II/2) | 320 V |
| Sizing Impulse Voltage (II/2) | 2.5 kV |
| Connection technology | |
| type | Standard |
| Connector system | COMBICON MC 1.5 |
| Nominal cross-section | 1.5 mm² |
| Contact Connection Type | female |
| Blockage | |
| Clamping Type | Screw locking |
| Fixing flange | Screw flange |
| Tightening torque | 0.3 Nm |
| Conductor connection | |
| Link | Push-in spring connection |
| Conductor/board connection direction | 0 ° |
| Rigid conductor cross-section | 0.2 mm² ... 1.5 mm² |
| Flexible conductor cross-section | 0.2 mm² ... 1.5 mm² |
| Conductor cross-section AWG | 24 ... 16 |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 1.5 mm² |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.14 mm² ... 0.75 mm² |
| Buffer Gauge a x b / diameter | 2.4 mm x 1.5 mm / 1.6 mm |
| Length of the section to be stripped | 10 mm |
| Indications for ferrules without isolation collar | |
| Recommended crimping tool | 1212034 CRIMPFOX 6 |
| cable lug without insulating collar, in accordance with DIN 46228-1 | Cross-section: 0.25 mm²; Length: 7 mm |
| Cross-section: 0.34 mm²; Length: 7 mm | |
| Cross-section: 0.5 mm²; Length: 8 mm 10 mm | |
| Cross-section: 0.75 mm²; Length: 8 mm 10 mm | |
| Cross-section: 1 mm²; Length: 8 mm 10 mm | |
| Cross-section: 1.5 mm²; Length: 10 mm | |
| Indications for ferrules with isolation collar | |
| Recommended crimping tool | 1212034 CRIMPFOX 6 |
| cable lug with insulating collar, in accordance with DIN 46228-4 | Cross-section: 0.14 mm²; Length: 8 mm |
| Cross-section: 0.25 mm²; Length: 8 mm ... 10 mm | |
| Cross-section: 0.34 mm²; Length: 8 mm ... 10 mm | |
| Cross-section: 0.5 mm²; Length: 8 mm 10 mm | |
| Cross-section: 0.75 mm²; Length: 10 mm | |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Hot-dip galvanizing |
| Metal Surface, Connection Point (Surface Layer) | Tin (4 - 8 μm Sn) |
| Metal surface contact zone (surface layer) | Tin (4 - 8 μm Sn) |
| Material information - case | |
| Color (Case) | Black (9005) |
| Insulation material | PA |
| Insulation Material Group | The |
| CTI according to IEC 60112 | 600 |
| Combustibility class according to UL 94 | V0 |
| Flammability index of GWFI filament according to EN 60695-2-12 | 850 |
| GWIT filament ignition temperature according to EN 60695-2-13 | 775 |
| Brinell hardness test temperature according to EN 60695-10-2 | 125 °C |
| Material data - drive element | |
| Insulation material | PBT |
| Insulation Material Group | IIIa |
| CTI according to IEC 60112 | 275 |
| Combustibility class according to UL 94 | V0 |
| Dimensioned Drawing |  |
| Step | 3.81 mm |
| Width [w] | 36.76 mm |
| Height [h] | 7.8 mm |
| Length [l] | 22.9 mm |
| Flange | |
| Tightening torque | 0.3 Nm |
| Conductor connection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Conductor Integrity and Stability Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Repeated connection and disconnection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Test passed |
| Tensile test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tensile force nominal value/actual value | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Insertion/tensile force | |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 8 N |
| Tensile force per pole approx. | 6 N |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep Speed | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 2.95 kV |
| Mass Resistivity R1 | 1.8 mΩ |
| Mass Resistivity R2 | 1.9 mΩ |
| Manoeuvring cycles | 25 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Climate control | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Stress due to corrosion | 0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle |
| Stress due to the effect of heat | 105 °C/168 h |
| Fixed AC voltage | 1.39 kV |
| Shock | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Form | Semi-sinusoidal |
| Acceleration | 30g |
| Shock Duration | 18 ms |
| Test Directions | X, Y and Z axis (pos. and neg.) |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 105 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Thermal Test Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 20 |
| Insulation Resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Between Contiguous Poles | > 5 MΩ |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | The |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2 mm |
| Rated Isolation Voltage (III/2) | 160 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 1.5 mm |
| Rated Isolation Voltage (II/2) | 320 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 1.6 mm |
| Packaging | Packed in carton |
