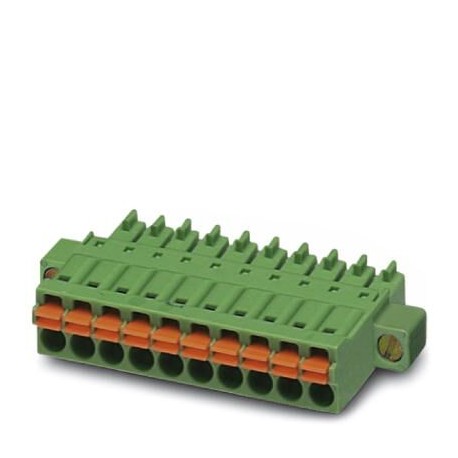

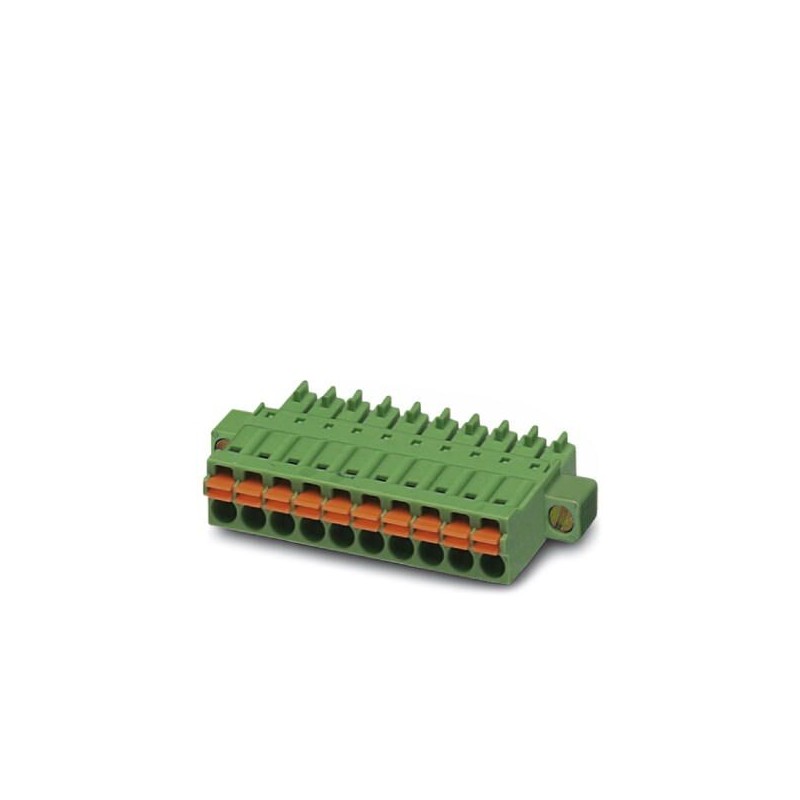

FMC 1,5/12-STF-3,81AUCNBDWH393 1814126 PHOENIX CONTACT PCB connector, nominal current: 8 A, rated voltage (I..
FMC 1,5/12-STF-3,81AUCNBDWH393
1814126
PHOENIX_CONTACT
50
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 12, pitch: 3.81 mm, connection method: Push-in spring connection, color: black, contact surface: Gold
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million eight hundred fourteen thousand one hundred twenty six |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AAAEAB - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million seven hundred forty six thousand five hundred forty |
| Unit weight (excluding packaging) | 7,173 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 22,9 mm |
|---|---|
| Width [ w ] | 55,81 mm |
| Height [ h ] | 7.8 mm |
| Step | 3,81 mm |
| Average | 41,91 mm |
Overview
| Family of articles | FMC 1,5/..-STF |
|---|---|
| Number of poles | Twelve |
| Type of connection | Connection by spring loaded push-in |
| Tension and sizing (III/3) | 160 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 8 To |
| Nominal cross section | 1.5 mm2 |
Data connection
| Core cross-section rigid min. | 0,2 mm2 |
|---|---|
| Section of conductor rigid max. | 1.5 mm2 |
| Section of flexible conductor, min. | 0,2 mm2 |
| Section of flexible conductor max. | 1.5 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. | 1.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. | 0.25 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. | 0.75 mm2 |
| Section of conductor AWG min. | Twenty four |
| Section of conductor AWG max. | Sixteen |
| AWG according to UL/CUL min. | Twenty four |
| AWG according to UL/CUL max. | Sixteen |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred ten |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
