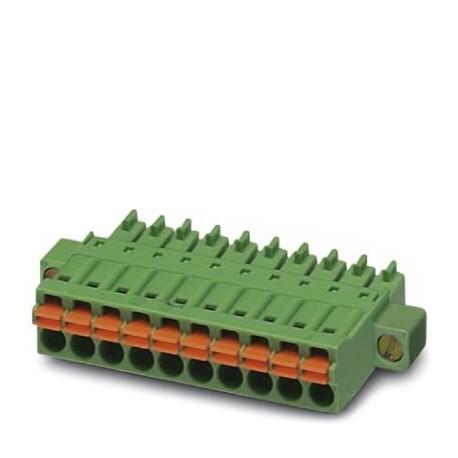

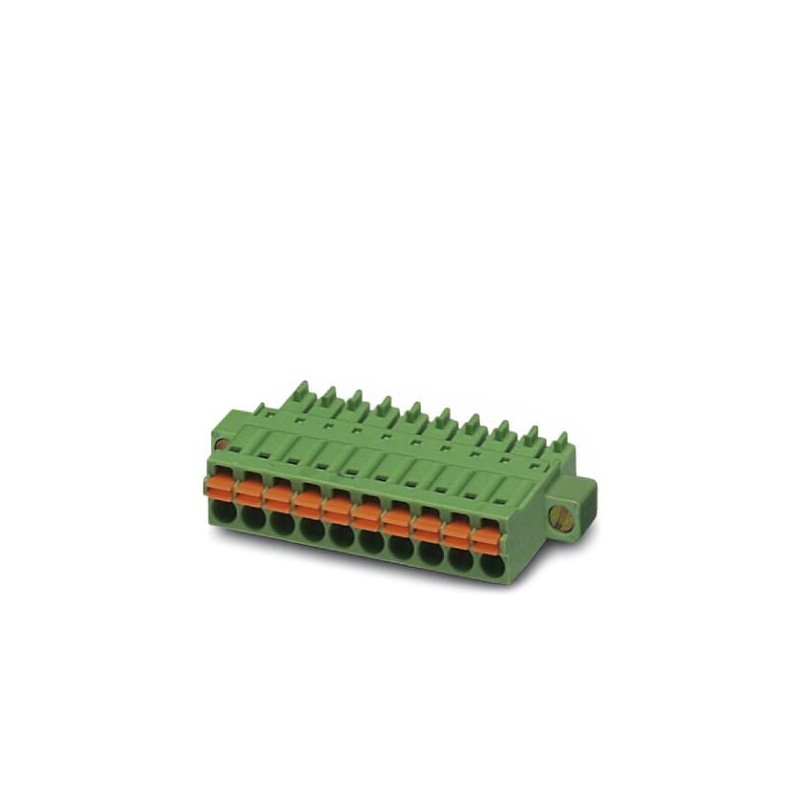

FMC 1,5/12-STF-3,81AUCNBDWH389 1814210 PHOENIX CONTACT PCB connector, nominal current: 8 A, rated voltage (I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FMC 1,5/12-STF-3,81AUCNBDWH389 1814210 PHOENIX CONTACT PCB connector, nominal current: 8 A, rated voltage (I..

FMC 1,5/12-STF-3,81AUCNBDWH389

1814210

PHOENIX_CONTACT

50

PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 12, pitch: 3.81 mm, connection method: Push-in spring connection, color: black, contact surface: Gold

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Key Commercial Data

Orderkey1814210
Packing unit1
GTIN4046356746526
Custom tariff number85366990

Dimensions

Length [ l ]22.9 mm
Width [ w ]55.81 mm
Height [ h ]7.8 mm
Pitch3.81 mm
Dimension a41.91 mm
Back to top

General

Range of articlesFMC 1,5/..-STF
Number of positions12
Connection methodPush-in spring connection
Rated voltage (III/3)160 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²
Back to top

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16
Minimum AWG according to UL/CUL24
Maximum AWG according to UL/CUL16
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440309
eCl@ss 8.027440309
eCl@ss 9.027440309
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002638
ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
Back to top

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 19.039121409
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
