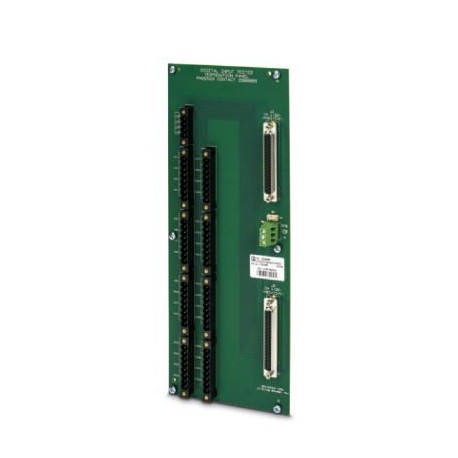

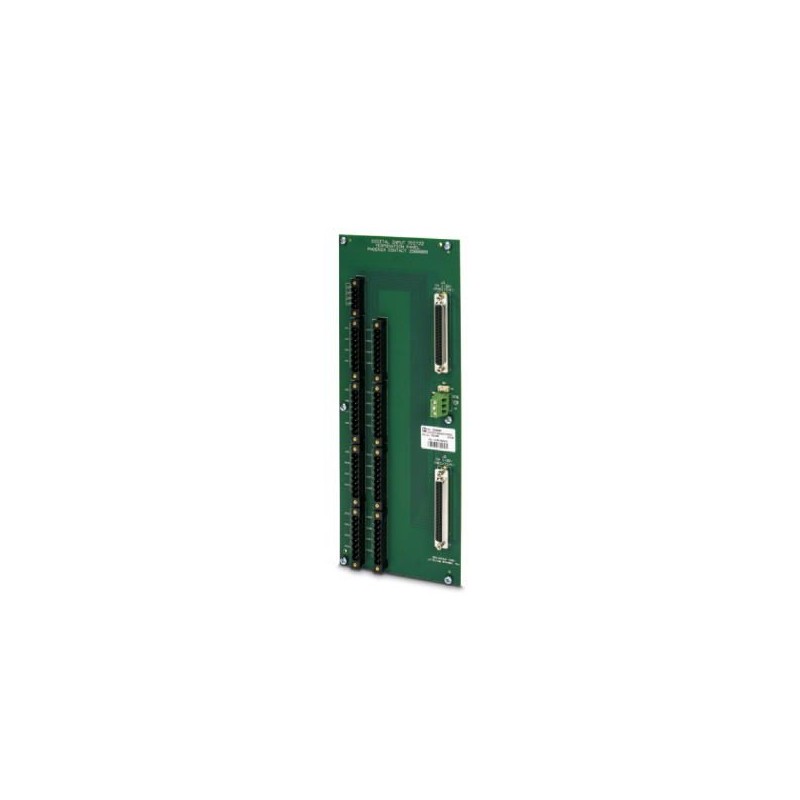

FLX-D37F/32CH/DI/TDC3K 2908889 PHOENIX CONTACT Interface module
FLX-D37F/32CH/DI/TDC3K
2908889
PHOENIX_CONTACT
Interface module
Transfer module for conversion of TDC3000 to modern control platforms, digital input, 32 channels
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2908889 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626733067 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85176200 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
General
| Max. operating voltage Umax | 30 V DC (Power supply) |
|---|---|
| Operating voltage | 30 V DC |
| Max. operating voltage | 30 V DC (Power supply) |
| Max. perm. current (per branch) | 500 mA |
| Max. permissible power (voltage feed) | 5 A (fuse limited) |
| Mounting position | any |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | pluggable |
| Channels which can be connected | 32 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 2 |
| Number of positions | 37 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, control sided (EF008549) | D-Sub |
| Number of poles (EF001391) | 37 |
| Rated voltage (EF000228) | 30 V |
| Rated current (EF000227) | 0.5 A |
| Depth (EF000049) | 38.3 mm |
| Width (EF000008) | 307.3 mm |
| Height (EF000040) | 120.7 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
