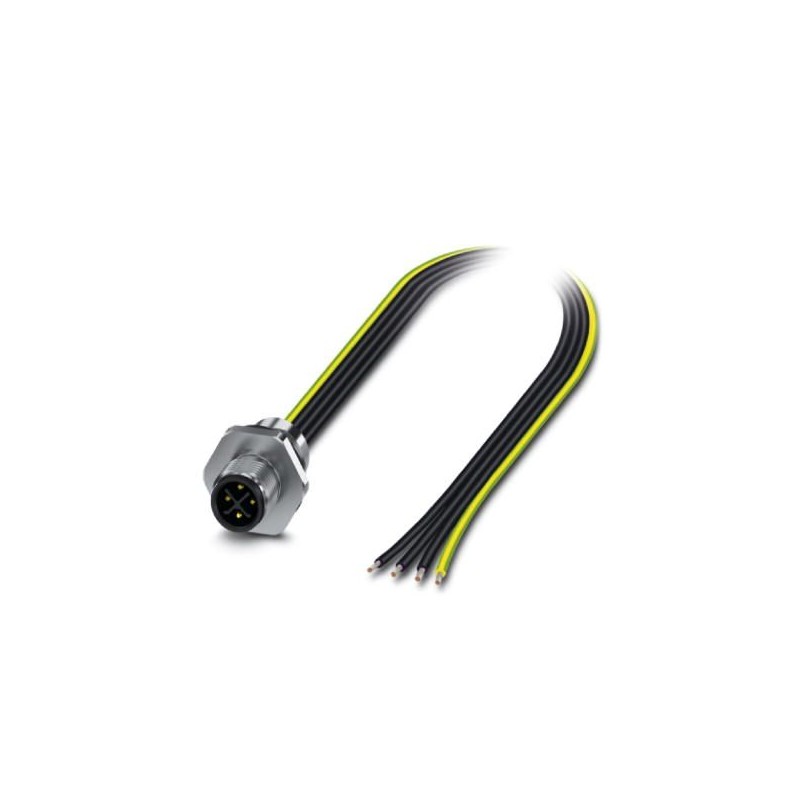

SACC-E-M12MSS-4P-M16XL/0,5 PE 1411607 PHOENIX CONTACT Flush-type connector, Power, 4-position, SocketLink:M1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

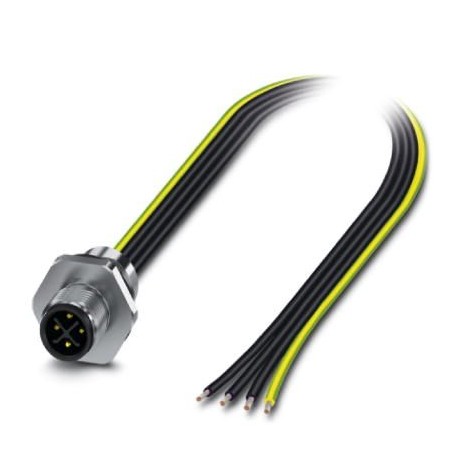

SACC-E-M12MSS-4P-M16XL/0,5 PE 1411607 PHOENIX CONTACT Flush-type connector, Power, 4-position, SocketLink:M1..

SACC-E-M12MSS-4P-M16XL/0,5 PE

1411607

PHOENIX_CONTACT

Available

Ship on today

Flush-type connector, Power, 4-position, SocketLink:M12, S power, Front mounting, M16 x 1.5, Individual wires, Cable length: 0.5 m

More details


PLUSCON Field cabling - PHOENIX CONTACT

Circular connector - PLUSCON circular - PHOENIX CONTACT

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



Dimensions

Length of cable0.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C12 A
Rated voltage630 V
Rated surge voltage6 kV
Number of positions4
Insulation resistance≥ 100 MΩ
CodingS power
Standards/regulationsM12 connector
Signal type/categoryPower
Status displayNo
Overvoltage categoryIII
Pollution degree3
Test voltage6 kV
Connection methodIndividual wires
Insertion/withdrawal cycles> 100
Torque0.8 Nm ... 1.3 Nm (Installation-side)
Mounting typeFront mounting M16 x 1.5 Tightening limitation

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA
Material, knurlsZinc die-cast, nickel-plated
Sealing materialFKM

Cable

Cable typePP litz wire
Conductor cross section1.5 mm²
AWG signal line16
Wire colorsBlack 1, black 2, black 3, green/yellow
Material conductor insulationPP
Conductor materialBare Cu litz wires
Ambient temperature (operation)-40 °C ... 90 °C (cable, fixed installation)
-30 °C ... 90 °C (cable, flexible installation)

Datasheet - PDF

Title: Language: Size: Type:
PHOENIX CONTACT-1411607-SACC-E-M12MSS-4P-M16XL/0,5 PE English 118 Kbytes PHOENIX CONTACT-1411607-SACC-E-M12MSS-4P-M16XL/0,5 PE
