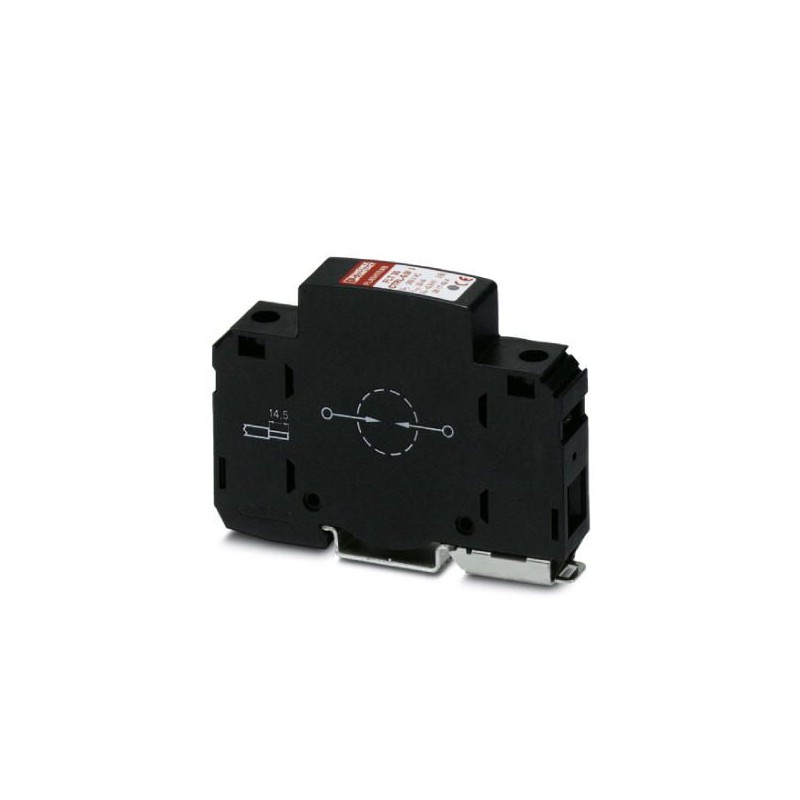

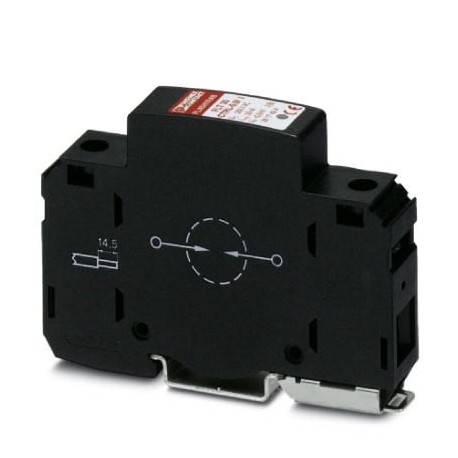

FLT 35 CTRL-4.0/I 2801636 PHOENIX CONTACT Combination type 1/2 protective device
FLT 35 CTRL-4.0/I
2801636
PHOENIX_CONTACT
Combination type 1/2 protective device
Trabtech (TT)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2801636 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356907668 |
| Weight per Piece (excluding packing) | 165.100 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP20 (only when all terminal points are used) |
|---|---|
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Permissible humidity (operation) | 5 % ... 95 % |
General
| IEC test classification | I |
|---|---|
| T1 | |
| EN type | T1 |
| IEC power supply system | TT |
| TN-S | |
| Mode of protection | L-PEN |
| Mounting type | DIN rail: 35 mm |
| Color | black |
| Housing material | PA 6.6 |
| Degree of pollution | 2 |
| Flammability rating according to UL 94 | V-0 |
| Type | DIN rail module, one-piece |
| Number of positions | 1 |
| Surge protection fault message | optical |
Protective circuit
| Nominal voltage UN | 230/400 V AC (TN) |
|---|---|
| 230/400 V AC (TT) | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous operating voltage UC(L-PEN) | 260 V AC |
| Rated load current IL | 80 A |
| Residual current IPE | ≤ 2.5 mA |
| Standby power consumption PC | ≤ 650 mVA |
| Impulse discharge current (10/350) µs (L-PEN), charge | 17.5 As |
| Impulse discharge current (10/350) µs (L-PEN), specific energy | 306 J/Ω |
| Impulse discharge current (10/350) µs (L-PEN), peak current value Iimp | 35 kA |
| Follow current interrupt rating Ifi(L-PEN) | 3 kA |
| Short-circuit current rating ISCCR | 3 kA |
| Voltage protection level Up(L-PEN) | ≤ 4 kV |
| TOV behavior at UT(L-PEN) | 440 V AC (5 s / withstand mode) |
| 440 V AC (120 min / withstand mode) | |
| Response time tA(L-PEN) | ≤ 100 ns |
| Max. backup fuse with V-type through wiring | 80 A AC (gG) |
| Max. backup fuse with branch wiring | 400 A AC (gG) |
Connection data
| Connection method | Screw terminal blocks |
|---|---|
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| Stripping length | 14.5 mm |
| Conductor cross section flexible | 2.5 mm² ... 25 mm² |
| Conductor cross section solid | 2.5 mm² ... 35 mm² |
| Conductor cross section AWG | 6 ... 2 |
Classifications
eCl@ss 4.027140201eCl@ss 4.127140201eCl@ss 5.027140201eCl@ss 5.127130800eCl@ss 6.027130800eCl@ss 7.027130802eCl@ss 8.027130802eCl@ss 9.027130802
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN.pdf | 27 Mbytes |
|
