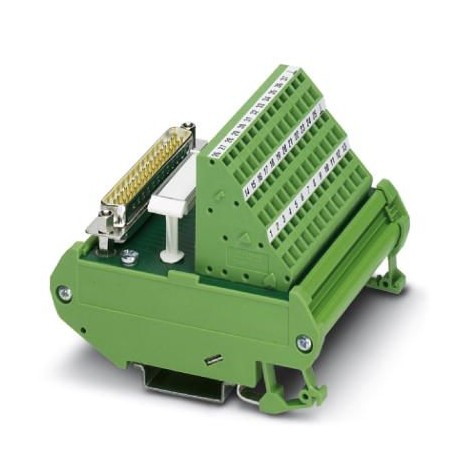

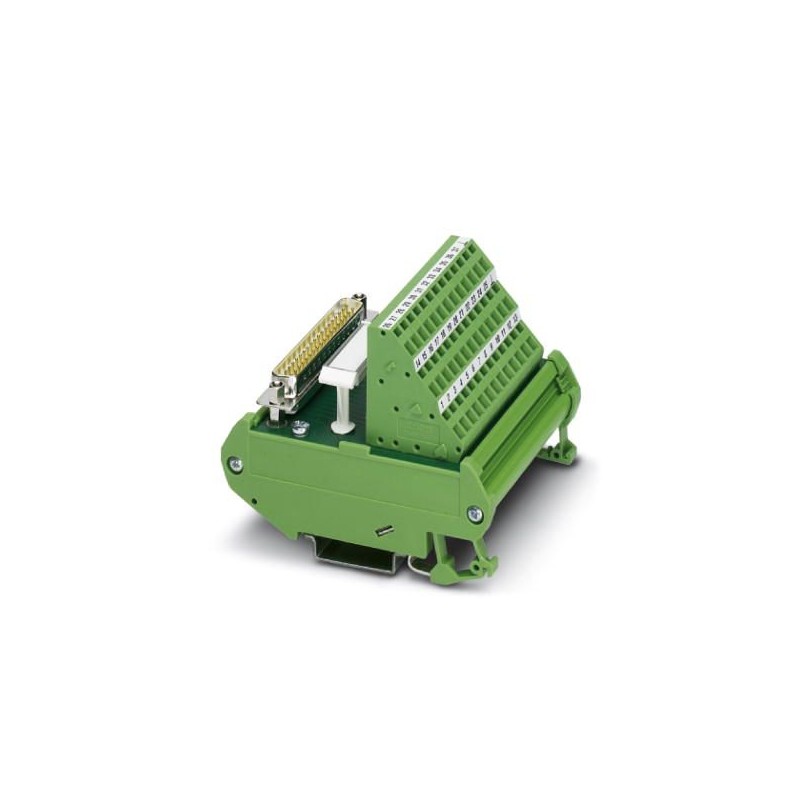

FLKMS-D37 SUB/S/ZFK3DS/PE 2295965 PHOENIX CONTACT Interface module
FLKMS-D37 SUB/S/ZFK3DS/PE
2295965
PHOENIX_CONTACT
Interface module
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2295965 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918464530 |
| Weight per Piece (excluding packing) | 131.720 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
General
| Max. perm. operating voltage | 25 V AC (60 V DC) |
|---|---|
| Max. perm. current (per branch) | 2.5 A |
| Number of positions | 37 |
| Status display | No |
| Mounting position | any |
| Degree of protection | IP00 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Spring-cage connection |
| Stripping length | 7 mm |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Number of positions | 39 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of positions | 37 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178: 1998-04 |
| Rated insulation voltage | 125 V |
| Rated surge voltage | 1.2 kV (1.2/50 μs) |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
