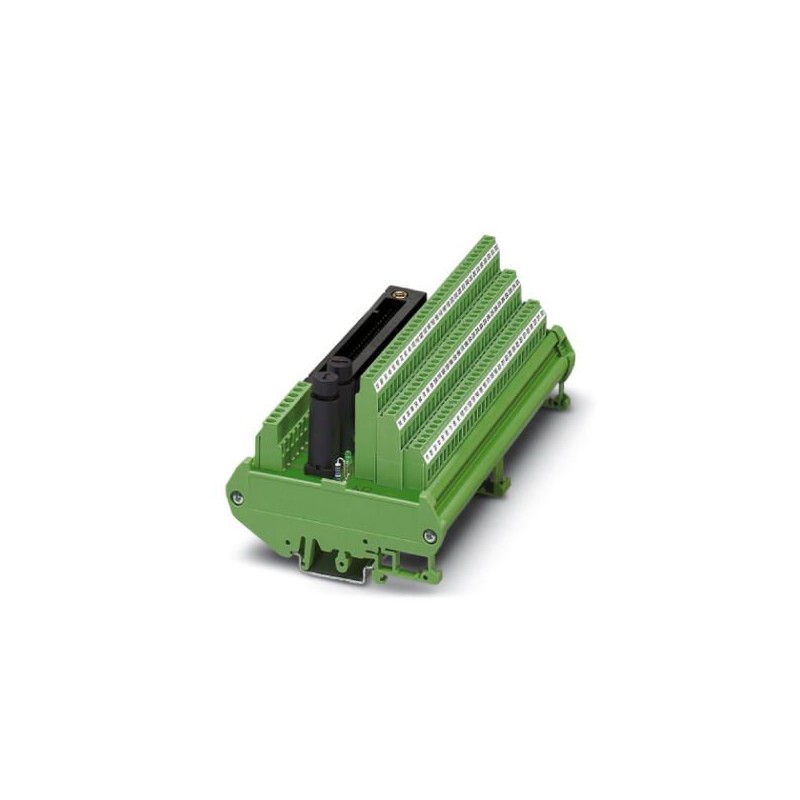

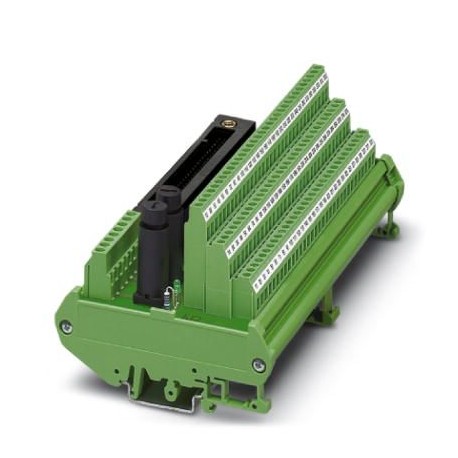

FLKMS-2KS50/32IM/YCS 2901896 PHOENIX CONTACT Passive module
FLKMS-2KS50/32IM/YCS
2901896
PHOENIX_CONTACT
Passive module
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 24 V DC ±10 % |
|---|---|
| Max. perm. current (per branch) | 1 A |
| Max. permissible current (separate power supply) | 2 A (50 °C) |
| 1.8 A (60 °C) | |
| 1.5 A (70°C) | |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 2 |
| Number of positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Supported controller
| Controller | YOKOGAWA CS3000 CentumVP |
|---|---|
| - suitable I/O card | ADV151 |
| ADV161 | |
| ADV551 | |
| ADV561 | |
| Controller | YOKOGAWA STARDOM |
| - suitable I/O card | NFDV151 |
| NFDV161 | |
| NFDV551 | |
| NFDV561 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated surge voltage | basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
