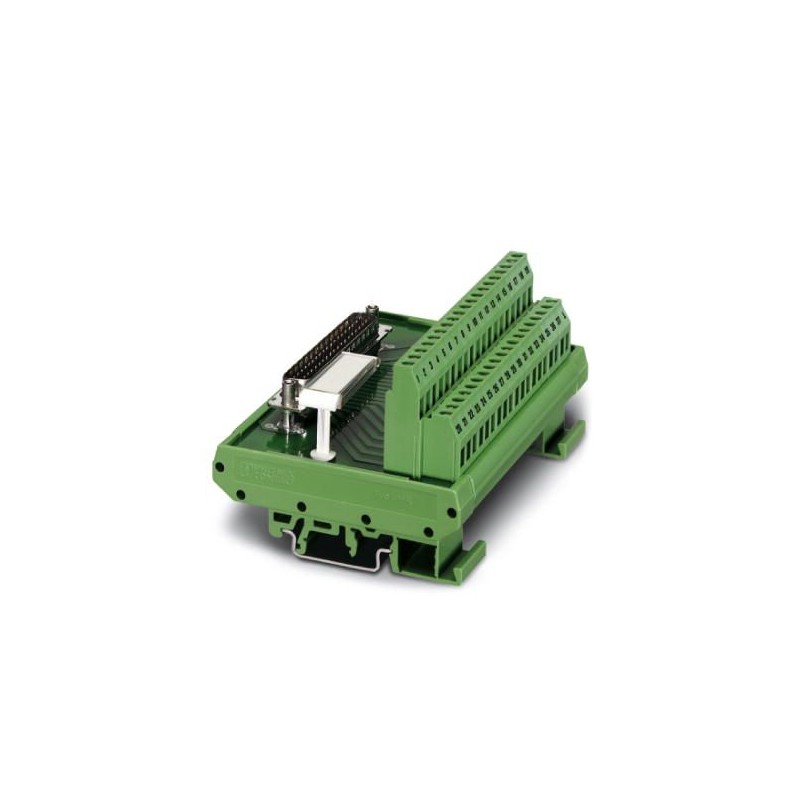

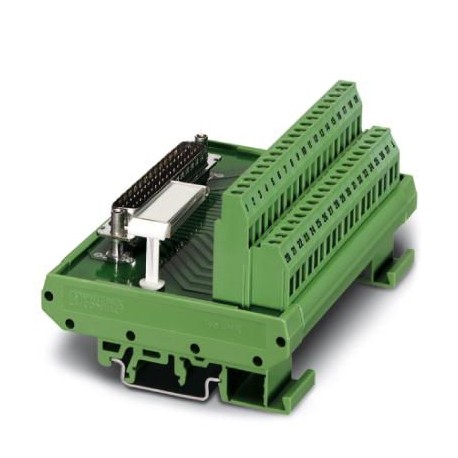

FLKM-D 9 SUB/B 2281186 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FLKM-D 9 SUB/B 2281186 PHOENIX CONTACT Interface module

FLKM-D 9 SUB/B

2281186

PHOENIX_CONTACT

Available Ship on today

New orders for this item will be processed from April 13

Interface module

More details


INTERFACE Components (IF)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $60.03
Unit price: $60.03

Quantity Price
1+$60.03
2+$60.03
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 2281186
Packing unit 10 pc
Catalog pagePage 248 (IF-2007)
GTIN4017918054618
Weight per Piece (excluding packing)70.980 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width33.8 mm
Height77 mm
Depth58.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2.5 A
1.5 A (with even load on all branches)
Number of positions9
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage125 V
Rated surge voltage1.2 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
