View larger

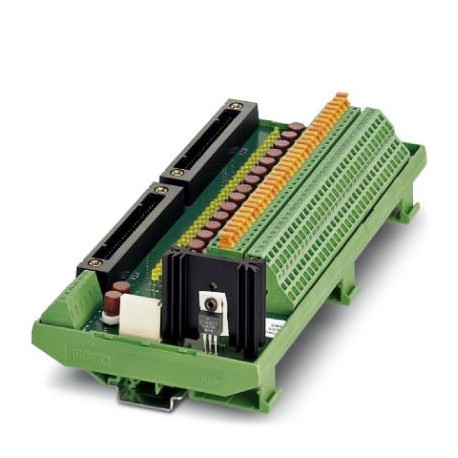

FLKM-2KS50/PMT/ADV151/YCS 2321884 PHOENIX CONTACT Passive module
FLKM-2KS50/PMT/ADV151/YCS
2321884
PHOENIX_CONTACT
Passive module
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2321884 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356563703 |
| Weight per Piece (excluding packing) | 643.000 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Note | Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display. |
|---|---|
| Max. perm. operating voltage | 24 V DC |
| Max. perm. current (per branch) | 63 mA AC (protected by fuse, observe derating) |
| Max. permissible current (all branches) | 2 A (protected by fuse, observe derating) |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Degree of protection | IP00 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of connections | 1 |
| Number of positions | 64 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 2 |
| Number of positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV (Functional insulation) |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
