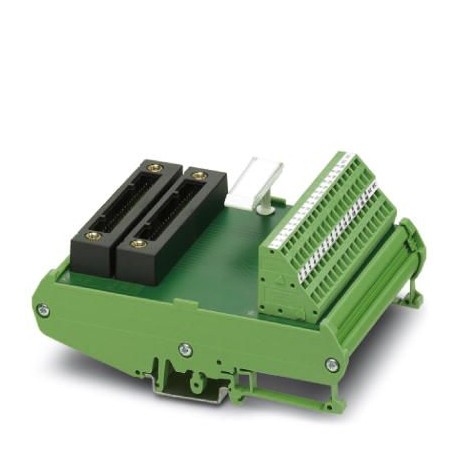

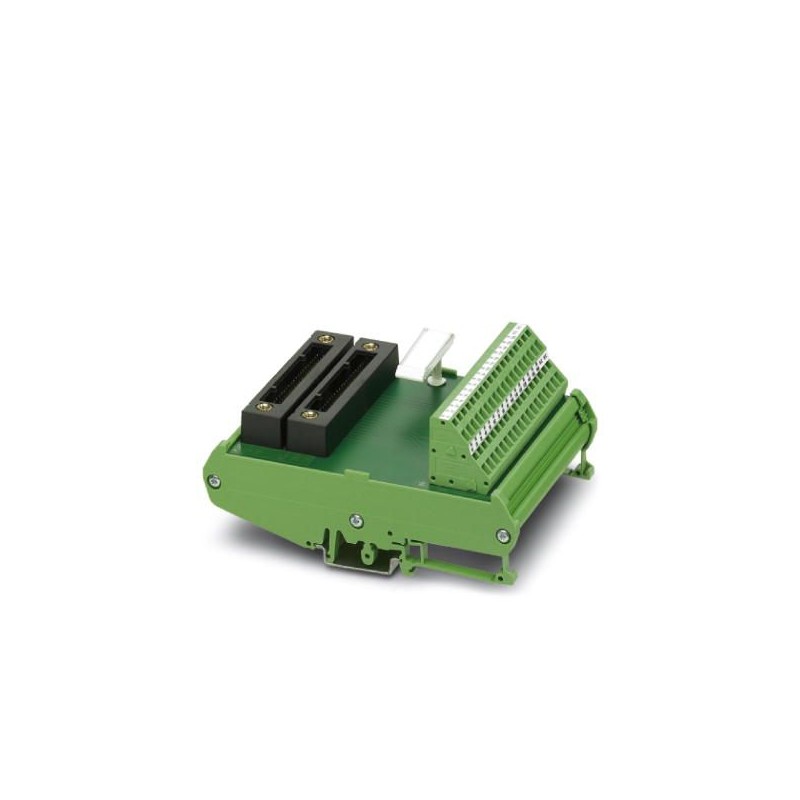

FLKM-2KS40/YCS/ZFKDS 2314752 PHOENIX CONTACT Passive module
FLKM-2KS40/YCS/ZFKDS
2314752
PHOENIX_CONTACT
Passive module
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2314752 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356155601 |
| Weight per Piece (excluding packing) | 160.940 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 24 V DC ±10 % |
|---|---|
| Max. perm. current (per branch) | 100 mA |
| Number of positions | 40 |
| Mounting position | any |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Spring-cage connection |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 1 |
| Number of positions | 40 |
| Note | Usable system cables: Phoenix Contact YUC40, Yokogawa KS1 |
Supported controller
| Controller | YOKOGAWA CS3000 CentumVP |
|---|---|
| - suitable I/O card | AAI543 |
| AAI141 | |
| AAI143 | |
| AAI835 | |
| AAI841 | |
| AAI135 | |
| AAR181 | |
| AAT141 | |
| AAV141 | |
| AAV142 | |
| AAB841 | |
| AAV542 | |
| Controller | YOKOGAWA STARDOM |
| - suitable I/O card | NFAI141 |
| NFAI43 | |
| NFAI543 | |
| NFAI135 | |
| NFAP135 | |
| NFAV141 | |
| NFAV142 | |
| NFAV542 | |
| NFAB841 | |
| NFAI841 | |
| NFAI835 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250300eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
