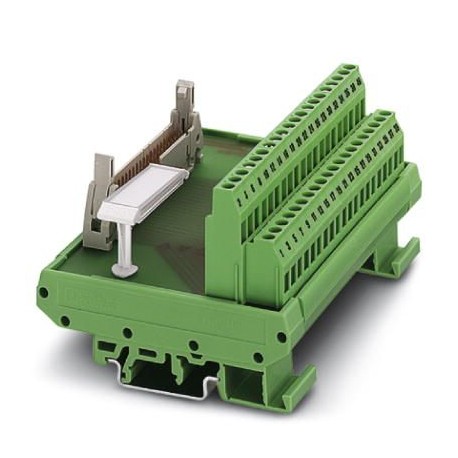

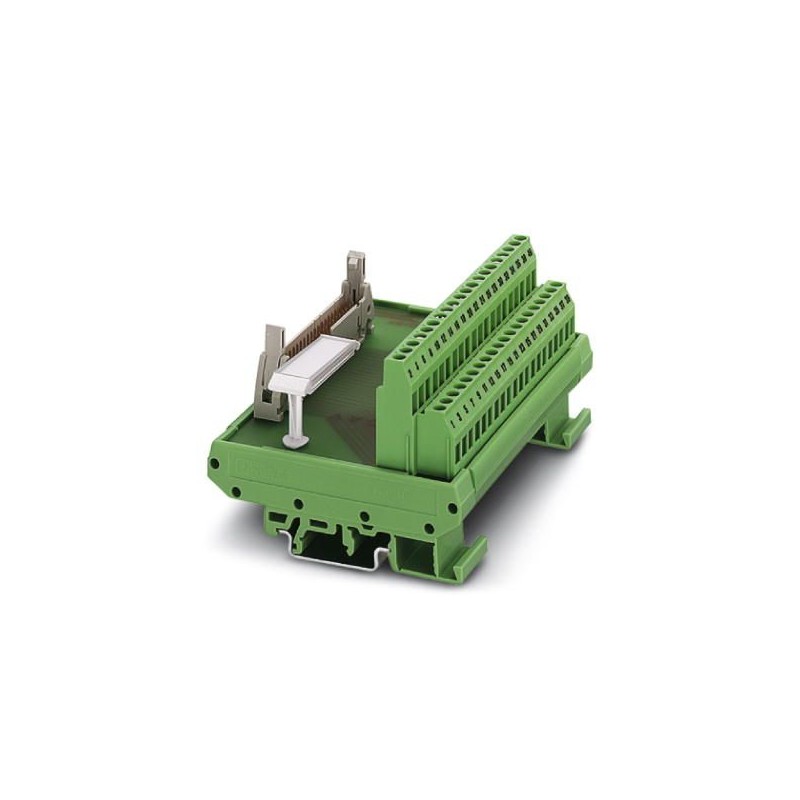

FLKM 20 2281047 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FLKM 20 2281047 PHOENIX CONTACT Interface module

FLKM 20

2281047

PHOENIX_CONTACT

Available Ship on today

New orders for this item will be processed from April 13

Interface module

More details


INTERFACE Components (IF)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $74.47
Unit price: $74.47

Quantity Price
1+$74.47
5+$64.56
9+$60.95
13+$59.30
17+$58.51
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey2281047
Packing unit10 pc
Catalog pagePage 242 (IF-2007)
GTIN4017918054496
Weight per Piece (excluding packing)1.290 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width56.3 mm
Height77 mm
Depth58.5 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage< 50 V AC
60 V DC
Max. perm. current (per branch)1 A
Number of positions20
Status displayNo
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
