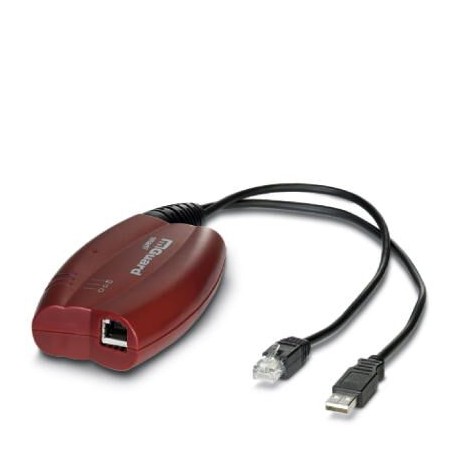

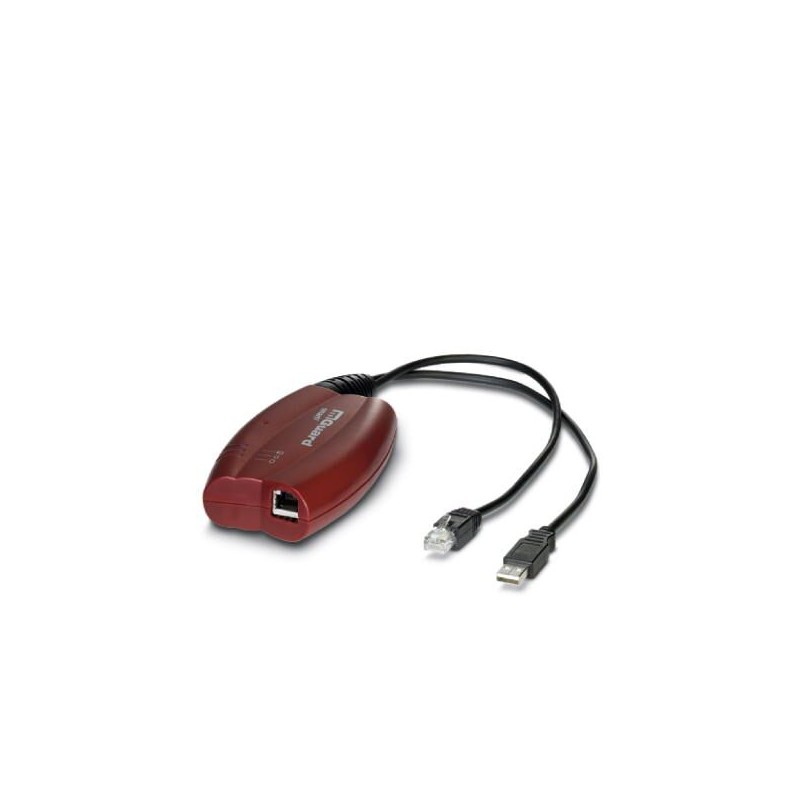

FL MGUARD SMART2 VPN/K1 1053405 PHOENIX CONTACT Router with intelligent firewall, up to 99 Mbps data through..
FL MGUARD SMART2 VPN/K1
1053405
PHOENIX_CONTACT
Router with intelligent firewall, up to 99 Mbps data throughput (wire speed performance), stateful inspection firewall for maximum security and extremely easy configuration, VPN according to IPsec standard, hardware encryption with up to 35 Mbps
Router with intelligent firewall, data throughput up to 99 Mbit/s (Wire Speed Performance), Stateful Inspection firewall for maximum security and ease of configuration, VPN according to IPsec standard, hardware encryption with up to 35 Mbits/s
Data and telecommunication > Network router
I/O
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1053405 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626685359 |
| Weight per Piece (excluding packing) | 180.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Interfaces
| Interface | Ethernet |
|---|---|
| No. of ports | 2 (RJ45) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission speed | 10/100 Mbps |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
Function
| Supported browsers | HTTPS support required |
|---|---|
| Processor | Freescale processor with 300 MHz clocking |
| Signal contact control current | 500 mA (via USB interface or external power supply unit as an option) |
Security functions
| Dynamic Host Configuration Protocol (DHCP) support | Server or Relay Agent |
|---|---|
| Network Time Protocol (NTP) client | Client |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
| Remote Syslog Logging | On externals server |
| Virtual private network (VPN) throughput | max. 42 Mbps (Router mode, VPN bidirectional throughput) |
| max. 27 Mbps (Stealth mode, VPN bidirectional throughput) | |
| Number of VPN tunnels | 10 (up to 250 with license possible) |
| Encryption methods | DES, 3DES, AES-128, -192, -256 |
| Internet Protocol Security (IPsec) mode | ESP tunnel / ESP transport |
| Authentication | X.509v3 certificates with RSA or PSK |
| Data integrity | MD5, SHA-1, SHA 256, SHA-512 |
| 1:1 Network Address Translation (NAT) in the VPN | Supported |
| Firewall data throughput | max. 130 Mbps (Router mode, default firewall rules, bidirectional throughput) |
| max. 61 Mbps (Stealth mode, default firewall rules, bidirectional throughput) | |
| Firewall rules | Configurable stateful inspection firewall |
| Filtering | MAC and IP addresses, ports, protocols |
| Protection against | IP spoofing, DoS and Syn Flood Protection |
| Routing | NAT, 1:1-NAT, Port Forwarding |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|
Classifications
eCl@ss
| eCl@ss 5.0 | 19030100 |
|---|---|
| eCl@ss 5.1 | 19030100 |
| eCl@ss 6.0 | 19170100 |
| eCl@ss 7.0 | 19170103 |
| eCl@ss 8.0 | 19170103 |
| eCl@ss 9.0 | 19170103 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Other |
| Degree of protection (IP) (EF005474) | IP30 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
