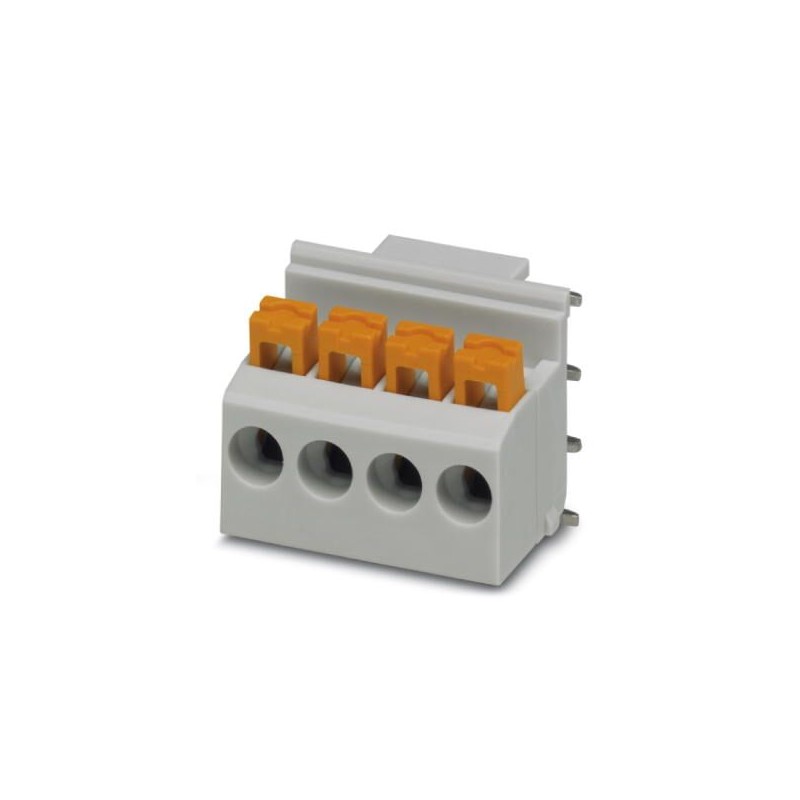

FKDSO 2,5/ 4-R KMGY TP:1-4 1129468 PHOENIX CONTACT PCB terminal block, nominal current: 22 A, rated voltage ..
FKDSO 2,5/ 4-R KMGY TP:1-4
1129468
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
PCB terminal block, nominal current: 22 A, rated voltage (III/2): 250 V, nominal cross section: 2.5 mm², number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °
Terminal block for printed circuit board, nominal current: 22 A, nominal voltage (III/2): 250 V, nominal section: 2.5 mm², number of potentials: 4, number of rows: 1, number of poles per row: 4, family of articles: FKDSO 2.5/.. -R, pitch: 5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: light gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1. Printed variant, item with right side pin output
Connectors > Printed circuit board terminal
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | FKDSO 2,5/..-R |
| Pitch | 5 mm |
| Number of positions | 4 |
| Connection method | Push-in spring connection |
| Mounting type | Wave soldering |
| Number of levels | 1 |
| Number of connections | 4 |
| Number of potentials | 4 |
Connection capacity
| Connection method | Push-in spring connection |
|---|---|
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG / kcmil | 24 ... 14 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Stripping length | 10 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (5 - 7 µm Sn) |
| Metal surface soldering area (top layer) | Tin (5 - 7 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) |
Termination and connection method
| Test for conductor damage and slackening | IEC 60999-1:1999-11 |
|---|---|
| Test passed |
Pull-out test
| Pull-out test | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
| 2.5 mm² / solid / > 50 N | |
| 0.2 mm² / flexible / > 10 N | |
| 4 mm² / flexible / > 60 N |
Electrical tests
| Rated current | 22 A |
|---|---|
| Conductor cross section | 2.5 mm² |
| Rated voltage (III/2) | 250 V |
| Rated surge voltage (III/2) | 4 kV |
Air clearances and creepage distances
| Clearances and creepage distances | IEC 60947-1:2007-06 + A1:2010-12 |
|---|---|
| Specification | IEC 60947-1:2007-06 + A1:2010-12 |
| Rated insulation voltage (III/3) | 250 V |
| Rated insulation voltage (III/2) | 250 V |
| Rated insulation voltage (II/2) | 630 V |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Minimum clearance - inhomogeneous field (III/3) | 3 mm |
| Minimum clearance - inhomogeneous field (III/2) | 3 mm |
| Minimum clearance - inhomogeneous field (II/2) | 3 mm |
| Minimum creepage distance value (III/3) | 3.2 mm |
| Minimum creepage distance value (III/2) | 1.25 mm |
| Minimum creepage distance value (II/2) | 3.2 mm |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
|---|---|
| Result | Test passed |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 - 60.1 Hz) |
| Acceleration | 5 g (60.1 - 150 Hz) |
| Test duration per axis | 2.5 h |
Classifications
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 19.05 mm |
| Number of electrical connections (EF008252) | 4 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 22 A |
| Rated voltage (EF000228) | 250 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 2.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
