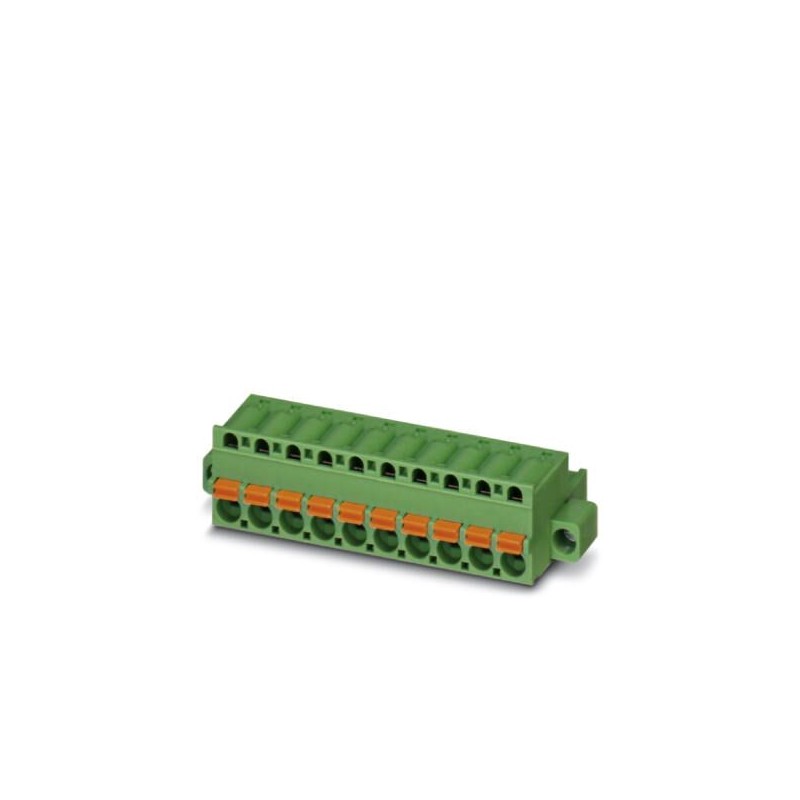

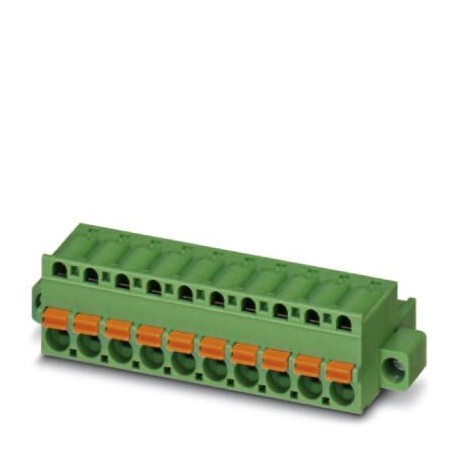

FKC 2,5/20-STF-5,08 BD:1-20
5774289
PHOENIX_CONTACT
50
PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 20, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
PCB connector, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 20, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin
Orderkey | 5774289 |
---|---|
Packing unit | 1 |
GTIN | 4046356149723 |
Custom tariff number | 85366990 |
Length [ l ] | 25.73 mm |
---|---|
Width [ w ] | 111.7 mm |
Height [ h ] | 15 mm |
Pitch | 5.08 mm |
Dimension a | 96.52 mm |
Range of articles | FKC 2,5/..-STF |
---|---|
Number of positions | 20 |
Connection method | Push-in spring connection |
Rated surge voltage (III/3) | 4 kV |
Rated surge voltage (III/2) | 4 kV |
Rated surge voltage (II/2) | 4 kV |
Rated voltage (III/3) | 320 V |
Rated voltage (III/2) | 320 V |
Rated voltage (II/2) | 630 V |
Connection in acc. with standard | EN-VDE |
Nominal current IN | 12 A |
Nominal cross section | 2.5 mm² |
Internal cylindrical gage | A2 |
Stripping length | 10 mm |
Conductor cross section solid min. | 0.2 mm² |
---|---|
Conductor cross section solid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
Conductor cross section flexible, with ferrule without plastic sleeve max. | 2.5 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 |
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 1 mm² |
Minimum AWG according to UL/CUL | 26 |
Maximum AWG according to UL/CUL | 12 |
Recommended crimping pliers | 1212034 CRIMPFOX 6 |
---|---|
Ferrules without insulating collar, according to DIN 46228‑1 | Cross section: 0.5 mm²; Length: 8 mm ... 10 mm |
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm | |
Cross section: 1 mm²; Length: 8 mm ... 10 mm | |
Cross section: 1.5 mm²; Length: 8 mm ... 10 mm | |
Cross section: 2.5 mm²; Length: 10 mm |
Connection in acc. with standard | EN-VDE |
---|---|
CUL |
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
---|---|
No hazardous substances above threshold values |
eCl@ss 4.0 | 272607xx |
---|---|
eCl@ss 4.1 | 27260701 |
eCl@ss 5.0 | 27260701 |
eCl@ss 5.1 | 27260700 |
eCl@ss 6.0 | 27260700 |
eCl@ss 7.0 | 27440309 |
eCl@ss 8.0 | 27440309 |
eCl@ss 9.0 | 27440309 |
ETIM 3.0 | EC001121 |
---|---|
ETIM 4.0 | EC002638 |
ETIM 5.0 | EC002638 |
ETIM 6.0 | EC002638 |
ETIM 7.0 | EC002638 |
UNSPSC 6.01 | 30211810 |
---|---|
UNSPSC 7.0901 | 39121409 |
UNSPSC 11 | 39121409 |
UNSPSC 12.01 | 39121409 |
UNSPSC 13.2 | 39121409 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
