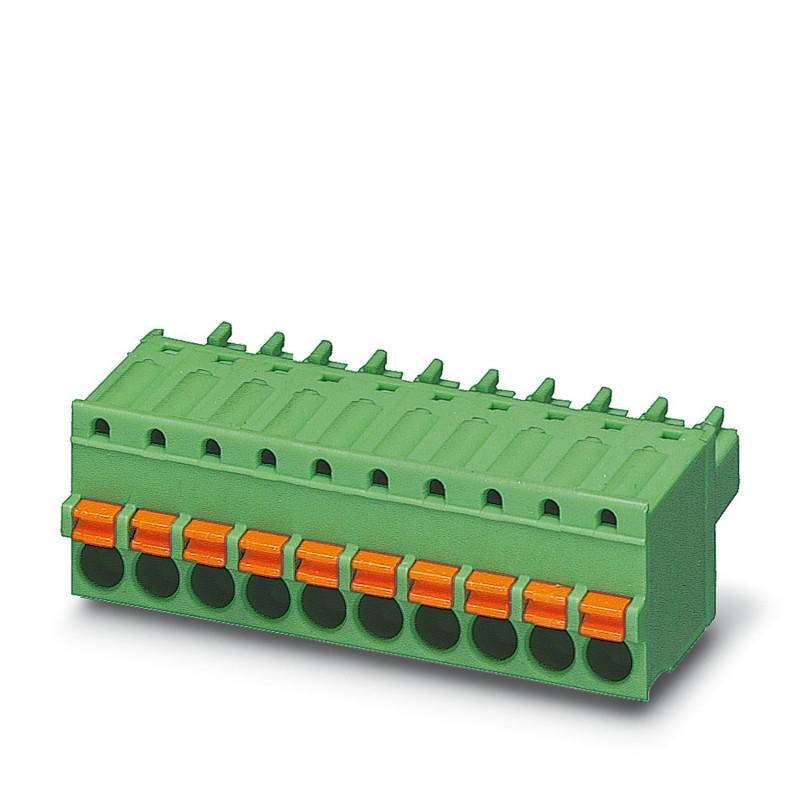

FK-MCP 1,5/ 2-ST-3,5GYAUBD5,6Q 1848406 PHOENIX CONTACT Connector for printed circuit board, nominal current:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FK-MCP 1,5/ 2-ST-3,5GYAUBD5,6Q 1848406 PHOENIX CONTACT Connector for printed circuit board, nominal current:..

FK-MCP 1,5/ 2-ST-3,5GYAUBD5,6Q

1848406

PHOENIX_CONTACT

50

Product on demand only, returns will not be accepted.

Connector for printed circuit board, nominal current: 8 A, number of poles: 2, pitch: 3.5 mm, connection type: spring clamp push-in, color: gray, surface, contacts: Gold

Connector for printed circuit board, nominal section: 1.5 mm², color: gray, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Female, number of potentials: 2, number of rows: 1, number of poles: 2, number of connections: 2, family of articles: FK-MCP 1.5/.. -ST, pitch: 3.5mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON MC 1.5, lock: without, fixing type: without, packaging type: boxed

More details


Connectors > Cable connector

PCB Connectors (PCC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $195.73
Unit price: $3.91
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Item Properties
Product TypePrinted Circuit Board Connector
Product FamilyFK-MCP 1.5/.. -ST
Product LineCOMBICON Connectors S
Number of poles2
Step3.5 mm
Number of connections2
Number of rows1
Number of potentials2
Clamping flangewithout
Data Maintenance Status
Article Review00
Electrical Properties
Nominal Current IN8 A
Nominal voltage UN160 V
Contact resistance1.6 mΩ
Sizing voltage (III/3)160 V
Dimensioning transient voltage (III/3)2.5 kV
Dimensioning voltage (III/2)160 V
Dimensioning Transient Voltage (III/2)2.5 kV
Nominal voltage (II/2)320 V
Dimensioning transient voltage (II/2)2.5 kV
Connection data
Connection technology
Connector SystemCOMBICON MC 1.5
Nominal Section1.5 mm²
Contact Connection TypeFemale
Blockade
Locking systemwithout
Clamping flangewithout
Connecting Conductors
Connection typePush-in spring connection
Connection Direction Driver/PCB0 °
Rigid conductor section0.14 mm² ... 1.5 mm²
Flexible conductor section0.14 mm² ... 1.5 mm²
AWG Conductor Section26 ... 16
Flexible conductor section with toe cap, without plastic sleeve0.25 mm² ... 1.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.25 mm² ... 0.5 mm²
Male gauge a x b / Diameter2.4 mm x 1.5 mm / -
Peel Length9 mm
Facts about toe caps without an insulated collar
Recommended crimp pliers1212034 CRIMPFOX 6
toe caps without insulating collar, according to DIN 46228-1Cross-section: 0.25 mm²; Length: 7 mm
Cross-section: 0.34 mm²; Length: 7 mm
Cross-section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross-section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross-section: 1 mm²; Length: 8 mm ... 10 mm
Cross-section: 1.5 mm²; Length: 10 mm
Facts about Insulated Collar Toe Caps
Recommended crimp pliers1212034 CRIMPFOX 6
toe caps with insulated collar, according to DIN 46228-4Cross-section: 0.14 mm²; Length: 8 mm
Cross-section: 0.25 mm²; Length: 8 mm
Cross-section: 0.34 mm²; Length: 8 mm
Cross-section: 0.5 mm²; Length: 8 mm ... 10 mm
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsPartially gilded
Metal surface of the terminal point (top layer)Tin (5 - 8 μm Sn)
Metal surface of the terminal point (interlayer)Nickel (2 - 3 μm Ni)
Metal surface contact area (top layer)Gold (0.8 Au)
Metal Surface Contact Area (Middle Layer)Nickel (2 - 3 μm Ni)
Material data - housing
Color (Housing)Grey (7042)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Material data: drive element
Color (Drive Element)Orange (2003)
Insulating materialPOM
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94HB
Dimensions
Dimension Schemeedyvovzxrs.jpg
Step3.5 mm
Width [w]7.9 mm
Height [h]12.4 mm
Length [l]21 mm
Mechanical testing
Connecting Conductors
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Checking for damage to conductors and loosening
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Repeated connection and disconnection
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Tensile Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value0.14 mm² / rigid / > 10 N
0.14 mm² / flexible / > 10 N
1.5 mm² / rigid / > 40 N
1.5 mm² / flexible / > 40 N
Forces when plugging in and unplugging
Test SpecificationDIN EN 60512-13-2:2006-11
ResultApproved Test
Number of cycles25
Plug-in force approx.7 N
Power when unplugging by pole approx.5 N
Resistance of the signs
Test SpecificationDIN EN 60068-2-70:1996-07
ResultApproved Test
Polarization & Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultApproved Test
Eye Exam
Test SpecificationDIN EN 60512-1-1:2003-01
ResultApproved Test
Dimensional Examination
Test SpecificationDIN EN 60512-1-2:2003-01
ResultApproved Test
Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 500 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 500 Hz)
Test duration per axis2 h
Test DirectionsX, Y, and Z axes
Durability Test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Bearable shock voltage at sea level2.95 kV
Contact Resistance R11.6 mΩ
Contact Resistance R21.6 mΩ
Plug Cycles100
Insulation Resistance Adjacent Poles> 5 MΩ
Climate Essay
Test SpecificationDIN 50018:2013-05
Corrosion fatigue1.0 dm3UNDER2in 300 dm3/40 °C/3 cycles
Thermal stress100 °C/168 h
Bearable AC voltage1.39 kV
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Electrical Testing
Thermal Test Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested4
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)160 V
Nominal transient voltage (III/3)2.5 kV
minimum value of air insulation distance - non-homogeneous field (III/3)1.5 mm
Minimum creepage line value (III/3)2 mm
Sizing Insulation Voltage (III/2)160 V
Nominal transient voltage (III/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)1.5 mm
Minimum creepage line value (III/2)1.5 mm
Sizing Insulation Voltage (II/2)320 V
Nominal transient voltage (II/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)1.5 mm
Minimum creepage line value (II/2)1.6 mm
Packaging Information
Type of packagingBoxed Packaging

ETIM for 1848406 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of poles (EF001391) 2
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Gold
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Grey
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 27 Mbytes
