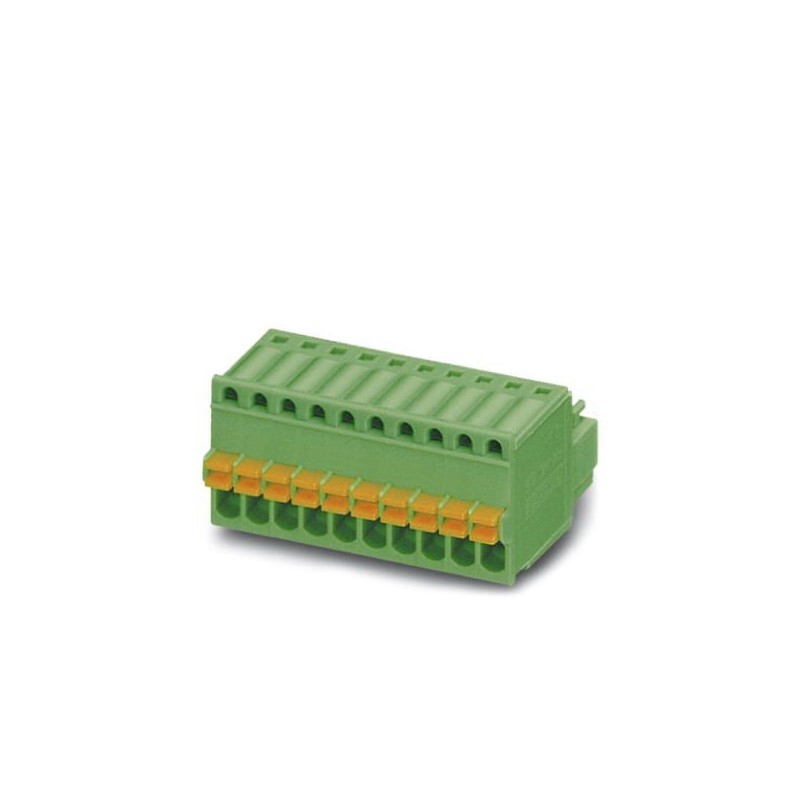

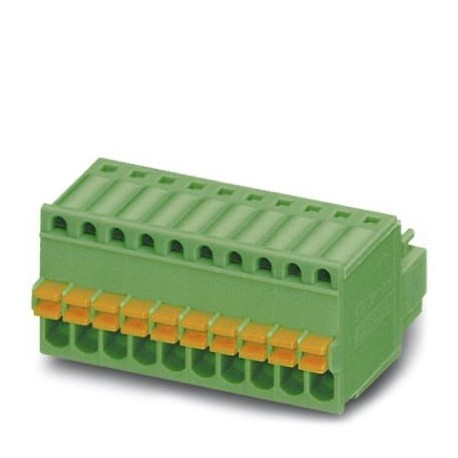

FK-MC 0,5/ 5-ST-2,5 GY 1883763 PHOENIX CONTACT Printed-circuit board connector
FK-MC 0,5/ 5-ST-2,5 GY
1883763
PHOENIX_CONTACT
50
Printed-circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1883763 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4017918362959 |
| Weight per Piece (excluding packing) | 2.930 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | PCB connector |
|---|---|
| Plug-in system | MICRO COMBICON - FK-MC 0,5 |
| Type of contact | Female connector |
| Range of articles | FK-MC 0,5/..-ST |
| Pitch | 2.5 mm |
| Number of positions | 5 |
| Connection method | Push-in spring connection |
| Locking | no |
| Number of levels | 1 |
Electrical parameters
| Rated current | 4 A |
|---|---|
| Rated insulation voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
Connection capacity
| Conductor cross section solid | 0.14 mm² ... 0.5 mm² |
|---|---|
| Conductor cross section flexible | 0.14 mm² ... 0.5 mm² |
| Conductor cross section AWG / kcmil | 26 ... 20 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.5 mm² |
| Cylindrical gauge a x b / diameter | - / 1.4 mm |
| Stripping length | 8 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Material data – actuating element
| Insulating material | POM |
|---|---|
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | HB |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Caption | Schematic representation – for additional information, see product range drawing in the Download Center |
| Length [ l ] | 19.5 mm |
| Width [ w ] | 13.1 mm |
| Height [ h ] | 11.75 mm |
| Pitch | 2.5 mm |
| Height (without solder pin) | 11.75 mm |
| Dimension a | 10 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
General product information
| Type of note | Notes on operation |
|---|---|
| Note | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Pull-out test
| Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
|---|---|
| 0.2 mm² / flexible / > 10 N | |
| 0.5 mm² / solid / > 20 N | |
| 0.5 mm² / flexible / > 20 N |
Air clearances and creepage distances
| Specification | IEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05 |
|---|---|
| Insulating material group | I |
| Voltage | 80 V |
| Rated insulation voltage (III/3) | 100 V |
| Rated insulation voltage (III/2) | 160 V |
| Rated insulation voltage (II/2) | 320 V |
| Rated surge voltage (III/3) | 1.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
Temperature cycles
| Specification | IEC 60999-1:1999-11 |
|---|---|
| Test current (minimum cross section) | 4 A |
| Test current (maximum cross section) | 6 A |
| Temperature cycles | 192 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440309eCl@ss 9.027440309
